  #1
Old 03-16-2018, 03:12 PM
Registered User

Join Date: Dec 2007
Posts: 4,693
Used compressed air to unstick brake caliper, only one caliper moved....

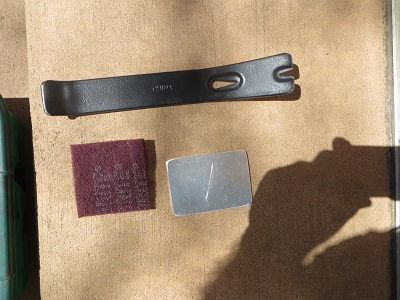

Working on the calipers on the 1991 560SEL. I'm using compressed air (brake caliper kit purchased from Kent at mercedes source). I placed a small board between the calipers then hit it with compressed air into a new meyle brake hose. Only one caliper moved.

Question, if I put the caliper back on the car and step on the brake pedal will it unstick the other caliper?
Attached Thumbnails
Used compressed air to unstick brake caliper, only one caliper moved....-560-brake-caliper-001.jpg   Used compressed air to unstick brake caliper, only one caliper moved....-560-brake-caliper-003.jpg
__________________
1991 560SEL, 1984 300DT
Reply With Quote
  #2
Old 03-16-2018, 03:48 PM
Diseasel300's Avatar
Registered User

Join Date: May 2016
Location: Texas Hill Country
Posts: 3,999
You can try unsticking it with the brake pedal, however if they're really that seized you may be better off with a reman caliper! You're going to have to tear that one down and rebuild it and hone the cylinders anyway.
__________________
'11 Honda Accord EX - "The Daily" 64K
'83 500SL Euro - "The Money Pit" 116K
'86 300SDL - "The Diseasel" 186K
The Diseasel Thread - Everything You Didn't Know You Wanted To Know
Reply With Quote
  #3
Old 03-16-2018, 03:55 PM
#TRUMP2020

Join Date: Jun 2012
Location: Virginia
Posts: 790
Quote:
Originally Posted by HuskyMan View Post
Working on the calipers on the 1991 560SEL. I'm using compressed air (brake caliper kit purchased from Kent at mercedes source). I placed a small board between the calipers then hit it with compressed air into a new meyle brake hose. Only one caliper moved.

Question, if I put the caliper back on the car and step on the brake pedal will it unstick the other caliper?
Using brake hydraulic pressure is a lot more powerful than compressed air. The caliper doesn't appear severely corroded or otherwise not worth rebuilding. So yes, I would mount it on the car.

Push the free piston back in and insert a new brake pad on that side only. Leave the stuck piston side empty with no brake pad, or you can use a very thin worn down brake pad if you have one. The new brake pad will prevent the free piston from travelling much, and the air gap on the other side allows the stuck piston room to move. The brake rotor will prevent it from shooting out and making a mess.
__________________
1998 E300 turbodiesel

America's Rights and Freedoms Are Not The Enemy!
Reply With Quote
  #4
Old 03-16-2018, 05:28 PM
Registered User

Join Date: Dec 2007
Posts: 4,693

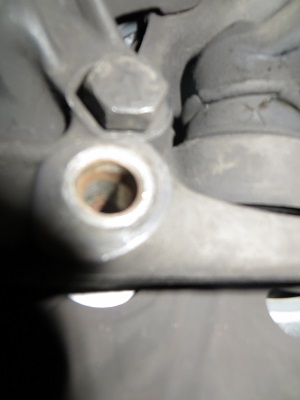

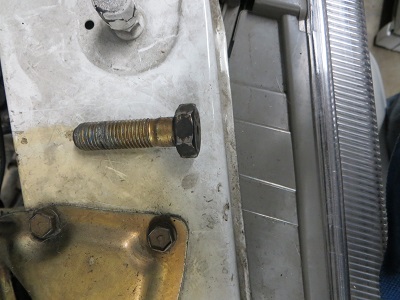

I need to reinstall the bolt that goes just underneath the calipers....

Should I use red, blue or green thread locker on this bolt?
Attached Thumbnails
Used compressed air to unstick brake caliper, only one caliper moved....-brake-caliper-bolt-001.jpg   Used compressed air to unstick brake caliper, only one caliper moved....-brake-caliper-bolt-003.jpg
__________________
1991 560SEL, 1984 300DT
Reply With Quote
  #5
Old 03-16-2018, 05:44 PM
Hit Man X's Avatar
I LOVE BRUNETTES

Join Date: Sep 2004
Location: FUNKYTOWN
Posts: 9,015
Thumbs up

Quote:
Originally Posted by Diseasel300 View Post
You can try unsticking it with the brake pedal, however if they're really that seized you may be better off with a reman caliper! You're going to have to tear that one down and rebuild it and hone the cylinders anyway.


This.
__________________
I'm not a doctor, but I'll have a look.

'85 300SD 244k
'87 300SDL 251k
'90 300SEL 325k
'91 560SEL 189k

Eight others from IH, BMW, GM, Ford, and Volvo.

Liberty will not descend to a people; a people must raise themselves to liberty.
[/IMG]
Reply With Quote
  #6
Old 03-17-2018, 11:43 AM
Registered User

Join Date: Jan 2018
Posts: 226
You may be able to get it loose, but as said above, be perpared to buy a new caliper, anyway. If it it that stuck, it is stuck due to rust between the piston and bore, which means rust pitting.
Reply With Quote
