Hello,

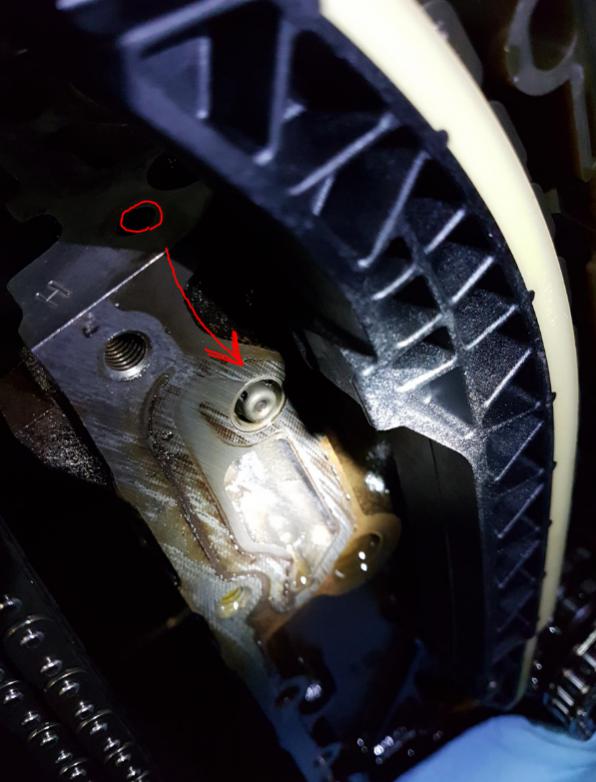

I notice there is an oil passage hole that isn't being used by the cylinder head. I'm wondering if anyone else here has noticed this as well and have proceeded to block off this hole with a screw?




Any opposition from the community on sealing this with an M8 screw and red Loctite? The question is why introduce oil to the head gasket here when all it will potentially do is cause leaks in the future?

Looking down the hole, it looks like there is some valve or splash shield that leads oil to the chain tensioner.

Attached Thumbnails



The small line embedded into the copper feeds oil onto the timing chain, I'd leave it be.

__________________

90 300TE 4-M
Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs 1st Gear Start

90 300CE 104.980
Milled & ported head, 10.3:1 compression
197° intake cam w/20° advancer
Tuned CIS ECU
4° ignition advance
PCS TCM2000, built 722.6
600W networked suction fan
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff

Upon closer inspection it does seem that the comes up through the hole, out that little line and onto the chain tensioner. Perhaps I'll leave it the way it is then.

Attached Thumbnails
