No reverse lights

Both reverse lights are non-functioning. Checked fuse and checked bulbs. Both are fine. Voltage at reverse light socket shows about 1.4v when not in reverse and about 2.5v when in reverse. All other lights function as they should. Is there some relay or something I need to check? Thanks.
__________________

1990 190E 2.6L
Reply With Quote
  #2
Old 11-12-2018, 12:40 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,706
Key on engine off, move the shift lever slowly from P to N. Is there a point at which the reverse lights come on? If so, you might need new shifter bushings.

The neutral start switch might be done or out of adjustment. I don’t know which wires to check for reverse though.

Sixto
98 E320s sedan and wagon
02 C320 wagon
Reply With Quote
  #3
Old 11-12-2018, 04:43 AM
party's Avatar
Unregistered User

Join Date: Jun 2016
Posts: 305
This thread shows the NSS and reverse light switch on the auto trans.

190Rev.net - Discussion for Mercedes-Benz 190E W201 Performance, Parts, Tuning and more
__________________
Watch him go!!! link

#dontdealwithkahlil
Reply With Quote
  #4
Old 11-12-2018, 08:23 AM
Kaiser

Join Date: Jun 2015
Location: Long Island, NY
Posts: 2
Neutral safety switch is most likely the issue. Easy fix.
Reply With Quote
  #5
Old 11-12-2018, 01:18 PM
Hit Man X's Avatar
I LOVE BRUNETTES

Join Date: Sep 2004
Location: FUNKYTOWN
Posts: 9,058
Thumbs up

Quote:
Originally Posted by customBenz View Post
Neutral safety switch is most likely the issue. Easy fix.


This.

I have had three crap out over the years, separate cars. 200k area is about its life span.
__________________
I'm not a doctor, but I'll have a look.

'85 300SD 244k
'87 300SDL 251k
'90 300SEL 325k
'91 560SEL 189k

Eight others from IH, BMW, GM, Ford, and Volvo.

Liberty will not descend to a people; a people must raise themselves to liberty.
[/IMG]
Reply With Quote
  #6
Old 11-21-2018, 12:55 PM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,927

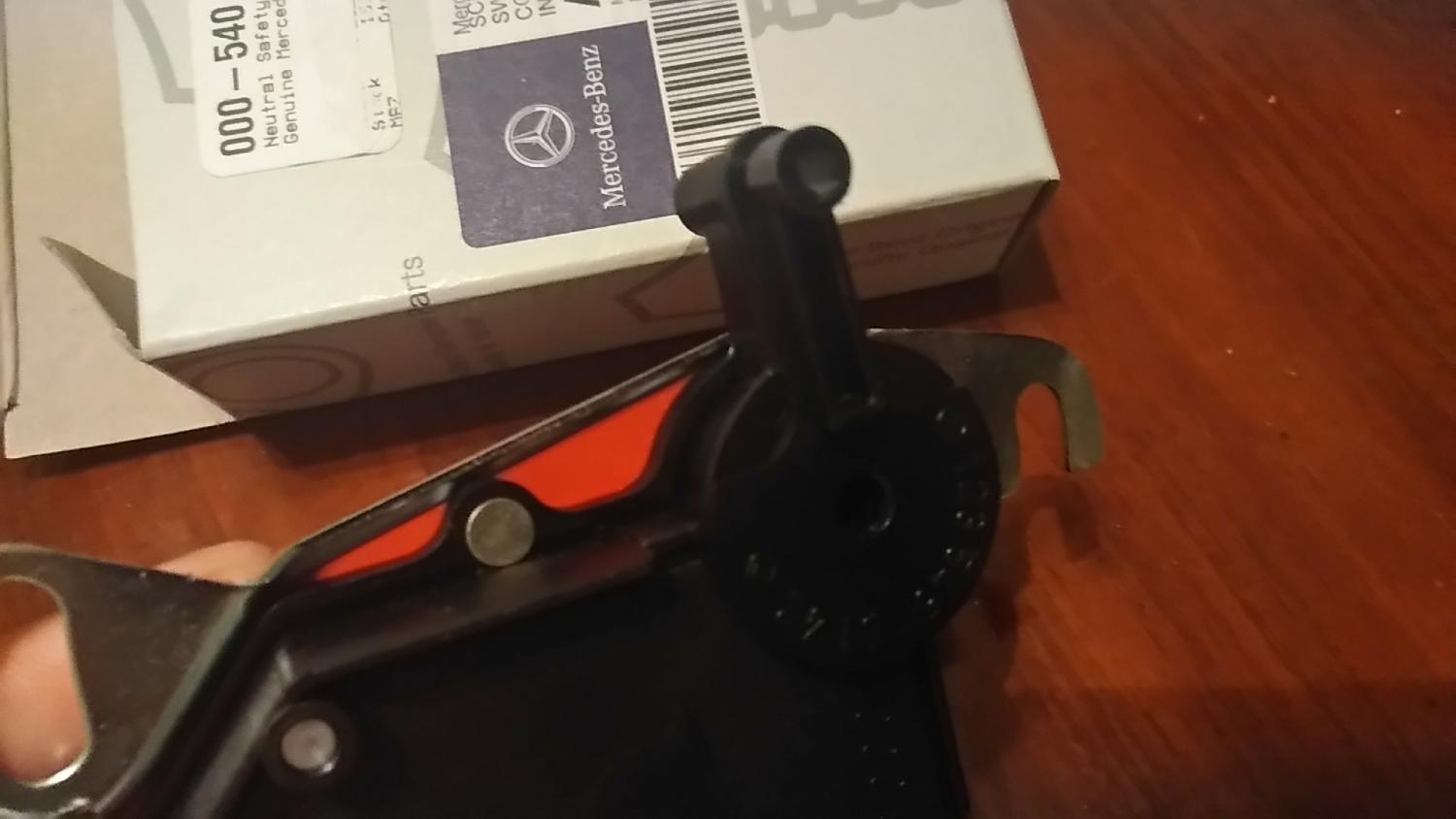

Ok, so got my neutral safety switch in. There is this small black lever on the top portion that moves. Any special instructions I should be aware of when installing?
Attached Thumbnails
No reverse lights-img_20181121_094627.jpg
__________________

1990 190E 2.6L
Reply With Quote
  #7
Old 11-21-2018, 01:17 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,706
That lever engages a slot in the bell crank. The transmission control shaft goes through the NSS without engaging it.

Sixto
98 E320s sedan and wagon
02 C320 wagon
Reply With Quote
  #8
Old 11-23-2018, 02:45 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 1,927
Quote:
Originally Posted by sixto View Post
That lever engages a slot in the bell crank. The transmission control shaft goes through the NSS without engaging it.

Sixto
98 E320s sedan and wagon
02 C320 wagon
Thanks. Installed it last and I have reverse lights again.
__________________

1990 190E 2.6L
