Old 04-22-2019, 11:22 AM
Registered User
Join Date: Feb 2015
Posts: 60
250S M108 Camshaft Problem - Help

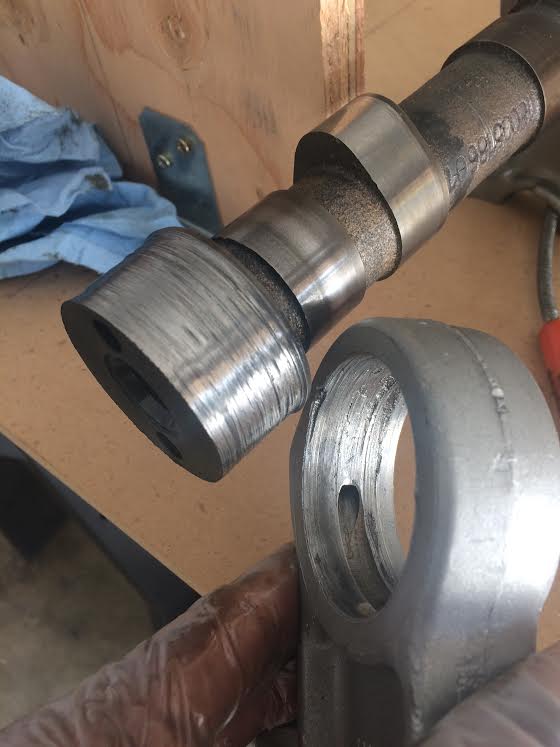

Can anyone help identify what is going on with my camshaft here? There is pronounced scoring of the bearing surface on the camshaft end (at Cyl 6/firewall) and the cam tower bearing.

Took head off because I had no readable compression on Cyl 6, and wanted to remove the the valve assemblies there. What I don't know is how long this has been like this. This is the first time I've taken the camshaft assembly off the cyl head.

I'm generally an optimist; but this does not look good. I don;t know whether to motor on as is Or do I need to find a replacement camshaft and bearing tower? (assuming the tower can't be repaired). All of the other camshaft bearing surfaces are good, same for the lobe surfaces.

Attached Thumbnails
250S M108 Camshaft Problem - Help-250s-m108-cam.jpg
Currently enjoying:
1967 250S - all manual with 4-spd on floor-- my Nifty 250
