95 W124 OVP Socket Part Numbers

I'm trying to replace my OVP socket with a new one after an aftermarket unit has damaged my socket and burned the plastic.


The main part number is 015 545 30 28, but there is a smaller 3 pin housing that goes into the main housing. I cannot find the part number for the 3 pin housing.


The main housing looks like this:

https://ufa.izap24.ru/tovar/24151014_razyem-mercedes-benz-w126-1979-1991-0155453028.html
https://cdn.izap24.ru/images/prodacts/sourse/248427/248427955_razyem-mercedes-benz-w126-1979-1991-0155453028.jpg

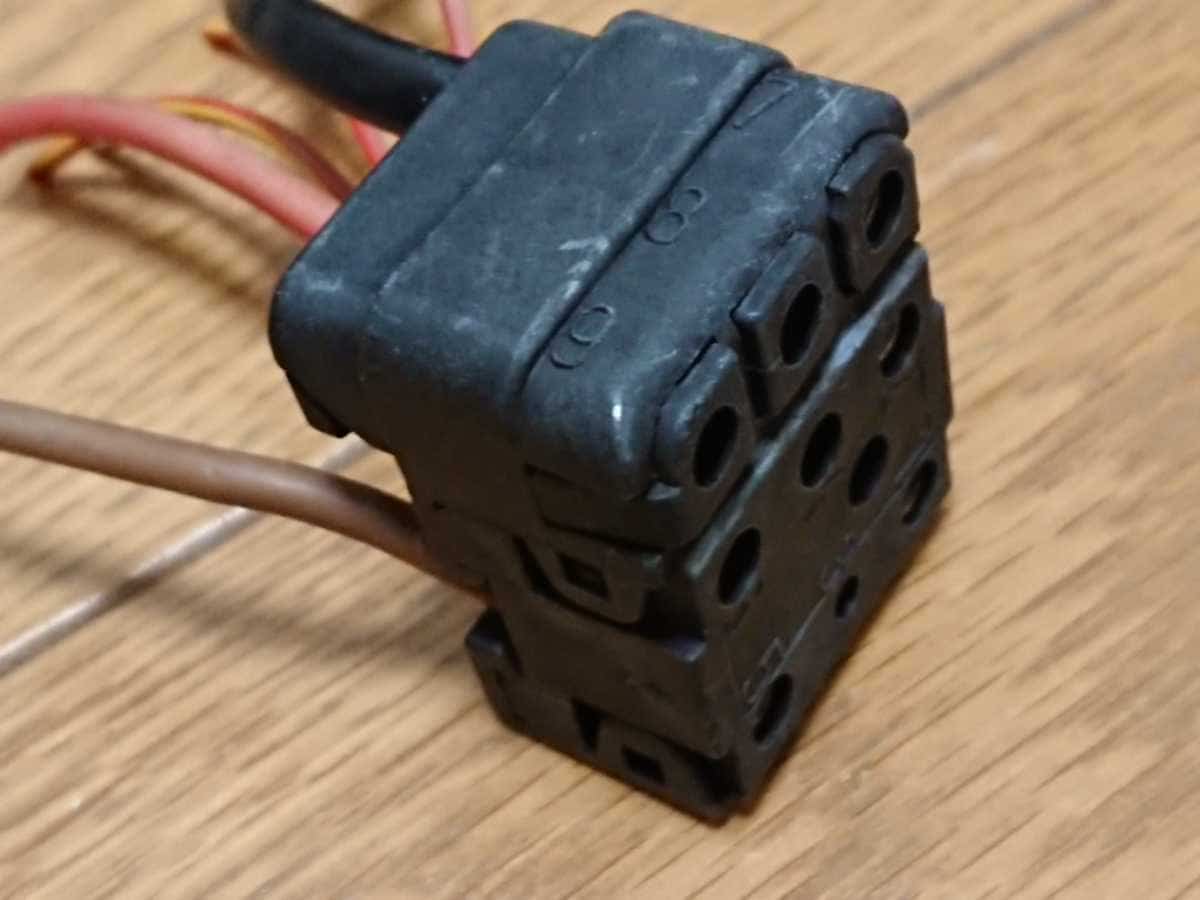

The main housing with the 3 pin housing inserted looks like this:

https://autoparts.beforward.jp/detail/Electrical-Parts/Other-Electrical-Components/PA82821175/?buynow=1
https://image-cdn.beforward.jp/autoparts/original/202212/84241215/i-img1200x900-1670322516yrjcyo272254.jpg
https://image-cdn.beforward.jp/autoparts/original/202212/84241215/i-img1200x900-16703225160y972t272254.jpg


The parts catalog only shows me the part number for the main OVP socket and the electrical pin bushings. The other socket might belong to the ABS unit wiring or something, but I cannot find the part in that catalog either.


Any help?

Reply With Quote
  #2
Old 04-17-2025, 10:44 PM
Registered User

Join Date: Sep 2007
Location: Calgary Alberta Canada
Posts: 2,045
Are you just looking for the silver connectors? I have some but they should be available from pelican.
__________________
92 e300d2.5t
01 e320
05 cdi
85 chev c10
Reply With Quote
  #3
Old 04-17-2025, 10:52 PM
Registered User

Join Date: Sep 2007
Location: Calgary Alberta Canada
Posts: 2,045
Electrical pin bushing 003-545-26-26-M22
__________________
92 e300d2.5t
01 e320
05 cdi
85 chev c10
Reply With Quote
  #4
Old 04-28-2025, 02:19 AM
Registered User

Join Date: Aug 2007
Location: Southern California
Posts: 405
No, I was not looking for the actual connector pin bushings. I was looking for this 3 pin socket with part number: 015 545 29 28

95 W124 OVP Socket Part Numbers-20250426_163322.jpg
95 W124 OVP Socket Part Numbers-20250426_163308.jpg

It slides into the main OVP socket housing. Difficult to find in the parts catalog, not drawn in the same relative area as the main housing. I had to pull the part myself from a parts car to find it.

95 W124 OVP Socket Part Numbers-20250426_163257.jpg
Reply With Quote
  #5
Old 06-01-2025, 01:03 PM
Registered User

Join Date: May 2025
Posts: 17
Quote:
Originally Posted by John5788 View Post
I'm trying to replace my OVP socket with a new one after an aftermarket unit has damaged my socket and burned the plastic.


The main part number is 015 545 30 28, but there is a smaller 3 pin housing that goes into the main housing. I cannot find the part number for the 3 pin housing.there is no 95 w124??


The main housing looks like this:

https://ufa.izap24.ru/tovar/24151014_razyem-mercedes-benz-w126-1979-1991-0155453028.html
https://cdn.izap24.ru/images/prodacts/sourse/248427/248427955_razyem-mercedes-benz-w126-1979-1991-0155453028.jpg


The main housing with the 3 pin housing inserted looks like this:

https://autoparts.beforward.jp/detail/Electrical-Parts/Other-Electrical-Components/PA82821175/?buynow=1
https://image-cdn.beforward.jp/autoparts/original/202212/84241215/i-img1200x900-1670322516yrjcyo272254.jpg
https://image-cdn.beforward.jp/autoparts/original/202212/84241215/i-img1200x900-16703225160y972t272254.jpg


The parts catalog only shows me the part number for the main OVP socket and the electrical pin bushings. The other socket might belong to the ABS unit wiring or something, but I cannot find the part in that catalog either.


Any help?
(95 W124 ???? ] W 140 maybe .
