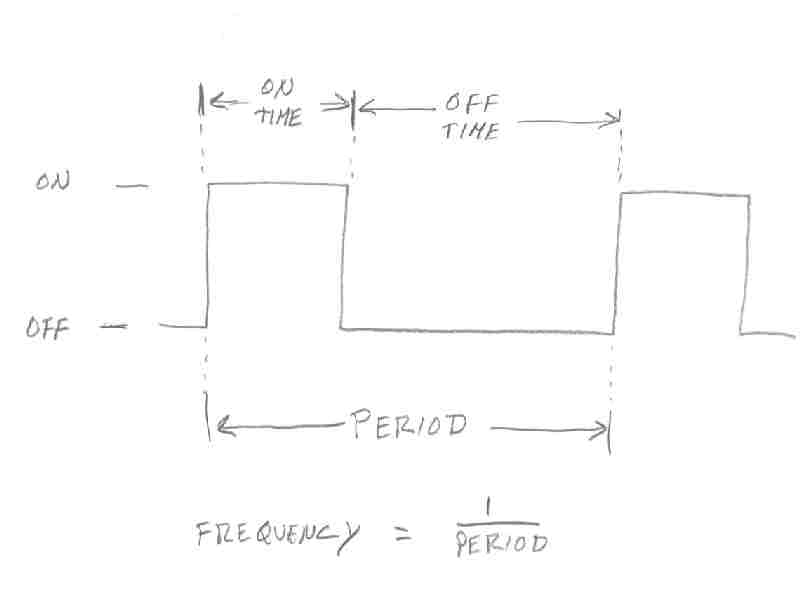

OK here it is in living color. One picture is worth how many words?
Attached Thumbnails
What the heck is "duty cycle"-dutycycle.jpg
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #32
Old 08-12-2002, 07:59 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,777
Yep.....
Reply With Quote
  #33
Old 08-12-2002, 08:47 PM
JimF's Avatar
'94 S500: only 793 sold!

Join Date: Mar 2001
Location: San Diego, CA
Posts: 1,925
Wow, doesn't anybody read . . .

What do you think is displayed in Steve's picture?
__________________
Regards . . . . JimF
-------------------
'94 S500 Cpe

Visit my Mercedes Web Page
Reply With Quote
  #34
Old 08-12-2002, 09:13 PM
Registered User

Join Date: Aug 2001
Location: secret
Posts: 3,044
How do I get into these messes??

So, frequency and duty cycle..... are/are not the same? An instrument that measures frequency will/will not/might measure duty cycle??
Reply With Quote
  #35
Old 08-12-2002, 09:29 PM
engatwork's Avatar
busy

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 11,776
Cap't - frequency and "duty cycle" are NOT the same. Think of turning a light switch on/off. Duty cycle is the percentage of time the light is on versus off and frequency would be the time from when you first turned it on, then turned if off and then on again. The second time you turned it on would be the end of the first "frequency" cycle. If you did the complete "cycle" in one second with 40% of the time the light is on and 60% of the time it is off that is 40% duty cycle. That's a good explanation for a mechanical engineer isn't it. Just go get a high quality Fluke with duty cycle capabilities and you will not go wrong.
__________________
Jim
Reply With Quote
  #36
Old 08-13-2002, 10:34 AM
Registered User

Join Date: Aug 2001
Location: secret
Posts: 3,044
At the risk of oversimplification....

Whatever meter I buy had better say "duty cycle" on the face somewhere?
Reply With Quote
  #37
Old 08-13-2002, 12:54 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,777
Re: At the risk of oversimplification....

Quote:
Originally posted by Cap'n Carageous
Whatever meter I buy had better say "duty cycle" on the face somewhere?
It may just say "Pulse" or "Pulse Width"
If so, it does measure Duty Cycle

Flukes don't get into Duty cycle until you get into their 80 Series meters....

*DUTY RATIO
The ratio of pulse width to repetition period. Also known as Duty Cycle.
Reply With Quote
  #38
Old 08-13-2002, 01:32 PM
Registered User

Join Date: Aug 2001
Location: secret
Posts: 3,044
Bingo!!

Now I can go to the store and shop with a clear idea of what I need!

A big ol THANKS to all!!
Reply With Quote
  #39
Old 08-14-2002, 04:06 AM
lorenzo
Guest

Posts: n/a
duty cycle

I was an electronic technician a long time ago, I don't know what your measuring, but here is a typical real-life duty-cycle reading: A cheap welder will say it has a 20% duty cycle. This means it will operate one fifth of the time without overheating, lets say 5 minutes on, and cool down for 25 minutes. A higher quality welder will have a 100% duty cycle, you could use it continuously without it getting too hot. Lorenzo in Great Falls.......
Reply With Quote
  #40
Old 08-14-2002, 03:45 PM
JimF's Avatar
'94 S500: only 793 sold!

Join Date: Mar 2001
Location: San Diego, CA
Posts: 1,925
Sorry Lorenzo but . . .

the duty cycle you described is 16% not 20%.

The formula is ON/ (ON + OFF): so 5 / (5 + 25) = 0.16 = 16%

Sorry about that but couldn't let it go. This thread has been a nightmare! So might as well add to it!

Cap'n may end up buying a Lexus!!
