MAS replacement

In another thread I talked about how my Check Engine Electronics light came on several times. I took the advice offerred here to change my gas cap, and took it to Autozone to have the OBD2 code read. The code was P0100, and Autozone printed out the following for me : " The PCH has determined that a malfunction exist in the electrical circuit for the Mass air flow or volume air flow sensor. This code points to possible wiring problem, ie, short to ground, short to power, or an open circuit"

Do I need to replace the MAS? Is this a easy do-it-yourself job with no special tools or procedures to follow?
__________________
RH

98 E300D
89 300SE
84 300SD sold
Reply With Quote
  #2
Old 03-04-2003, 06:18 PM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
Yes the air mass sensor is defective. Common fault, MB part number is 000-094-12-48 & list price is $ 240. OF course that is for your 1998 E300DT!
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #3
Old 03-04-2003, 06:54 PM
Registered User

Join Date: Dec 2002
Location: Houston
Posts: 131
Wow that was a quick response MBDoc. yes, that was for my 98 E300d. I just called one local MB dealer and they quoted $319 ! What is your source and is it oem?

Do I need to have special eqipment or follow special procedures to install? Thanks in advance
__________________
RH

98 E300D
89 300SE
84 300SD sold
Reply With Quote
  #4
Old 03-05-2003, 09:35 AM
inspector1
Guest

Posts: n/a
Unless cash is no issue with you, I would strongly suggest checking the circuitry and functionality of the unit before buying a new one. Really easy to do with a volt meter.
Reply With Quote
  #5
Old 03-05-2003, 12:38 PM
Registered User

Join Date: Dec 2002
Location: Houston
Posts: 131
Inspector are you suggesting there's an easy way to test the MAS to make sure it is not working? How do I check using voltmeter, is there a post you can refer me to? Thanks
__________________
RH

98 E300D
89 300SE
84 300SD sold
Reply With Quote
  #6
Old 03-05-2003, 12:52 PM
inspector1
Guest

Posts: n/a
This is a silly question, but to be sure, I'm guessing that this is the 98?
Reply With Quote
  #7
Old 03-05-2003, 01:18 PM
Registered User

Join Date: May 2001
Location: Charleston, SC
Posts: 237
RH: Don't forget to patronize our sponsors when possible. They sure provide a valuable free service to us all.
__________________
2008 GL320CDI 6K
1970 280SL 112K
1982 240D 210K (Sold)
1973 220D 220K (Sold)
1967 200D 160K (Sold)
1992 400E 139K (Sold)
1988 300E 148K (Sold)
1987 300D 257K (Sold)
1991 300E 108K (Sold)
1987 300E 131K (Sold)
1978 300D TMU (Sold)
1980 300D TMU (Sold)
MBCA Member
Reply With Quote
  #8
Old 03-05-2003, 01:36 PM
Registered User

Join Date: Mar 2003
Posts: 50
i can get one new for 200 dollars

hi i can get you a new one for 200 dollars
Reply With Quote
  #9
Old 03-05-2003, 05:12 PM
Registered User

Join Date: Dec 2002
Location: Houston
Posts: 131
CarolinaMBZ and Diesel1M : I am definitely buying from Fastlane.
Inspector : yes, for my 98 E300D.
__________________
RH

98 E300D
89 300SE
84 300SD sold

Last edited by richunters; 03-05-2003 at 05:49 PM.
Reply With Quote
  #10
Old 03-06-2003, 08:01 PM
Registered User

Join Date: Dec 2002
Location: Houston
Posts: 131
Well I got the part and installed the new MAS.

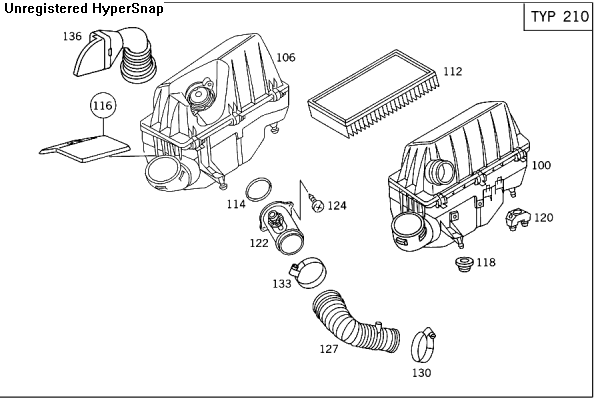

The MAS unit (122) is bolted onto the intake air filter cover on one end, and connects to the hose (127) going into the intake manifold on the other end.

A simple job: Pull out the electrical connector. Loosen the screw on the o-ring clamp (133). Open the air filter cover so you can twist the cover/MAS unit away from the hose. Remove the 2 screws holding the MAS to the Air filter cover, then pull MAS off. Remove, clean, and re-insert the the rubber seal ring (114) on to the air filter cover. Screw on new MAS. Insert open end of MAS into hose. Replace and clamp down the Air Filter Cover. Tighten the o-ring clamp to secure the connection to the hose. Re-connect the electrical connector. A 10 minute job done in 20 minutes.

Rather than waiting for the Check Engine light to reset (which probably takes a week) I drove to the local Autozone to have them Read and Erase the OBD2 code. The guy there knew only how to Read the code, so he thanked me for teaching him how to Erase. Heck, all I did was pointing out the Erase button on his tool!

I hope the attached image makes it clear to newbies like me DIY for the first time.
Attached Thumbnails
MAS replacement-mas.gif
__________________
RH

98 E300D
89 300SE
84 300SD sold
Reply With Quote
  #11
Old 03-06-2003, 08:20 PM
pesuazo's Avatar
Registered User

Join Date: Oct 2002
Location: Near Raleigh, NC
Posts: 580
I just wished the price and installation was the same for my car.
We have to buy the whole intake unit.
Attached Thumbnails
MAS replacement-air-mass-sensor.jpg
__________________
1999 Porsche 996 Carrera Convertible
1994 420E - SOLD
1986 300E - SOLD, what a car
609 Certified
