Oil Level Sensor Torque Spec.

Replaced the rubber gasket last summer, but still leaks.
Oil seems coming from connector itself (in the middle,
where you connect wire). I plan of replacing whole
sensor unit in my next oil change.

Does anyone know the correct torque for the sensor?
Do I need new bolts? Thanks.
__________________
joel

Prayers bring forth enlightenment.
Reply With Quote
  #2
Old 04-09-2003, 02:40 PM
Chris17H
Guest

Posts: n/a
What Model/year??
Reply With Quote
  #3
Old 04-09-2003, 02:41 PM
Registered User

Join Date: Jun 1999
Location: Surrey, Beautiful British Columbia, Canada
Posts: 750
89 300E, thanks.
__________________
joel

Prayers bring forth enlightenment.
Reply With Quote
  #4
Old 04-09-2003, 08:02 PM
Registered User

Join Date: Sep 2002
Location: Kingsport, TN
Posts: 375
Hi Joel,

if it is like my '87 420, the plastic piece is held by a clip and there is nothing to torque. You can see a picture on my post about it. The sensor inside the oil pan is held by 2 small bolts and I just tightened them without torque wrench.

It's the oil sump seal, that needs watching...

Reinhard Kreutzer
Reply With Quote
  #5
Old 04-09-2003, 08:37 PM
Registered User

Join Date: Jun 1999
Location: Surrey, Beautiful British Columbia, Canada
Posts: 750
hi RK, on the 300E it in the driver's side of the oil sump.
sensor is held by two bolts. Just did not want to over
and under tighten it, since it will have the same result - leak!
__________________
joel

Prayers bring forth enlightenment.
Reply With Quote
  #6
Old 04-10-2003, 01:59 PM
Registered User

Join Date: Jun 1999
Location: Surrey, Beautiful British Columbia, Canada
Posts: 750
well, anyone?
__________________
joel

Prayers bring forth enlightenment.
Reply With Quote
  #7
Old 04-10-2003, 02:25 PM
Registered User

Join Date: Sep 2002
Location: Kingsport, TN
Posts: 375
Hi Joel,

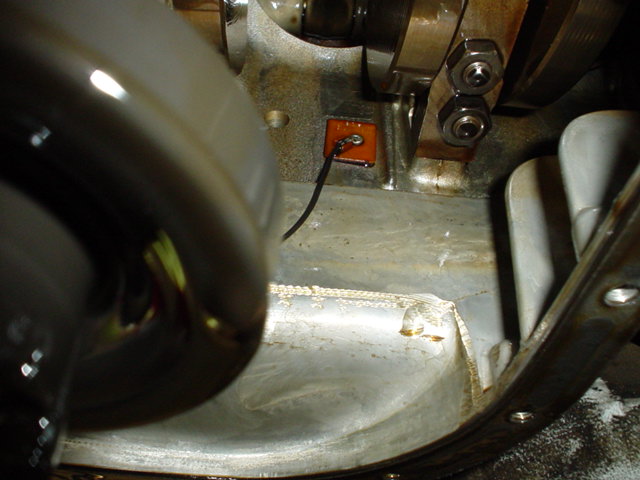

this is the inside of the sump with the sensor (red) going through the wall and being held at the outside by a clip. The wire goes to the sensor that reads the oil level.
Attached Thumbnails
Oil Level Sensor Torque Spec.-inside-sensor.jpg
Reply With Quote
  #8
Old 04-10-2003, 02:28 PM
Registered User

Join Date: Sep 2002
Location: Kingsport, TN
Posts: 375
and this is the sensor which is held by the 2 little screws. I don't think there is a torque value for this.

Reinhard Kreutzer
Attached Thumbnails
Oil Level Sensor Torque Spec.-oil-level-sensor.jpg
Reply With Quote
  #9
Old 04-10-2003, 07:02 PM
Registered User

Join Date: Jun 1999
Location: Surrey, Beautiful British Columbia, Canada
Posts: 750
thanks RK. great shots!
