What are these components in a 240D engine compartment?

What are these components in a 240D engine compartment?
Dear friends:

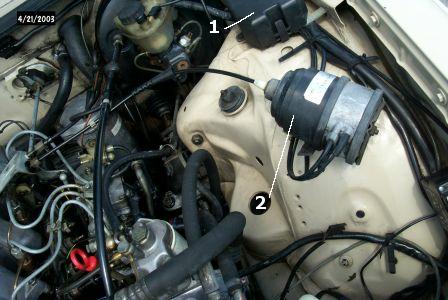

Please help identify the names and functions of the marked (1 & 2) components in the attached image.

Thanks a lot.

Eric
Attached Thumbnails
What are these components in a 240D engine compartment?-photos-014.jpg
Reply With Quote
  #2
Old 04-23-2003, 12:30 AM
Diesel on the brain

Join Date: Nov 2002
Location: Upstate Virginia
Posts: 566
#1 will probably come to me. It is a cover over some electrical things, and I can't remember off the top of my head what is in there. It might be the cruise control "stuff" (I won't say computer because it isn't).

#2 is the cruise control actuator. It has vacuum and wires connected to it, and actually is the part that pulls on the throttle linkage when you are using cruise control.

-Tad
Reply With Quote
  #3
Old 04-23-2003, 07:10 AM
LarryBible
Guest

Posts: n/a
Number one is a relay box.

Have a great day,
Reply With Quote
  #4
Old 04-23-2003, 12:43 PM
John F
Guest

Posts: n/a
ericnguyen,
Inside of number 1 are the test connectors for the glow-plugs.
You can check your glow-plugs with an ohm meter.
I recommend picking up a copy of "HAYNES" M/B 123 manual at the auto parts store. Good pictures and easy to follow steps.
I swapped out my rear axles using this manual. It took longer to jack the car; remove the wheels and drain the diff., than it did to change the axles!!
Good luck, John F.
'81 240D
Reply With Quote
  #5
Old 04-23-2003, 01:14 PM
LarryBible
Guest

Posts: n/a
No, the glow plug relay is at the lower right of the photograph, you can barely see the corner of it. Number one is a relay box.

Good luck,
Reply With Quote
  #6
Old 04-23-2003, 06:26 PM
Registered User

Join Date: Jan 2003
Location: USA
Posts: 699
Thank you all very much for all your help.

I have confirmed that #1 is the electrical relay for A/C compressor
and electrical aux fans and #2 is the cruise control actuator.

Best regards,

Eric
