1998 W210 Cruise control stalk/air bag removal PIX

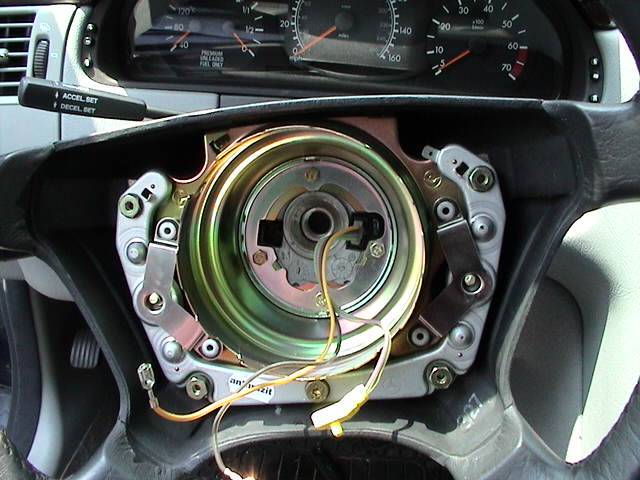

After the air bag is removed...
Attached Thumbnails
1998 W210 Cruise control stalk/air bag removal PIX-dsc00223.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #2
Old 05-29-2003, 02:22 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
10mm hex bolt in place

With the 10mm hex bolt in place
Attached Thumbnails
1998 W210 Cruise control stalk/air bag removal PIX-dsc00226.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #3
Old 05-29-2003, 02:23 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
Steering wheel removed

Once the 10mm hex bolt is removed the steering wheel can be removed
Attached Thumbnails
1998 W210 Cruise control stalk/air bag removal PIX-dsc00222.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #4
Old 05-29-2003, 02:26 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
Once the 2 screws are removed the black plastic horn dick can be removed
Attached Thumbnails
1998 W210 Cruise control stalk/air bag removal PIX-dsc00219.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #5
Old 05-29-2003, 02:27 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272

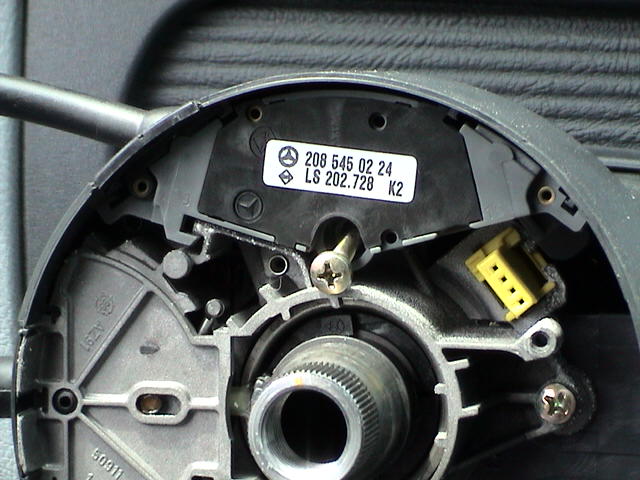

Remove the one screw holding the cruise control stalk in place. I didn't have to remove the whole wire harness because the stalk was just snapped out of place.
Attached Thumbnails
1998 W210 Cruise control stalk/air bag removal PIX-dsc00220.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #6
Old 05-29-2003, 02:29 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
Remove the one screw holding the cruise control stalk in place. Pull gently straight out..
Attached Thumbnails
1998 W210 Cruise control stalk/air bag removal PIX-dsc00221.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
Reply With Quote
  #7
Old 05-29-2003, 03:13 PM
Registered User

Join Date: May 1999
Location: Philadelphia, PA USA
Posts: 272
Tools needed

Tools needed
Attached Thumbnails
1998 W210 Cruise control stalk/air bag removal PIX-dsc00225.jpg
__________________
Peter L. House
1998 Sport E430
Azure Blue
110,000k Miles

1987 Oldsmobile Cutlass Salon
V8 Bucket Seats
Factory Moon Roof
