Brake reservoir part's name and part number?

Dear friends:

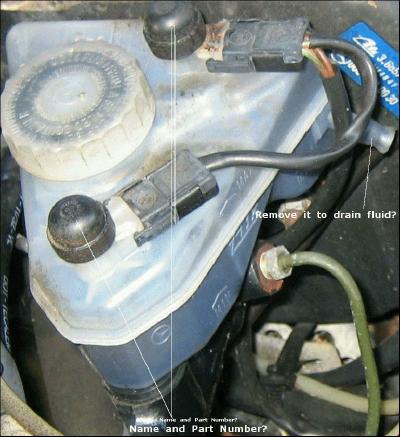

Please take a look at the attached image first.

I tried to flush and change the brake fluid on my 1984 300SD using Power Bleeder, which is designed to apply pressure on the fluid in the brake reservoir. However, the brake fluid kept leaking excessively through the 2 black rubber caps as shown in the image.

My questions are:

1) What are the proper name and part number for those 2 black rubber caps?

2) Before flushing, I sucked out the old black brake fluid from the brake reservoir. However it seems that my brake reservoir has 2 different "chambers", and I could only suck out the old brake fluid from the outer "chamber" because there's no hole through which I could suck out the fluid from in the inner "chamber". I saw a little plastic plug on the right side of the reservoir (in the image) and wondered whether this plug is used to drain the old fluid from the inner "chamber"?

I had changed brake fluid on a 1981 240D and did not encounter
a similar problem. Is there any big difference between 300SD and 240D brake reservoirs?

3) Have anyone tried to flush brake fluid using Power Bleeder on a 300SD? I'm still wondering whether 2 new rubber caps can keep the brake fluid from leaking under pressure from the Power Bleeder, because it looks like these 2 caps are only loosely attached to the brake reservoir.

Thank you very much for all your information!

Best regards,
Eric
Attached Thumbnails
Brake reservoir part's name and part number?-brake-reservoir.jpg
Reply With Quote
  #2
Old 06-12-2003, 09:32 AM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
The part number for the "seals" on the fluid reservoir is 000-431-90-87(2 required) & list is $4.70@.

Where you have the LINE asking if you drain the reservoir here IS for connecting the hydraulic line for CLUTCH operation on a stick shift car. Don't cut or you will need a complete reservoir.

AT dealer WE always remove the reservoir & flush it with clean brake fluid & re-install with new mounting grommets, MB number 000-431-09-50 @ $3.40 (2 required)
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #3
Old 06-13-2003, 06:29 AM
Registered User

Join Date: Jan 2003
Location: USA
Posts: 699
Dear M.B. DOC

Thank you very much for your exact and detailed info.

Best regards,

Eric
