560SEL M117 electrical question

Hello

I was driving my car home tonight. I believe the alternator went out because the dash board lights turned on, then I drove about 30 miles to get home, all the lights dimmed while I was still on the highway. I fortunately turned on to the main street near my house, when the car just died on me, I coasted to the gas station. Fortunately I was able to pull it to safety.

My friend was following me and we jumped the car, and drove it about 30 feet down the street and it died again.

My brother came with the range rover and pulled me home.

Do you think it is the alternator? Is there a high output alternator that bolts on?

Thanks,


Edit: someone just informed me that it might be the voltage regulator, but I dont know.
__________________
No Benzes in the stable at the moment, but itching for one again.

Former Mercedes in the Stable:
1983 300CD Turbo diesel 515k mi sold
1984 300CD Turbo Diesel 150 k mi sold
1982 300D Turbo Diesel 225 sold
1987 300D Turbo Diesel 255k mi sold
1988 300 CE AMG Hammer 15k mi sold
1986 300E Amg Hammer 88k mi sold
1992 500E 156k mi sold
etc.
Reply With Quote
  #2
Old 11-16-2003, 01:54 AM
MikeTangas's Avatar
Senior Member

Join Date: Apr 2000
Location: So. Cal
Posts: 4,430
How many miles on the alternator? Yes, I think you are having a little charging deficiency.

A regulator, or brushed, might do the trick and get you charging again, or it could be the belt, or it could be the alternator itself. At 179K miles it was a bad shaft bearing for me. I had the replace the alternator. I purchased mine from FastLane for about $151. A quick and easy installation.
__________________
Mike Tangas
'73 280SEL 4.5 (9/72)- RIP
Only 8,173 units built from 5/71 thru 11/72

'02 CLK320 Cabriolet - wifey's mid-life crisis

2012 VW Jetta Sportwagon TDI...at least its a diesel

Non illegitemae carborundum.
Reply With Quote
  #3
Old 11-16-2003, 08:22 PM
Registered User

Join Date: Apr 2002
Posts: 3,469
Probably 85k miles on the alternator. I will check to see if all the wires are connected, then i will look into the voltage regulator, then the alternator.

Thanks,
__________________
No Benzes in the stable at the moment, but itching for one again.

Former Mercedes in the Stable:
1983 300CD Turbo diesel 515k mi sold
1984 300CD Turbo Diesel 150 k mi sold
1982 300D Turbo Diesel 225 sold
1987 300D Turbo Diesel 255k mi sold
1988 300 CE AMG Hammer 15k mi sold
1986 300E Amg Hammer 88k mi sold
1992 500E 156k mi sold
etc.
Reply With Quote
  #4
Old 11-16-2003, 10:10 PM
hill's Avatar
Registered User

Join Date: Feb 2001
Location: Northern Calif Sacramento
Posts: 736
Quote:
Originally posted by omegabenz
Probably 85k miles on the alternator. I will check to see if all the wires are connected, then i will look into the voltage regulator, then the alternator.

Thanks,
Don't forget to have the battery charged and tested. A weak battery can cause alternators to burn out from heavy usage. Also the old style voltage regulators with points can weld themselves together damaging both the regulator and alternator.
__________________
Happy Benzing
Darryl, Hill
2005 SL55 AMG Kleemanized
1984 500 SEC
1967 W113 California Coupe
[SIGPIC]
https://picasaweb.google.com/lh/myphotos
Reply With Quote
  #5
Old 11-17-2003, 12:26 AM
Registered User

Join Date: Apr 2002
Posts: 3,469
The battery is a near new optima starting battery.
__________________
No Benzes in the stable at the moment, but itching for one again.

Former Mercedes in the Stable:
1983 300CD Turbo diesel 515k mi sold
1984 300CD Turbo Diesel 150 k mi sold
1982 300D Turbo Diesel 225 sold
1987 300D Turbo Diesel 255k mi sold
1988 300 CE AMG Hammer 15k mi sold
1986 300E Amg Hammer 88k mi sold
1992 500E 156k mi sold
etc.
Reply With Quote
  #6
Old 11-17-2003, 12:55 AM
Registered User

Join Date: Aug 2001
Location: Evansville, Indiana
Posts: 8,150
Brushes worn out on the alternator, my 300D did the same thing last month, although I managed to get to Autozone and buy another battery instead of getting towed home (didn't like the one that was in there, although I should have kept it).

you can either replace the voltage regulator or get new brushes installed in it by any automotive electrical shop. Voltage regulator is in the back of the alternator, held in by two screws. Just unscrew and pull it out. You will notice that the two carbon brushes are only 3-4 mm long. New regulator will have brushes 15 mm long or so!

Once you have the new brushes installed and regulator replaced, it will charge again.

You probably didn't notice that the alternator lamp was glowing dimly, just enough to notice it at night.

Peter
__________________
1972 220D ?? miles
1988 300E 200,012
1987 300D Turbo killed 9/25/07, 275,000 miles
1985 Volvo 740 GLE Turobodiesel 218,000
1972 280 SE 4.5 165, 000 - It runs!
Reply With Quote
  #7
Old 11-18-2003, 03:29 PM
Registered User

Join Date: Apr 2002
Posts: 3,469

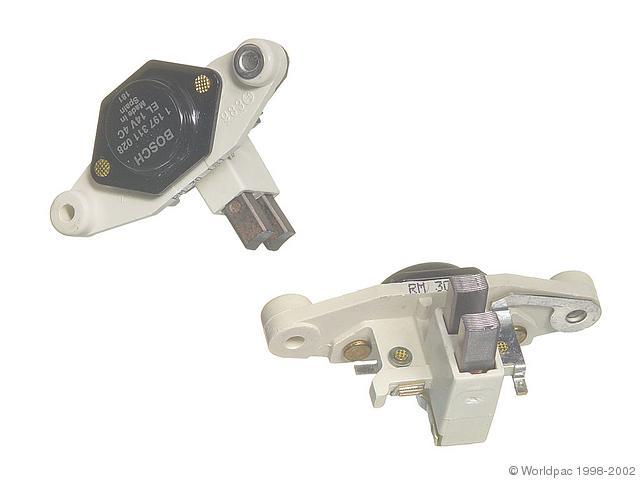

The voltage regulator has new brushes attached to it. Is this correct? See the picture, its from the fastlane picture.
