help: transmission fluid level check stick

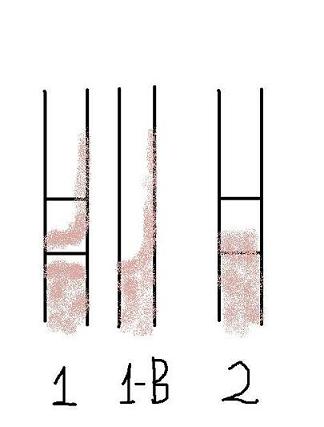

Instead of "2", I get "1". On the other side of the stick, it looks like "1-B".

Is it below min or above max?


After highway drive, I parked the car, left the engine on, waited 5 munites for tranny to cool, and then checked the level.

I cleaned the stick with Dunkin Donuts' napkin, inserted it fully, and then took it out.
Attached Thumbnails
help: transmission fluid level check stick-trannyfluid.jpg
Reply With Quote
  #2
Old 11-28-2003, 11:37 PM
Registered User

Join Date: Mar 1999
Location: Suwanee, GA, USA
Posts: 4,712
Looks perfect. I look for them to be between the lines when warm.

If too full, it will spit trans fluid out all over the rear of the trans.
__________________
Benzmac:
Donnie Drummonds
ASE CERTIFIED MASTER AUTO TECHNICIAN
MERCEDES SPECIALIST 11 YRS
Reply With Quote
  #3
Old 11-29-2003, 04:26 PM
Registered User

Join Date: Aug 2003
Location: MA
Posts: 764
But on the back side, the left part of the stick indicates BELOW MINIMUM.

When I measure right after I turn off the engine, the stick looks like pic 2 (no gap, horizontal line that distinguishes wet area and unwet area), but it is wet up to far above the max line.
Reply With Quote
  #4
Old 11-29-2003, 07:14 PM
rhgtara@localne
Guest

Posts: n/a
I had the same problem and washed the dipstick with laquer thinner which solved the problem
Reply With Quote
  #5
Old 11-29-2003, 08:22 PM
Mike Murrell's Avatar
Registered User

Join Date: Feb 2000
Posts: 2,351
Automatic transmission fluid level checking is done with engine idling; car parked on level surface. Best to do after driving for 15 miles or so in order to get it fully warmed up.

What MB make are you checking?
__________________
Mike Murrell
1991 300-SEL - Model 126
M103 - SOHC
"Fräulein"
Reply With Quote
  #6
Old 11-29-2003, 11:57 PM
Registered User

Join Date: Aug 2003
Location: MA
Posts: 764
1992 300D

By the way, how do I open the hood fully vertically?
Reply With Quote
  #7
Old 11-30-2003, 01:05 PM
rhgtara@localne
Guest

Posts: n/a
to open hood vertically go to hinge on drivers side, find little lever and pull down toward the right side, push hood up so the lever clears, then go to the other side, find the little lever and pull it down toward the drivers side, then push the hood up past the catch and all the way up. to lower pull the lever on the drivers side and it will come all the way down without touching the right side.
Reply With Quote
  #8
Old 12-01-2003, 10:43 AM
Registered User

Join Date: Aug 2003
Location: MA
Posts: 764
Thank you for your replies.

I went to dealer. At dealer, it looked like pic 2, but below minimum level.

I visited the dealer 3 times for tranny leakage. The last visit was about two weeks ago.
Now it is already below minimum.

It is not likely that the dealer top it off incorrectly after replacing tranny reaction valve two weeks ago.
So I think it leaks again, though I did not yet notice sign of leakage undercarriage.
Dealer also thinks it may be leaking again.

I am disappointed and very tired. At the 3rd visit, the dealer said "I know this is third time. This time, we will really fix the tranny leakage."

Last edited by ktlimq; 12-01-2003 at 11:58 AM.
