Source for Plastic Gears?

'91 500 SL ... power seat problems...

The electric motor that drives the seat's fore and aft movement connects via a flex rod to a "transmission" that is responsible for actually moving the seat. The transmission "failed" ... upon disassembly it was found that the flex rod connects to a spiral cut driveshaft via a hard plastic (nylon?) gear. The gear had cracked into two pieces and thus no power was being transmitted to the driveshaft; otherwise the transmission was flawless. The gear can easily be replaced.. if only it was available. M-B offers no repair parts for this transmission; cost for a new assembly is over $400.

Same situation for the seat's power head rest... the head rest motor drives a cable which in turn connects to a theaded rod assembly carrying the head rest. The metal threaded rod contains a plastic gear at the top.. and the gear has cracked and no repair parts are available from M-B.

Is there an alternate source for these gears?

I've contacted Odometer Gears Ltd (www.odometergears.com) and he's willing to have a go at this. However, there remains the question of strength... the seat travel gear must be capable of bearing the weight of an adult... and if his standard issue gear is too weak/soft, he states an injection molded process would be required. The mold for such could cost >$5K and the lead time might approach 2 months.

Any suggestions?
Reply With Quote
  #2
Old 03-01-2004, 02:24 PM
Registered User

Join Date: Aug 2001
Location: secret
Posts: 3,028
I have a failed right rear power window regulator that doesn't work because the plastic gear is stripped. I sure wish I could find one of those.
Reply With Quote
  #3
Old 03-01-2004, 03:00 PM
G-Benz's Avatar
College Soccer Dad

Join Date: Apr 2001
Location: Dallas/Fort-Worth
Posts: 5,711
Have you seen the gear? Pretty weird looking...

...also flexible, not rigid. Not an off-the-shelf part at all!

My driver's seat rear height adjustment has the same failure...was quoted $350 at the dealer for a new motor assembly.

Broken shaft caused one side to raise and lower only, leaving the entire seat listing to one side.

So for now, I adjusted until it sits level then disconnected the harness from the module under the seat until I can find a suitable replacement...
__________________
2009 ML350 (57K) - Family vehicle
2001 CLK430 Cabriolet (71K) - Wife's car
2001 BMW 325CI (145K) - My daily driver

1998 Mustang GT Convertible (146K) - Daughter's car
2012 Mustang V6 (42K) - ALSO Daughter's car
Reply With Quote
  #4
Old 03-01-2004, 03:50 PM
Registered User

Join Date: Jul 2001
Location: SoCal
Posts: 1,303
How about a pic? Next to a scale?

Steve
__________________
'91 MB 190E 2.3
'08 RAV4 Ltd 3.5
'83 Lazy Daze m'home 5.7
Reply With Quote
  #5
Old 03-01-2004, 05:08 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
How is this for a 140 chassis seat height picture:
Attached Thumbnails
Source for Plastic Gears?-seat-gears.jpg
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician

Last edited by stevebfl; 03-01-2004 at 05:13 PM.
Reply With Quote
  #6
Old 03-01-2004, 05:10 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844

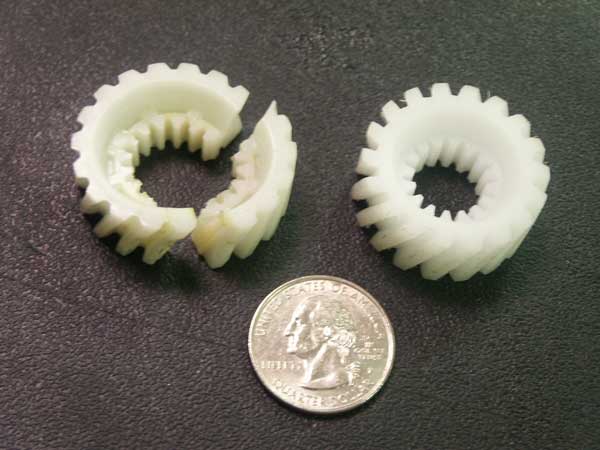

Or this for scale:
