Help! schematic switch Antenna

Here's the problem

My W124 doesn't come with switch antenna and I've installed it..

The results :
Switch and antenna work well... and i like it very much,
BUT when the radio goes off, the antenna still stays UP

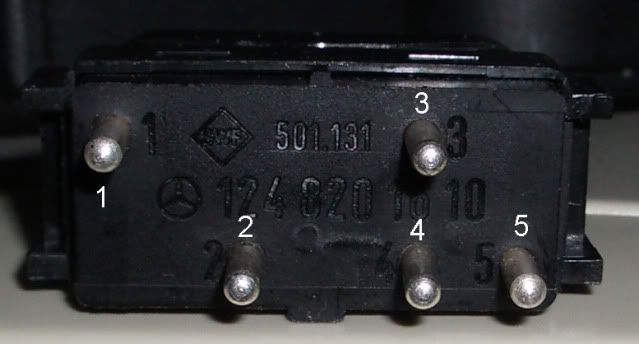

this is my schematic :



^
^
^

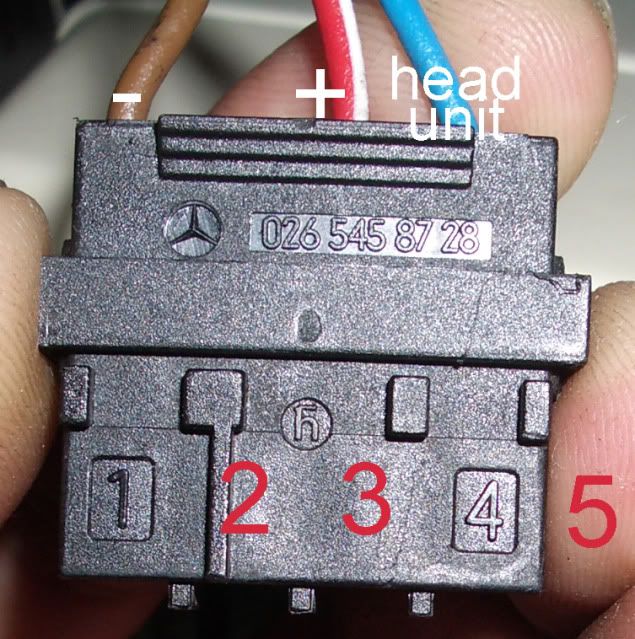

1 & 5 only for the light
2. lead to antenna ( red wire )
3. battery (+)
4. lead to antenna (Trigger / blue wire)

anyone can help me ?

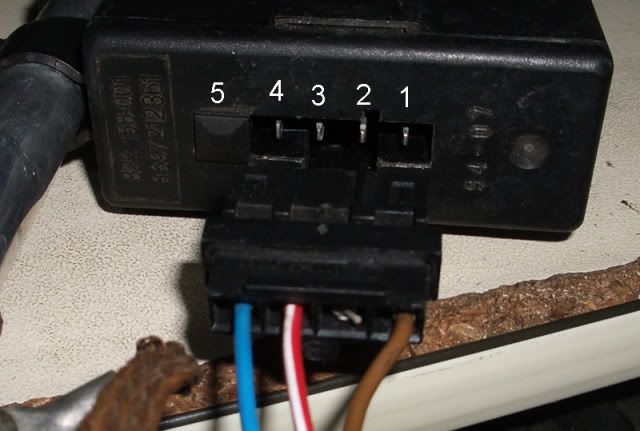

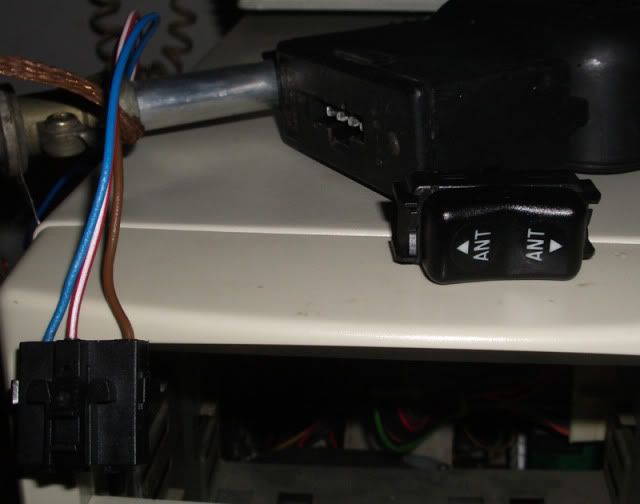

here's another pictures which maybe you can help me to figure it out...

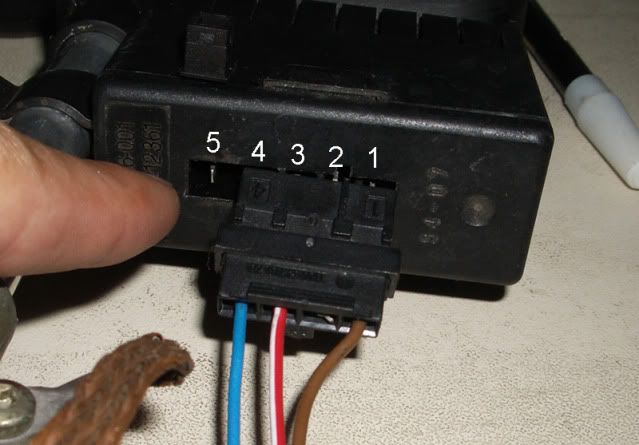

Antenna connector,
without switch antenna requires only 3 wires, right? (1,3 and 4)

and still 2 wires not connected... (2 and 5)
my question, are these 2 wires necessary to be used in order to make switch working properly?








Thanks folks...!!
