116 back seat removal

I want to remove the back seat and redo the stuffing (add some foam to the very back) for the season.
How does the back seat remove?

Thanks, BTW, I missed you all. You rock even when I've been gone for 7 months!

__________________
Ginny in Denver-ish
78 300SD, 265K (mine)
Reply With Quote
  #2
Old 03-22-2011, 09:07 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
I don't have a manual for a 116, but both of may cars rear seats come out the same way.

At the bottom of the front of the seat bottom there are two buttons, press in and lift up. This will take some effort, but it should come out. Then remove the tree bolts holding the seat back on and lift up, it should pop off.

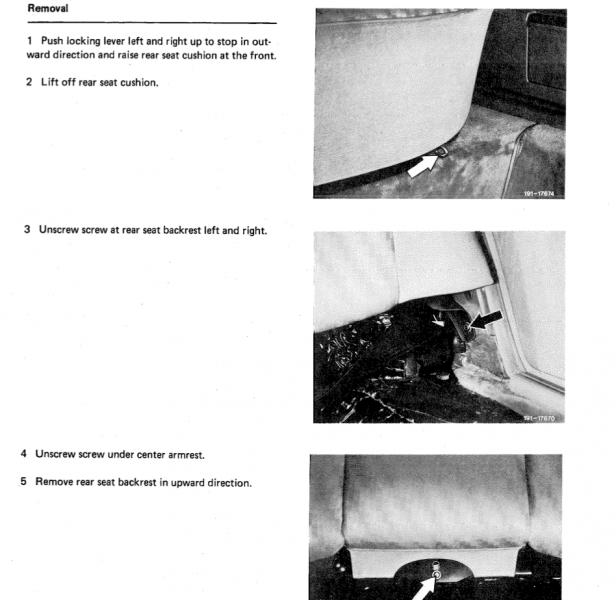

The attachments are for a 126.
Attached Thumbnails
116 back seat removal-screen-shot-2011-03-22-9.04.11-pm.jpg   116 back seat removal-screen-shot-2011-03-22-9.05.18-pm.jpg
__________________
83 SD

84 CD
Reply With Quote
  #3
Old 03-22-2011, 10:46 PM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,632
Seems like there may be a fastener inside the armrest cubby too.

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
