#1
04-13-2011, 03:17 AM
|
|||
|
|||
|
Driveshaft refresh visuals

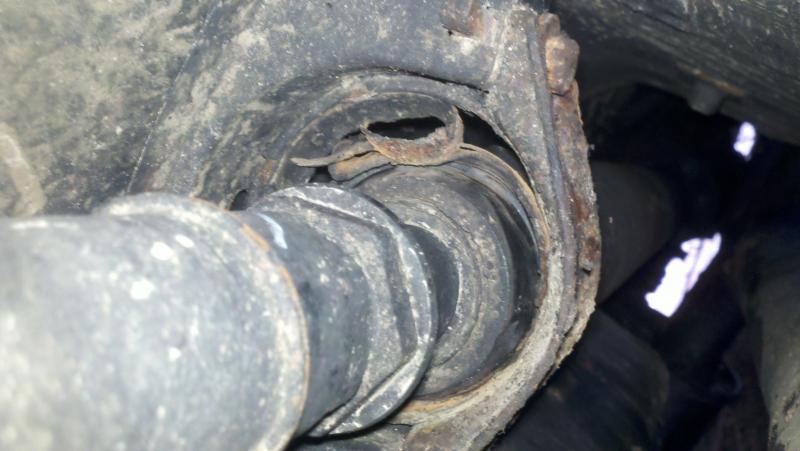

I had some knocking sounds coming from under the car, first while turning to start to climb this one particular hill, then more aggressively at the top of a different hill after letting off the pedal. Limped home, ruled out the front end, looked at the driveshaft and there we have it. Centering bearing support completely detached, split joint nut boot split in half.
Time for the driveshaft refresh! Once I got the thing out of the car a few things became clear. I should've left the center support in place, pried harder on the flex disc and focused more on compressing the driveshaft, instead of disconnecting as much as possible and try to coax the thing out. Also, I had no problem using a pipe wrench on the split joint nut after I dropped the back half of the exhaust, which, btw, the P.O. had welded a straight pipe, instead of a rear muffler, to the body... and out came the hacksaw! It needs to be replaced. Center bearing was shot and the centering bushings which both chipped/cracked so I replaced them, did the flex discs, and threw in that tranny mount that's been kicking around. The U-joint was stiff and is definitely wearing in one spot but I don't have the resources to do anything about it right now. The centering bushings were a pain to get out... not my best work. Anyways, here's a few visuals of the project. Enjoy! ~b
__________________
1981 300SD 310+k - R.I.P. Maeby
|
|
#2
04-13-2011, 03:22 AM
|
|||
|
|||
|
A few more. Here you can see my handy work with the old bushings. Also check out the dampener. There's an arrow that corresponds to a notch on the driveshaft yoke, and it's weight seems compensated for I'm guessing by the 2 holes drilled in the rubber. Neat.
~b
__________________
1981 300SD 310+k - R.I.P. Maeby
|
|
#3
04-13-2011, 04:23 AM
|
||||
|
||||
|
Now isn't that a fun job!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior  Don't leave that there - I'll take it to bits!
|
|
#4
04-13-2011, 12:31 PM
|
|||
|
|||
|
You definately got your money`s worth out ot those parts.
 .must b the originals since 81. Charlie
__________________
there were three HP ratings on the OM616... 1) Not much power 2) Even less power 3) Not nearly enough power!! 240D w/auto Anyone that thinks a 240D is slow drives too fast. 80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
|
|
#5
04-13-2011, 01:31 PM
|
||||
|
||||
|
What Car did you do the work on?
When you get around to he here is some of the U-joint threads: My U-joint Repair thread http://www.peachparts.com/shopforum/showthread.php?t=293976 U-Joint http://www.peachparts.com/shopforum/showthread.php?t=124491&highlight=U-joint Tightening Drive Shaft Collar Nut http://www.peachparts.com/shopforum/showthread.php?p=2575372&highlight=U-joint#post2575372
__________________
84 300D, 82 Volvo 244Gl Diesel
|
 |
