Firewall leak

Hello all,

I'm having trouble sourcing a leak inside my CD. When washing my car or driving in the rain, I'm getting a persistent leak aft of the glovebox. I've leak tested every drain and they seem to work fine. I've checked behind the battery and there was no corrosion to speak of. I think the leak is coming from the exterior of the firewall panel (scuttle panel) and not the fresh air vents. I directed my water hose right on that metal panel around the windshield wiper and sure enough water made its way into the cabin.

I removed this panel to find water sitting there underneath the wiper motor. Is there a drain here, and if so, how do I clear it? When pouring a cup of water down in this section of the firewall, it seemed to drain fine and I think the water drain right over the transmission. However, when there is more water than it can handle it backs into the passenger side footwell.

One other thing. Water gets into this section through the cut out just above the wiper nut. When I removed the panel there was foam underneath the whole perimeter of the panel, and there seemed to be missing foam that was lining the same cut out above the hole for the wiper motor.

Could this missing foam be the source of my problem? Does it hold back water just enough for proper draining?

Someone please help.

Reply With Quote
  #2
Old 05-05-2013, 07:15 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Not sure exactly where the foam you mention goes.

The epc doesn't show anything.

I would think there is a drain, sounds as if its clogged too, but can't help in it's precise location.

Poke around in the area where it would seem logical to be.
__________________
83 SD

84 CD
Reply With Quote
  #3
Old 05-05-2013, 10:05 AM
ytmtnman's Avatar
Still going

Join Date: Jul 2006
Location: Acworth, NH
Posts: 277
From recollection, there are plastic drains at each windshield wiper arm. They collect water and drop in another drain at the bottom of that bulkhead. I think that the output the water from the large rubber tubes in the firewall under the hood.
My plastic drains were clogged up tight.
__________________
I could not own any MB without the help from you...fellow forum members.


83 300td 207,XXX
Reply With Quote
  #4
Old 05-05-2013, 10:24 AM
ytmtnman's Avatar
Still going

Join Date: Jul 2006
Location: Acworth, NH
Posts: 277
Correction.....they are under the air cowls too.

[IMG][/IMG]
__________________
I could not own any MB without the help from you...fellow forum members.


83 300td 207,XXX
Reply With Quote
  #5
Old 05-05-2013, 10:53 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,042
Look for rusted through holes in the tunnels that the hood springs retract into.

I suppose it is possible for it to rust through below were the Water goes in that Front Grill at the bottom of the Windshield.

Below the Battery try is another rust area, even on the Fire Wall
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #6
Old 05-05-2013, 10:54 AM
Registered User

Join Date: Oct 2007
Location: St. Thomas PA
Posts: 957
There are two drains in each hood hinge pocket, upper and lower. Make sure they're both free, and then check the drain in the fender liner at the rear of the front wheels.
__________________
'83 300D, 126K miles.
Reply With Quote
  #7
Old 05-05-2013, 02:33 PM
Registered User

Join Date: May 2013
Location: Tampa
Posts: 12










Reply With Quote
  #8
Old 05-05-2013, 02:44 PM
jay_bob's Avatar
Control Freak

Join Date: Oct 2011
Location: Columbia, SC
Posts: 3,941
Check this video on you tube
Chasing Interior Water Leaks in Older Mercedes Benz by Kent Bergsma - YouTube

Kent describes this exact problem and how to cure it
__________________
The OM 642/722.9 powered family
Still going strong
2014 ML350 Bluetec (wife's DD)
2013 E350 Bluetec (my DD)

both my kids cars went to junkyard in 2023
2008 ML320 CDI (Older son’s DD) fatal transmission failure, water soaked/fried rear SAM, numerous other issues, just too far gone to save (165k miles)
2008 E320 Bluetec (Younger son's DD) injector failed open and diluted oil with diesel, spun main bearings (240k miles)

1998 E300DT sold to TimFreeh
1987 300TD sold to vstech
Reply With Quote
  #9
Old 05-05-2013, 02:46 PM
Registered User

Join Date: May 2013
Location: Tampa
Posts: 12

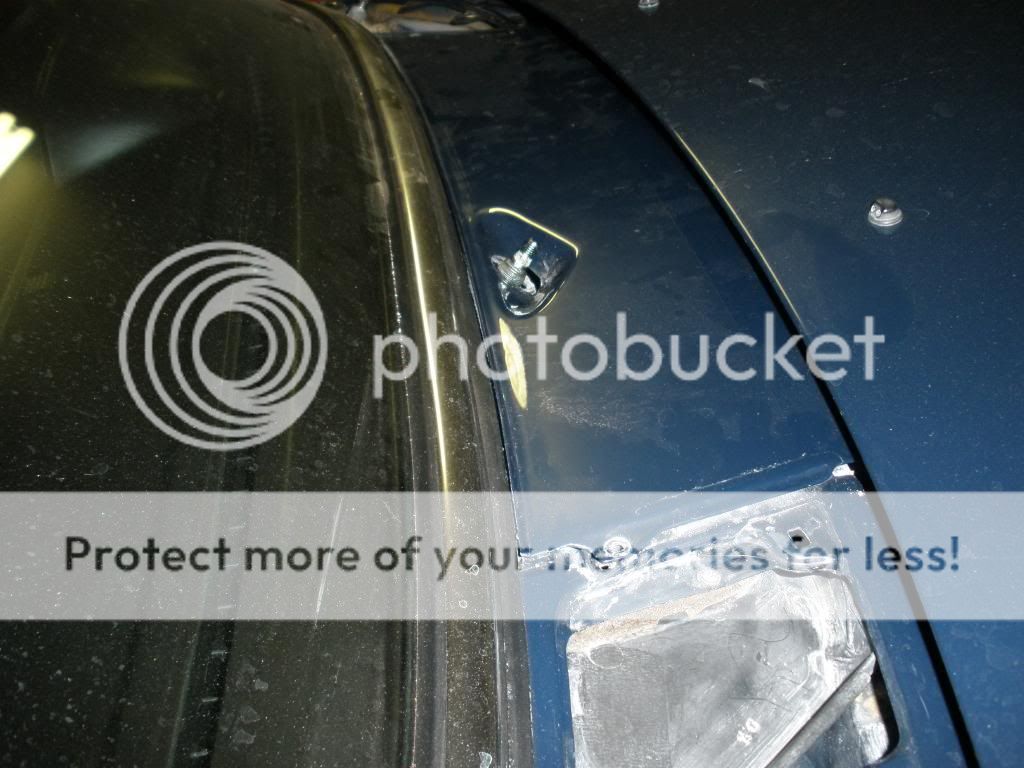

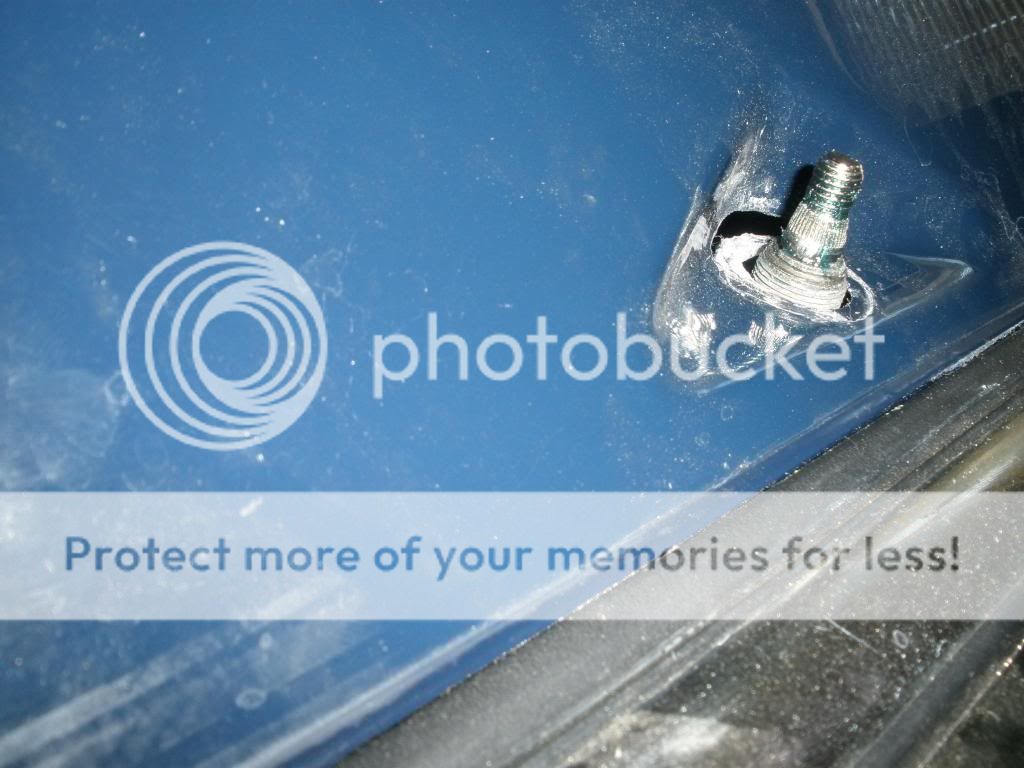

Thanks for the response. I know it's hard to visualize my lengthy description. Above are some photos of the area I'm talking about.
