Vacuum pump failure W210 606

We have been hearing ticking rattling noises coming from the front of the engine on our '96 E300 for more than a year now. Have ask every mechanic their opinion and the general consensus was that to put the car in a shop to diagnose would cost hundreds of dollars and that it is best to wait until a problem occurs. Yesterday a problem occurred; while driving cross country engine code P0400 came up, no power brakes, AC vents stopped working, shifting became hard and the intake manifold valves stopped working.

We were lucky, I hope, that the vacuum pump did not explode. The engine actually sounds better now without the rattle and the car ran great for the rest of the trip home, more that 7 hours of running hard. (The car now has 215,000 miles on the dial.)

Passed through Dallas, hours later, where there are several parts suppliers. One had the part that I now have.

Questions: Do you guys have any suggestions or advise on replacing the pump? Are there any hidden issues that I should be aware of? Is removing the radiator required?

Will post pictures of the work in progress.

Thank you in advance for your input.

Reply With Quote
  #2
Old 05-30-2014, 02:19 PM
Registered User

Join Date: Aug 2009
Location: MN
Posts: 1,253
Release the tension on the drive belt.
Remove the upper radiator hose and the P/S pump's pulley.

After that, it is a 15 minute job... the second time you do it.
__________________
Greg
2012 S350 BlueTEC 4Matic
2007 ML 320 CDI
2007 Leisure Travel Serenity
2006 Sprinter 432k
2005 E320 CDI
1998 SLK230 (teal)
1998 SLK230 (silver)
1996 E300D 99k, 30k on WVO
Previous:
1983 240D, on WVO
1982 300D, on WVO
1983 300CD, on WVO
1986 300SDL 237k, 25k on WVO (Deerslayer)
1991 350SDL 249k, 56k on WVO - Retired to a car spa in Phoenix
1983 380 SEC w/603 diesel, 8k on WVO
1996 E300D 351k, 177k on WVO
Reply With Quote
  #3
Old 05-30-2014, 03:05 PM
Registered User

Join Date: Jul 2004
Location: Barrington, RI
Posts: 5,874
P0400 is EGR malfunction. Would that be thrown with a failed VP?
__________________
14 E250 Bluetec "Sinclair", Palladium Silver on Black, 153k miles
06 E320 CDI "Rutherford", Black on Tan, 171k mi, Stage 1 tune, tuned TCU
91 300D "Otis", Smoke Silver, 142k mi, wastegate conversion

19 Honda CR-V EX 61k mi
Fourteen other MB's owned and sold
1961 Very Tolerant Wife
Reply With Quote
  #4
Old 05-30-2014, 03:08 PM
Registered User

Join Date: Jul 2001
Posts: 902
Remove each bolt on the vac pump a little at a time so that the pump will come off parallel to the block rather than getting cocked. So loosen all bolts round the perimeter a bit at a time, round and round. It can get cocked if the roller on the pump is on the high side of the "timing device" or ramp which the roller rides on. That sentence will make sense after you see what's under the pump... Hopefully your roller and the bearings are still intact. If not, put a magnet on your oil drain plug and collect as many balls as possible. I still have one ball floating around somewhere in my engine, but I've been driving like that for more than 100K.

Rgds,
Chris W.
'95 E300D, 420K
__________________
Objects in closer are mirror than they appear.
Reply With Quote
  #5
Old 05-30-2014, 03:35 PM
Registered User

Join Date: Aug 2009
Location: MN
Posts: 1,253
Quote:
Originally Posted by shertex View Post
P0400 is EGR malfunction. Would that be thrown with a failed VP?
The EGR flaps are actuated with vacuum motors.
__________________
Greg
2012 S350 BlueTEC 4Matic
2007 ML 320 CDI
2007 Leisure Travel Serenity
2006 Sprinter 432k
2005 E320 CDI
1998 SLK230 (teal)
1998 SLK230 (silver)
1996 E300D 99k, 30k on WVO
Previous:
1983 240D, on WVO
1982 300D, on WVO
1983 300CD, on WVO
1986 300SDL 237k, 25k on WVO (Deerslayer)
1991 350SDL 249k, 56k on WVO - Retired to a car spa in Phoenix
1983 380 SEC w/603 diesel, 8k on WVO
1996 E300D 351k, 177k on WVO
Reply With Quote
  #6
Old 05-30-2014, 03:47 PM
Registered User

Join Date: Jul 2003
Location: Northern Virginia
Posts: 1,078
Tip: Degrease and clean the pump and surrounding area before you start removing bolts.
Tip: Clean off every bit of old gasket material.
Tip: Clean out the bolt head sockets, if that's the style you have.
Tip: Replace every bolt in exactly the same hole.
Tip: Get a good torque wrench and use it
__________________
2009 E320 Bluetec 117,000
1995 E300D 306,000 Sold
1996 Ford Taurus LX 130,000 Sold
1985 300TD Still 225,000 Sold
2016 Ford Fusion 24,900
Reply With Quote
  #7
Old 05-30-2014, 04:17 PM
Registered User

Join Date: May 2004
Location: Texas
Posts: 275
Thank for the help.
What is the torque pressure?
Heading out to start the R of R&R now.
Reply With Quote
  #8
Old 05-30-2014, 04:51 PM
Registered User

Join Date: Aug 2009
Location: MN
Posts: 1,253

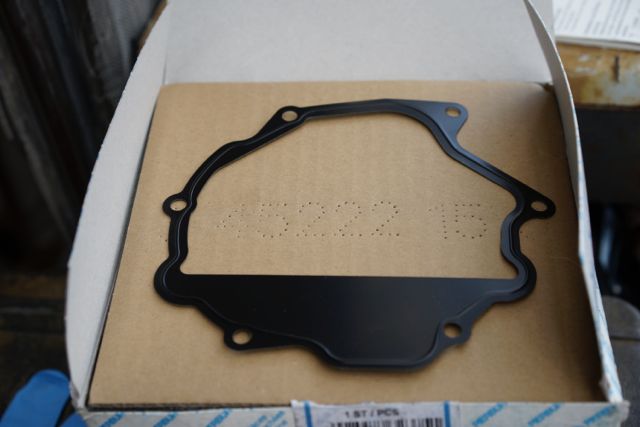

... and a new gasket.
__________________
Greg
2012 S350 BlueTEC 4Matic
2007 ML 320 CDI
2007 Leisure Travel Serenity
2006 Sprinter 432k
2005 E320 CDI
1998 SLK230 (teal)
1998 SLK230 (silver)
1996 E300D 99k, 30k on WVO
Previous:
1983 240D, on WVO
1982 300D, on WVO
1983 300CD, on WVO
1986 300SDL 237k, 25k on WVO (Deerslayer)
1991 350SDL 249k, 56k on WVO - Retired to a car spa in Phoenix
1983 380 SEC w/603 diesel, 8k on WVO
1996 E300D 351k, 177k on WVO
Reply With Quote
  #9
Old 05-30-2014, 05:41 PM
Registered User

Join Date: May 2004
Location: Texas
Posts: 275

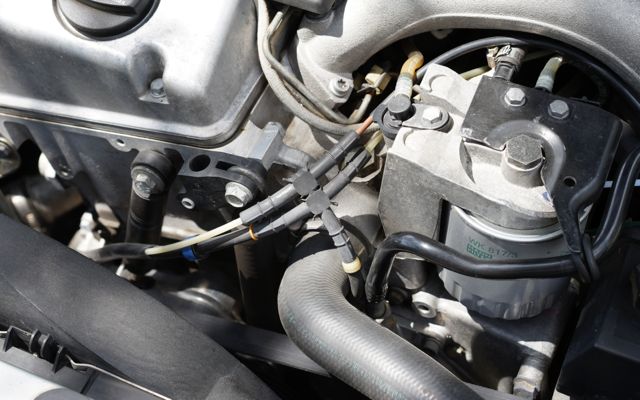

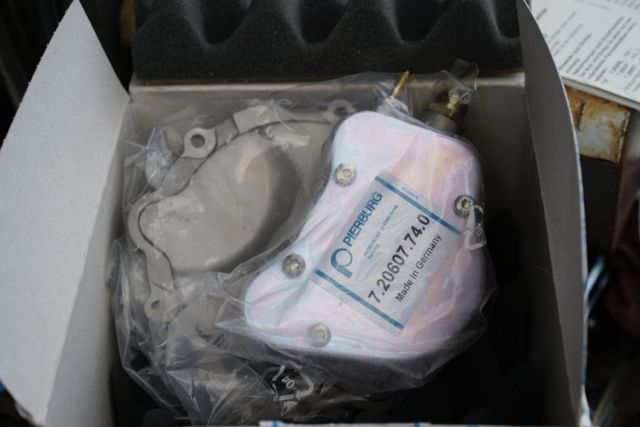

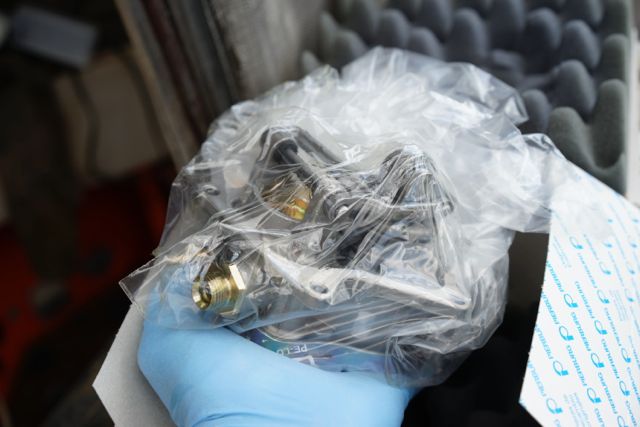

Click image for larger version

Name:	1.jpg
Views:	262
Size:	38.4 KB
ID:	121902

Click image for larger version

Name:	2.jpg
Views:	603
Size:	56.6 KB
ID:	121903

Click image for larger version

Name:	3.jpg
Views:	171
Size:	35.1 KB
ID:	121904

Click image for larger version

Name:	4.jpg
Views:	168
Size:	38.5 KB
ID:	121905

Click image for larger version

Name:	5.jpg
Views:	165
Size:	43.3 KB
ID:	121906
Reply With Quote
  #10
Old 05-30-2014, 07:02 PM
Registered User

Join Date: May 2004
Location: Texas
Posts: 275

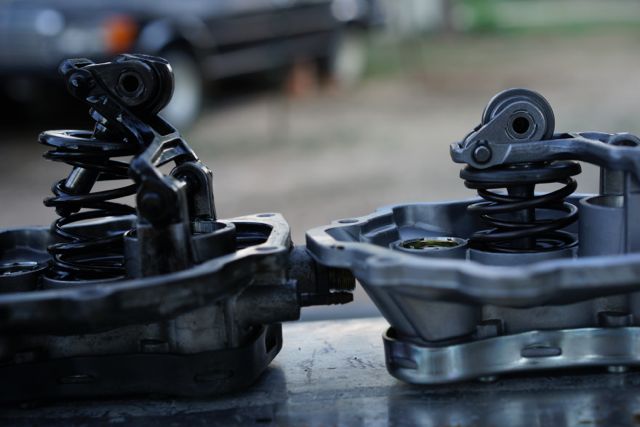

Click image for larger version

Name:	1.jpg
Views:	272
Size:	45.1 KB
ID:	121908

Click image for larger version

Name:	2.jpg
Views:	321
Size:	49.0 KB
ID:	121909

Click image for larger version

Name:	3.jpg
Views:	196
Size:	29.9 KB
ID:	121910

Click image for larger version

Name:	4.jpg
Views:	245
Size:	46.9 KB
ID:	121911

Click image for larger version

Name:	5.jpg
Views:	269
Size:	39.9 KB
ID:	121912
Reply With Quote
  #11
Old 05-30-2014, 07:03 PM
Registered User

Join Date: May 2004
Location: Texas
Posts: 275
Click image for larger version

Name:	6.jpg
Views:	670
Size:	40.5 KB
ID:	121913
Reply With Quote
  #12
Old 05-30-2014, 07:21 PM
Registered User

Join Date: May 2004
Location: Texas
Posts: 275
wear on stroke curve?

Click image for larger version

Name:	DSC06616.jpg
Views:	315
Size:	51.7 KB
ID:	121914

Assembly instructions say that the stroke curve must be replaced if worn.

Is the stroke curve in the above picture worn enough to require replacement of the lifting cam?
Reply With Quote
  #13
Old 05-30-2014, 07:35 PM
engatwork's Avatar
Registered User

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 13,647
That looks pretty bad. Can you "feel" it?
__________________
Jim
Reply With Quote
  #14
Old 05-30-2014, 07:38 PM
Registered User

Join Date: Jul 2003
Location: Northern Virginia
Posts: 1,078
deep end

You're now in the deep end, but you're not alone. I seem to remember a thread here about replacing that wavy piece on the cam. At least it didn't grenade the engine.
__________________
2009 E320 Bluetec 117,000
1995 E300D 306,000 Sold
1996 Ford Taurus LX 130,000 Sold
1985 300TD Still 225,000 Sold
2016 Ford Fusion 24,900
Reply With Quote
  #15
Old 05-30-2014, 07:40 PM
uberwasser's Avatar
1979 & 1985 300D's

Join Date: Oct 2012
Location: Tucson, AZ
Posts: 1,097


Flat spot on the wheel that rides on the cam?

Could be that it seized up and rubbed itself flat on the cam, damaging it too.

__________________
1979 300D 040 Black on Black - 1985 300D Maaco job (sadly sprayed over 199 Black Pearl Metallic) on Palamino

http://i.imgur.com/LslW733.jpg

The Baja Arizona Oil Burners Send a message if you'd like to join the fun
Left to Right - UberWasser, Iridium, Stuttgart-->Seattle,, mannys9130

Visit the W123 page on iFixit for over 70 helpful DIY guides!
Reply With Quote
