G'day Folks,

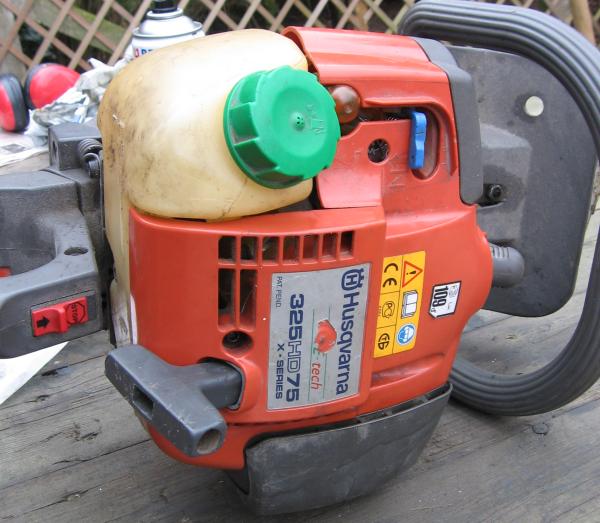

Spring has sprung and the sodding hedges will need hacking back to submission soon and my petrol hedge trimmer is on the blink!



I had trouble starting it - but I got that fixed.

I then had trouble getting the engine to move the cutters.

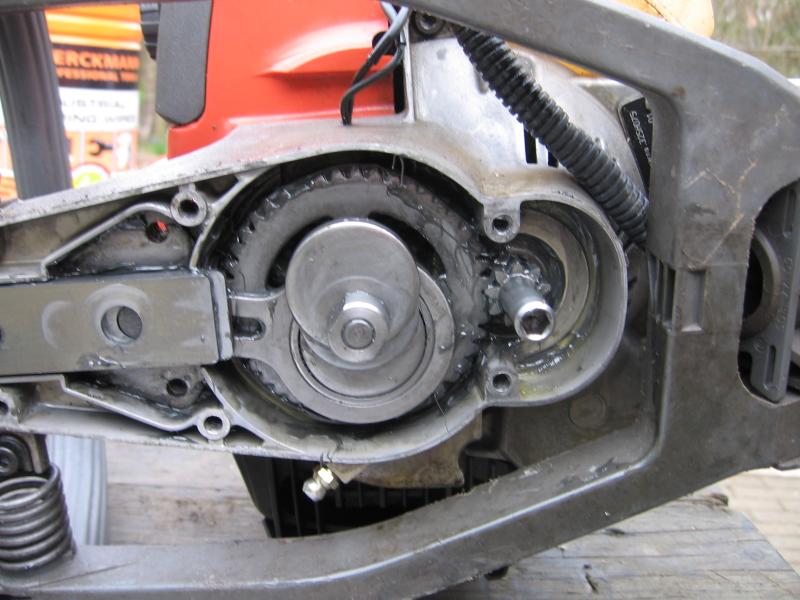

I took it to bits and got the mechanism working nicely...



I still need to get some small roller bearings but that's not the problem that I'm faced with now.

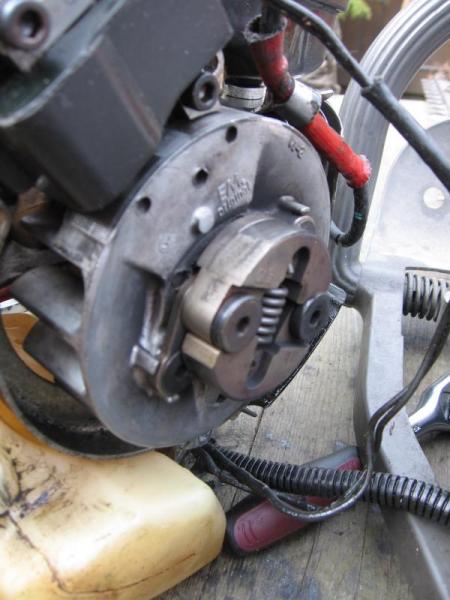

The centrifugal clutch bit seems not to engage properly. Here's a picture of the male end on the end of the motor

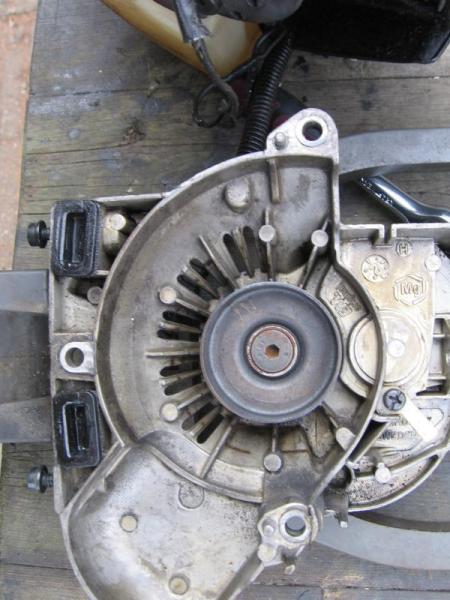

and here's a picture of the female bit that this expanding bit slots into...



The weird thing is that I don't see any abrasive material / lining. In an automotive situation I'd expect to see something like that...


Question 1

Does anyone know if there should be some sort of lining in there?

Question 2

Is there a dedicated online source for the parts for these machines - 'cos I can't find one that lists bits online.


Any other help will be greatly received.

Attached Thumbnails



__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

all the small clutches like that I've seen have had a little brake pad type material on them. I dont know what husqvarna does though, they've done things kinda their own way, but I do like them

__________________
hum.....
1987 300TD 311,000M Stolen. Presumed destroyed

Lined clutches have pretty much gone by the wayside. Some premium lines may still use them, as they are quieter than their unlined counterpart.

You need more grease in the gearbox.

If the engine fails to develop enough power to move the blades, check the spark arrestor in the muffler for carbon deposits.

There's no lining on any of the similar chainsaw clutches I have ever seen.

__________________
80 300SD (129k mi) 82 240D stick (193k mi)77 240D auto - stick to be (153k mi) 85 380SL (145k mi) 89 BMW 535i 82 Diesel Rabbit Pickup (374k mi) 91 Jetta IDI Diesel (155k mi) 81 VW Rabbit Convertible Diesel 70 Triumph Spitfire Mk III (63kmi)66 Triumph TR4a IRS (90k mi)67 Ford F-100 (??)

X2
Best run some emery over the surfaces of the clutch to break the glaze.
Do it perpendicular to the direction of slip. Clean all lube off the surfaces.

__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving

every small engine i have worked on had some type of lining on it. i did mostly work on high end construction equipment.

have you tried sticking a screw driver between the two halves of the the clutch to make sure it hasnt siezed together?

__________________
have no worries.....President Obama swears "If you like your gun, you can keep it

I don't own a Husky trimmer, but exercising my Google-fu...

Searching on the model number, I find what looks like a parts list:
http://www.husqvarna.com/ddoc/HUSI/HUSI2002_AAaa/HUSI2002_AAaa__1062756-61.pdf

Searching on a part number from that document - for example, 537 04 01-01 - I find many web sites that at least claim to be selling the parts. More work would be required to find out if any particular vendor actually has a specific part in stock, or could obtain it in a reasonable time. If you need a part, then I wish you luck in identifying a "real" vendor who can provide satisfactory customer service.

Sometimes it helps to reformat the part number without spaces/dashes (537040101 for the above example).

Here's a couple I use:

Lawn Mower Parts

Husqvarna Parts

Lawn Mower Parts, Small Engine Parts & Much More! | PartsTree.com - Briggs, MTD, Toro, Cub Cadet, Husqvarna, Troy-bilt...

Lawn Mower Parts | Snapper | MTD | Honda | Sears | Exmark | Scag | Ariens | Cub Cadet | Toro | Simplicity | Hustler | Grasshopper | Murray

I have a Husky chainsaw and when fixing the chain oiler, I was reading and they recommended replacing the clutch / drive assy periodically which I never did. It might have been in the Husky manual.

Thank you all for an outstanding response!

I knew I could count on you. You're all bloody fabulous.
