Ball Joint Boot replacement tricks needed

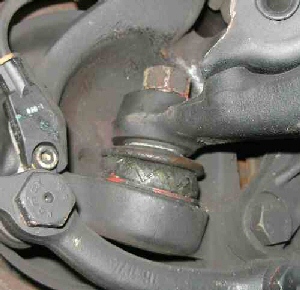

I am replacing the ball joint boots on the front lower joints. I am having trouble getting the lower control arm free of the ball joint. The area is too small to use the typical ball joint tool and I dont want to destroy the joint so I dont want to hammer on it in such a way as to damage it. There is little to pry against. I am looking for some ideas as to how to proceed.

Thanks.

Attached Thumbnails
Ball Joint Boot replacement tricks needed-p8020934-2.jpg
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k

Last edited by dpetryk; 08-02-2006 at 12:22 PM.
Reply With Quote
  #2
Old 08-02-2006, 02:12 PM
tvpierce's Avatar
Registered User

Join Date: Feb 2002
Location: Portland, ME
Posts: 612
A pickle fork will damage the boot, but not the ball joint. So if you're replacing the boots anyway, have at it with a pickle fork.

BTW, where did you get just the boots?

jp
__________________
Jeff Pierce

Current Vehicles:
'92 Mercedes 190E/2.3 (247K miles/my daily driver)
'93 Volvo 940 Turbo Wagon (263K miles/a family truckster with spunk)
'99 Kawasaki Concours
Gravely 8120
Previous Vehicles:
'85 Jeep CJ-7 w/ Fisher plow (226K miles)'93 Volvo 940 Turbo Wagon
'53 Willys-Overland Pickup
'85 Honda 750F Interceptor
'93 Nissan Quest
'89 Toyota Camry Wagon
'89 Dodge Raider
'81 Honda CB 750F Super Sport
'88 Toyota Celica
'95 Toyota Tacoma
'74 Honda CB 550F
Reply With Quote
  #3
Old 08-02-2006, 06:25 PM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,072
The local Benz dealer - PN 116 586 04 33

I managed to get the job done. I disconnected the top ball joint then was able to angle the spindle outward enough to install the standard screw type ball joint press. They came out no problem.
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #4
Old 08-13-2006, 09:32 AM
Registered User

Join Date: Jun 2006
Location: Northern New Jersey
Posts: 169
Reassembly?

So how did you get them pressed back in? Did the same press work for reinstallation? Some here have suggested that OEM press rented from AutoZone. Did you use this one?

Lou
Reply With Quote
  #5
Old 08-13-2006, 10:18 AM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,072
I never removed the ball joint. I just replaced the rubber cover. Joint was good, rubber cover was bad.
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #6
Old 08-23-2006, 08:55 PM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,077
Ruuber boot

where do you buy just the boot?
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #7
Old 08-24-2006, 06:53 AM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,072
The dealer
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #8
Old 08-26-2006, 10:30 AM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,077
old ball joint

ok, am in the middle of removing the rt lower ball joint. all bolts and nuts are off, even that of the upper bj. but am having problem sliding the bj bolt off the lower control arm. I thought maybe if I find a way to get the spindle off the upper bj first then I can hammer the lower bj off the arm?

or am I doing this the hard way? Help please
Attached Thumbnails
Ball Joint Boot replacement tricks needed-ball-joint-removal.jpg
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #9
Old 08-26-2006, 10:50 AM
Larry Delor's Avatar
What, Me Worry?

Join Date: Jun 1999
Location: Sarasota, Fl.
Posts: 3,114
If I am reading this right, you have everything unbolted, and the only thing holding on is the balljoint itself?

A big brass hammer ought to motivate it off.

Might want to put the nut back on the upper balljoint a few turns...so that when the lower gives, it won't go tumbling around everywhere...like on your foot or in your face.
__________________
It is a truism that almost any sect, cult, or religion will legislate its creed into law if it acquires the political power to do so. Robert A. Heinlein


09 Jetta TDI
1985 300D
Reply With Quote
  #10
Old 08-26-2006, 10:59 AM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,077
Good idea

Quote:
Originally Posted by Larry Delor View Post
If I am reading this right, you have everything unbolted, and the only thing holding on is the balljoint itself?

A big brass hammer ought to motivate it off.

Might want to put the nut back on the upper balljoint a few turns...so that when the lower gives, it won't go tumbling around everywhere...like on your foot or in your face.

Good idea. Don't have a brass hammer but have all sorts of steel hammers.

It may be obvious but what do I hammer? the top of the bj hitting it downwards? Heres anothe pic.
Attached Thumbnails
Ball Joint Boot replacement tricks needed-upper-lower-bj.jpg
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #11
Old 08-26-2006, 11:13 AM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,072
I had to disconnect the upper ball joint and then I could swing the spindle out of the way of the ball joint bolt. It will also give you clear access to hammer the joint free. I used a ball joint removal tool and it still was a challenge to get the joint free. Getting the joint out of the spindle is even more fun.
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #12
Old 08-26-2006, 11:19 AM
Larry Delor's Avatar
What, Me Worry?

Join Date: Jun 1999
Location: Sarasota, Fl.
Posts: 3,114
If you are going to replace the balljoint, might as well hit it, and get out some frustration. I might be tempted to put a small rag over it, to prevent flying particles or sparks, if you're going to use a steel hammer.
__________________
It is a truism that almost any sect, cult, or religion will legislate its creed into law if it acquires the political power to do so. Robert A. Heinlein


09 Jetta TDI
1985 300D
Reply With Quote
  #13
Old 08-26-2006, 11:30 AM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,077
Whats making it stick?

What is making the ball joint stick to the spindle anyway? Is it just rust? hope the new ball joint wont be hard to put in there.

I tried again, hammering and all. I even tried prying with my 5 ft long crow bar. Still not budging. Part of it I think is that the upper bj also seems to be stuck up there. So its not helping with the removal of the lower bj.

Yes the next challenge will be the removal of the bj from the spindle..... but one thing at a time.

Any more ideas to make this go easier would be great. Thansk again.
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #14
Old 08-26-2006, 11:40 AM
Larry Delor's Avatar
What, Me Worry?

Join Date: Jun 1999
Location: Sarasota, Fl.
Posts: 3,114
Heat/Cold comes to mind. Would be nice if we all had a container of liquid nitrogen, wouldn't it?

I hate to have to get out a torch and put heat on something, as I don't want it to loose its temper.
You could try a big ole block of ice...or maybe canned air (turn it upside down, it gets quite cold).

I doubt that penetrating fluid would penetrate much....that's a tight fit.


To remove the joint, put the spindle in a vice, and beat on it with a big ole hammer. Or, if you have a pneumatic hammer, use it. This is another time when you might want to heat the joint itself up a little. If you heat, beware of trapped moisture wanting to pop out with great speed.
__________________
It is a truism that almost any sect, cult, or religion will legislate its creed into law if it acquires the political power to do so. Robert A. Heinlein


09 Jetta TDI
1985 300D
Reply With Quote
  #15
Old 08-26-2006, 12:04 PM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,077
Yup

Thats actuallywhat I'm doing now. Got the torch out. Heating the bj bolt and the control arm area. This should break any rust in there. Still not budging but got to be patient I guess. Wish me luck.

__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
