Location of RCL Control Module 1996 SL500?

I am trying to figure out why my 1996 SL500 will not lock/unlock from the driver's door or trunk locks. The infrared device works fine.

Alldata component locator shows the RCL module (N54) in the trunk area by the gas filler, but it's not there. In a discussion about the Drive Authorization System, it shows it behind the passenger side air bag for cars from 1995 on.

Could someone confirm this? I would like to check the input to the control module from the door/trunk lock micro switches.

Thanks.

__________________
Chuck Taylor
Falls Church VA
'66 200, '66 230SL, '96 SL500. Sold: '81 380SL, '86 300E, '72 250C, '95 C220, 3 '84 280SL's '90 420SEL, '72 280SE, '73 280C, '78 280SE, '70 280SL, '77 450SL, '85 380SL, '87 560SL, '85 380SL, '72 350SL, '96 S500 Coupe
Reply With Quote
  #2
Old 09-01-2008, 06:59 PM
Moderator

Join Date: Mar 2000
Location: Gainesville FL
Posts: 6,844
It is shown in three different starfinders from wiring diagrams 93-95, 96, and 97 on as being in behind the filler pipe in the trunk.
__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician
Reply With Quote
  #3
Old 09-02-2008, 07:51 PM
Super Moderator

Join Date: Apr 2000
Location: Falls Church, VA
Posts: 5,316
Plan B?

Thanks.

I know exactly where you mean. It's where Alldata shows the RCL unit. But it's not there. What is there is the ATA (alarm) module complete with its 33 pin connector (RCL has 18) and correct PN 140 820 6626. I removed it to get a good look behind the brace and filler tube. Nothing.

I also removed the liner on the front trunk bulkhead and looked around. Again, nothing.

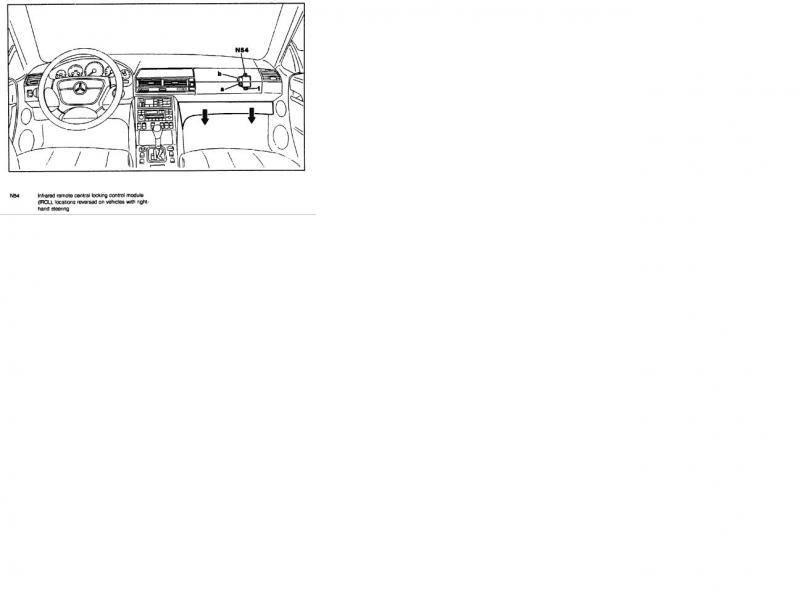

Here's the other diagram from Alldata.
Attached Thumbnails
Location of RCL Control Module 1996 SL500?-129-rcl-alldata.jpg
__________________
Chuck Taylor
Falls Church VA
'66 200, '66 230SL, '96 SL500. Sold: '81 380SL, '86 300E, '72 250C, '95 C220, 3 '84 280SL's '90 420SEL, '72 280SE, '73 280C, '78 280SE, '70 280SL, '77 450SL, '85 380SL, '87 560SL, '85 380SL, '72 350SL, '96 S500 Coupe
Reply With Quote
  #4
Old 09-02-2008, 08:21 PM
Registered User

Join Date: May 2001
Location: Las Vegas, Atlanta
Posts: 670
Starfinder is incorrect. The attached picture shows the correct location of N54 (labeled N26 here).
Attached Thumbnails
Location of RCL Control Module 1996 SL500?-ircl-control-module.jpg
Reply With Quote
  #5
Old 09-02-2008, 09:03 PM
Johnhef's Avatar
Senior Member

Join Date: Feb 2005
Location: Frederick, Md
Posts: 4,540
On the much later ones, its above the drivers kick/knee panel, just to the left of the steering column. any chance its there on yours?
__________________


1980 500SE/AMG Euro
1981 500SEL Euro
1982 380SEL
1983 300TD
1983 500SEC/AMG Euro
1984 500SEC
1984 300TD Euro
1986 190E 2.3-16
1986 190E 2.3
1987 300D
1997 C36 AMG
2003 C320T 4matic

past: 1969 280SE 4.5 | 1978 240D | 1978 300D | 1981 300SD | 1981 300SD | 1982 300CD | 1983 300CD | 1983 300SD | 1983 380SEC | 1984 300D | 1984 300D | 1984 300TD | 1984 500SEL | 1984 300SD | 1985 300D | 1986 300E | 1986 560SEL | 1986 560SEL/Carat | 1987 560SEC | 1991 300D 2.5 | 2006 R350
Reply With Quote
  #6
Old 04-16-2021, 04:17 PM
Registered User

Join Date: Apr 2021
Posts: 2
I have exactly the same problem on my 1995 SL500.
the car will not crank the starter and all of light turn on normally on dash board.
The car only opens manually with the key.

The remote controls do not do anything.
Is there a temp fix that I can do to start the car.
Reply With Quote
  #7
Old 04-16-2021, 04:21 PM
Registered User

Join Date: Apr 2021
Posts: 2
How much is the unit

Quote:
Originally Posted by bobterry99 View Post
Starfinder is incorrect. The attached picture shows the correct location of N54 (labeled N26 here).
How much is that unit.
