On my 91 they are plain Jane plastic covers that pop-off. When I painted the wheels they turned out nice.

But on a 420 SEL that I originally tried to buy, they have been updated or the car had some factory option. I've attached a pic to show what I saw. The wheel sets themselves were the same as I have now.

Basically I am looking to update from these plastic ones. But I do not know if they are pretty much universal or if there is a specific part number/series I should look at getting these from.

Thanks.

Attached Thumbnails



__________________
1991 560 SEL / 185k miles
1992 750il / 17k miles - project car

From what I have seen all the center caps are the same size and use the same mounting. I got a set of late caps with the chrome star to put onto my wheels.

-J

__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket

Tesla Model 3. 205,000 miles. Been to 48 states!
Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels.
2014 Cadillac ELR
2013 Fiat 500E.

I have seen them at MB dealers. There are two different types. One for early rims up to 1985, and the other for 1986-1991 wheels. I think they are around $20 each.

__________________

1994 E320 94k
1991 300TE 105K
1985 SD 184k
1983 SD 167K
1970 280SE 54K, sold
1981 SD 271k, sold
1984 300D 145K, sold

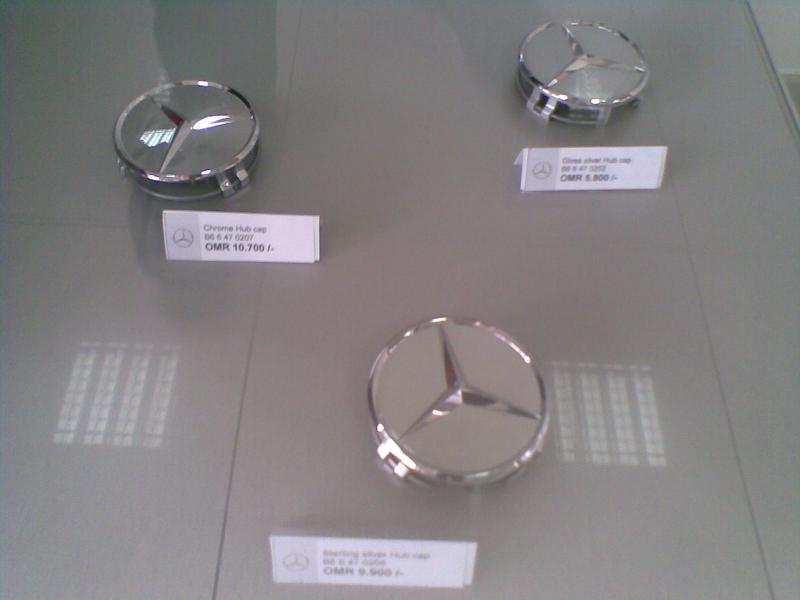

I saw three versions with high finish on display in the Local MB Dealer Parts display Case.

Top - Gloss Silver B66470202
Middle - Chrome B66470207
Bottom - Sterling Sliver B66470206

Attached is mobile 'phone picture, sorry about the quality. To be honest they all looked the same to me.

James

Attached Thumbnails



I just got done going over these choices for my W140. The B66470207 speaks for itself. It is all chrome. That was not the look I was looking for on my car. The other two are more interesting for me anyway.

The B66470202 has a chrome ring and star with a painted silver background. The silver paint has metal flake in it just like a paint job. It is a little darker silver than the silver on one of my cars and if your car is painted silver (or have a painted wheel) I think this is a really nice choice. I was trying to match the wheel with the center ring and the B66470206 has the closest to the finish of the W140 polished aluminum wheel as the background to the chrome star and ring. It is the one that I decided to go with.

All the post '86 caps interchange.
Try eBay for good pricing.

Jim

__________________
14 E250 BlueTEC black. 45k miles
95 E320 Cabriolet Emerald green 66k miles
94 E320 Cabriolet Emerald green 152k miles
85 300TD 4 spd man, euro bumpers and lights, 15" Pentas dark blue 274k miles
