Speedometer keeps clicking....

This is on my 300TE.

I had a wobbly speedo a while back and replaced the cable. It was unsuccessful...

I then replaced the cable AGAIN thinking I pulled on it or something, but now its clicking. Fast clicking that increases with speed.
It is NOT the odometer clicking -- I have experienced this quirk and its not the rollover clicking. It is 100% speedometer.

I swapped the speedometer unit to eliminate that and it still does it (again disproving odo). It both wobbles and clicks, although the wobbling and clicking is inversely relationed (wobbling decreases with speed as clicking increases)

Any ideas guys?
Is there something that I have missed doing correctly during installation or anything?

__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #2
Old 10-02-2011, 03:12 PM
Registered User

Join Date: Feb 2006
Posts: 18
Arrow

Make sure u push your speedo mile reset on the dash board all the way in. If you do not, it is known to cause the clicking sound and you can't resert it while the car is moving.
Reply With Quote
  #3
Old 10-02-2011, 05:50 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
Quote:
Originally Posted by ps2cho View Post
It is NOT the odometer clicking -- I have experienced this quirk and its not the rollover clicking. It is 100% speedometer.
^.
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #4
Old 10-03-2011, 07:38 AM
Registered User

Join Date: Jan 2008
Location: Melbourne Australia
Posts: 844
Hi ps2cho,

I have the same problem as yourself. - clicking speedo. It seems to be worse when cold (in cold weather). When it warms up, the noise abates however the speedo needle still fluctuates badly.

To experiment I have just changed two clusters between two cars. The problem stays with the car. The speedo that was clicking is as silent as a mouse in the other car and whats more there is a complete absence of fluctuation.

I know that the cable is good in the problem car - I changed it recently.

So! Deduction : The problem lies with the sending unit in the transmission.
Reply With Quote
  #5
Old 10-03-2011, 11:49 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
I'm wondering if there is some sort of difference in the new speedo cables? Maybe very, very slightly thinner?
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #6
Old 10-04-2011, 12:14 AM
sptt's Avatar
Registered User

Join Date: Sep 2009
Location: Orange County, California
Posts: 691
Maybe you can "squeeze" the trans end of the speedo at the tip a bit in a vice to let it spread out and engage better in the transmission?
Reply With Quote
  #7
Old 10-04-2011, 02:00 AM
Aquaticedge's Avatar
Bump on a log

Join Date: Nov 2009
Location: See Biography
Posts: 3,148
What I'm thinking is possibly the cable is not as long as it should be and it is skipping in the housing instead of catching fully.
__________________
hum.....
1987 300TD 311,000M Stolen. Presumed destroyed
Reply With Quote
  #8
Old 10-04-2011, 03:22 AM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
Quote:
Originally Posted by Aquaticedge View Post
What I'm thinking is possibly the cable is not as long as it should be and it is skipping in the housing instead of catching fully.
That was my idea to some extent also. I was thinking it was not pushed far enough in on the speedo-side...but that would also fall under your idea of the cable not being long enough in the first place.

I called my local MB stealership and they want $130 for a new cable
Insanity!!!
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #9
Old 10-05-2011, 01:45 AM
Registered User

Join Date: Oct 2004
Posts: 4,177
The low speed wobbling is a classic cable issue. Assuming you have a "good" new cable, having it routed properly and located in its clips does make a difference.
__________________

90 300TE 4-M
Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs 1st Gear Start

90 300CE
104.980
Milled & ported head, 10.3:1 compression
197° intake cam w/20° advancer
Tuned CIS ECU
4° ignition advance
PCS TCM2000, built 722.6
600W networked suction fan
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff
Reply With Quote
  #10
Old 02-23-2012, 01:03 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
With my new transmission installed, I am still having problems with the wobble.

My speedometer has been rebuilt, and the transmission has been rebuilt.

It HAS to the cable? But I have gone through 2 of them now...is my only option to go buy Dealership?
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #11
Old 02-23-2012, 01:33 PM
compu_85's Avatar
Cruisin on Electric Ave.

Join Date: May 2008
Location: La Conner, WA
Posts: 5,234
Have you tried lubricating the cable?

-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket

Tesla Model 3. 205,000 miles. Been to 48 states!
Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels.
2014 Cadillac ELR
2013 Fiat 500E.
Reply With Quote
  #12
Old 02-23-2012, 09:56 PM
95 E320 w124 Wagon

Join Date: Mar 2010
Location: Minnesota
Posts: 63

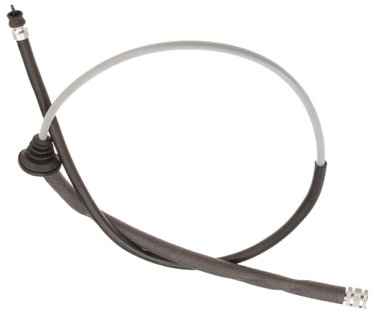

I had a loud clicking sound when it really got cold but also always wobbled regardless of the temp . Changed the cluster head, lubed the cable...nothing worked. But when I re-build the tranny, I figured I'd replace the speedo cable (I have a 95 e320 wagon) with the OEM GEMO (less than 40 bucks) cable. I immediately saw the issue with the bad cable so...in with the new. I fould it easier to work the new cable up from the bottom of the car versus starting from the inside of the car. With the a clear line to the transmision (still tilted down as the drive shaft was not attached yet) I was surprised I fiddled with it for a good 15-20 min to get the aluminum collar with the squared cable shaft seated all the way in to the transmission. There were times when I thought I was damaging the cable trying to get it to seat in correctly. The square shaft has to be aligned with the square "hole" in the transmission to slide in all the way. There was a few times I thought it was in right....boy I'm glad kept tying as it finally slid in about another 1/4" of an inch. Never thought it would be that tricky...or I'm just slow. Now the speedo is wobble and click free....smooth as butter.
Attached Thumbnails
Speedometer keeps clicking....-1245401468.jpg
Reply With Quote
  #13
Old 02-24-2012, 11:05 AM
glenmore's Avatar
Registered User

Join Date: Sep 2002
Location: Los Angeles
Posts: 963
Quote:
Originally Posted by berryrice View Post
I was surprised I fiddled with it for a good 15-20 min to get the aluminum collar with the squared cable shaft seated all the way in to the transmission. There were times when I thought I was damaging the cable trying to get it to seat in correctly. The square shaft has to be aligned with the square "hole" in the transmission to slide in all the way. There was a few times I thought it was in right....boy I'm glad kept tying as it finally slid in about another 1/4" of an inch. Never thought it would be that tricky...or I'm just slow. Now the speedo is wobble and click free....smooth as butter.
This sounds like THE solution!
Reply With Quote
  #14
Old 02-24-2012, 11:48 AM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
Quote:
Originally Posted by berryrice View Post
I had a loud clicking sound when it really got cold but also always wobbled regardless of the temp . Changed the cluster head, lubed the cable...nothing worked. But when I re-build the tranny, I figured I'd replace the speedo cable (I have a 95 e320 wagon) with the OEM GEMO (less than 40 bucks) cable. I immediately saw the issue with the bad cable so...in with the new. I fould it easier to work the new cable up from the bottom of the car versus starting from the inside of the car. With the a clear line to the transmision (still tilted down as the drive shaft was not attached yet) I was surprised I fiddled with it for a good 15-20 min to get the aluminum collar with the squared cable shaft seated all the way in to the transmission. There were times when I thought I was damaging the cable trying to get it to seat in correctly. The square shaft has to be aligned with the square "hole" in the transmission to slide in all the way. There was a few times I thought it was in right....boy I'm glad kept tying as it finally slid in about another 1/4" of an inch. Never thought it would be that tricky...or I'm just slow. Now the speedo is wobble and click free....smooth as butter.
I will try doing it from the underside first and let you guys know how it goes. But yes its that final 1/4" that I am also struggling with.

__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
