electrical plug on the side of Transmission
Hello, how do you put the electrical plug onto the 722.355 trans. It looks like this white plastic thingy slides abit but it is still not going on? what am I missing?
|
#2
|
|||
|
|||
more pictures? went and tried again??? I give up for this evening.
|
#3
|
|||
|
|||

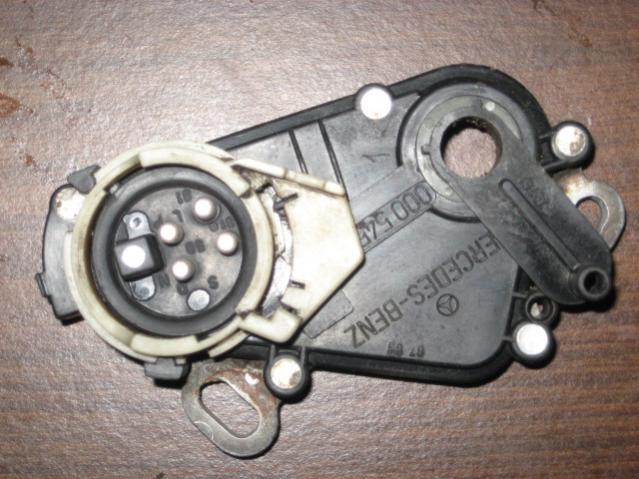

I 'm thinking maybe it should look like this?
|
#4
|
||||
|
||||
The "White Plastic Thingy"
is a Rotating Lock (NOT VERY FAR,15 to 20 degrees) for the Female Electrical
Plug. That device is the "Back Up (Reverse) Light switch. (also know as the Neutral Safety Switch.[Starter Non-Repeat] ) The Picture in your post #1 shows the correct orientation of the Switch. The Pictogram shows the correct orientation of the "White Plastic Locking Device." EDIT: emerydc8 's Pictures #1 and #2 in the Link he posted are far superior to the monoscale pictogram!
__________________
'84 300SD sold 124.128 Last edited by compress ignite; 12-10-2011 at 04:03 AM. |
#5
|
|||
|
|||
Once you get it on, you may want to ensure it is properly adjusted. I just went through this a few months ago and it is not very difficult. Here's the link.
http://www.peachparts.com/shopforum/tech-help/306508-replaced-nss-now-no-reverse-lights.html If you are having difficulty accessing the switch (I know the space in the transmission tunnel is minimal), you can put a jack with some wood under the transmission pan, loosen the mount and lower it a few inches.
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles |
#6
|
|||
|
|||
Got it...It was the combination in the picture in my post #3 or emerydc8 has a pic of the same thing on his pic #2. I could not get his pic#1 to open. ....anyways there are several combinations that this plug appears to have but only 1 that works so the pins line up correctly where you can lock it on. The white locking ring fell off mine and so I had some fun with trial and error to get it correct..all is well. Thanks.
|
