  #1
Old 09-30-2015, 10:16 PM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
Had to tow car - multiple misfire codes

Car will not stay on and barely start. Happened out of nowhere. Getting codes 0300, 0301, 0305, 0303. Could it be a bad CPS? I had driven the car for 10 miles. Then it started hesitating and finally die. Any thoughts? Sparplugs have 30kmi. No leaks. Car has 135kmi. Thanks!!

Reply With Quote
  #2
Old 09-30-2015, 10:39 PM
Registered User

Join Date: Oct 2004
Posts: 4,326
Without knowing what car you're talking about I'm going to go ahead and say no, not a CPS. Sounds like a failed fuel pump, but again without knowing what car there are some models where lack of fuel pressure is caused by something other than the pump.
__________________

90 300TE 4-M
Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs 1st Gear Start

90 300CE
104.980
Milled & ported head, 10.3:1 compression
197° intake cam w/20° advancer
Tuned CIS ECU
4° ignition advance
PCS TCM2000, built 722.6
600W networked suction fan
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff
Reply With Quote
  #3
Old 09-30-2015, 10:47 PM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
Sorry. 2005 CLK500
Reply With Quote
  #4
Old 09-30-2015, 10:53 PM
Registered User

Join Date: Oct 2004
Posts: 4,326
Possible fuel pump but the connector that goes into the tank can overheat and fail too. First step is to confirm that lack of fuel pressure is the problem.
__________________

90 300TE 4-M
Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs 1st Gear Start

90 300CE
104.980
Milled & ported head, 10.3:1 compression
197° intake cam w/20° advancer
Tuned CIS ECU
4° ignition advance
PCS TCM2000, built 722.6
600W networked suction fan
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff
Reply With Quote
  #5
Old 09-30-2015, 10:55 PM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
Thanks!! Need to research how to test fuel pressure. I have done many repairs but never that one.
Reply With Quote
  #6
Old 10-01-2015, 10:30 AM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
Could someone advise which gauge to get to test the fuel pressure? Can one from autozone or o'reilley work?
Reply With Quote
  #7
Old 10-01-2015, 11:55 AM
ILUVMILS's Avatar
Senior Member

Join Date: Sep 2002
Posts: 3,082
How old are the ignition cables?
Reply With Quote
  #8
Old 10-01-2015, 12:02 PM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
Original. But now car wont fire up at all. Fuel issue seems clearer
Reply With Quote
  #9
Old 10-03-2015, 07:55 AM
Hirnbeiss's Avatar
ich fahre, also bin ich

Join Date: Mar 2002
Location: South Florida
Posts: 1,671
Right now all of your misfires are on the same bank. Check for a clogged cat.
__________________
Prost!
Reply With Quote
  #10
Old 10-05-2015, 11:54 AM
ILUVMILS's Avatar
Senior Member

Join Date: Sep 2002
Posts: 3,082
Quote:
Originally Posted by Hirnbeiss View Post
Right now all of your misfires are on the same bank. Check for a clogged cat.
???
Reply With Quote
  #11
Old 10-05-2015, 12:01 PM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
There was no fuel pressure at all in the rail. Order new fuel pump, filter and module assembly. Going all new. $500 and change.
Reply With Quote
  #12
Old 10-05-2015, 12:14 PM
apb apb is offline
Registered User

Join Date: Mar 2001
Location: Houston, Texas
Posts: 450
There was no fuel pressure at all in the rail. Order new fuel pump, filter and module assembly. Going all new. $500 and change.
Reply With Quote
  #13
Old 10-05-2015, 01:26 PM
Hirnbeiss's Avatar
ich fahre, also bin ich

Join Date: Mar 2002
Location: South Florida
Posts: 1,671
Quote:
Originally Posted by ILUVMILS View Post
???

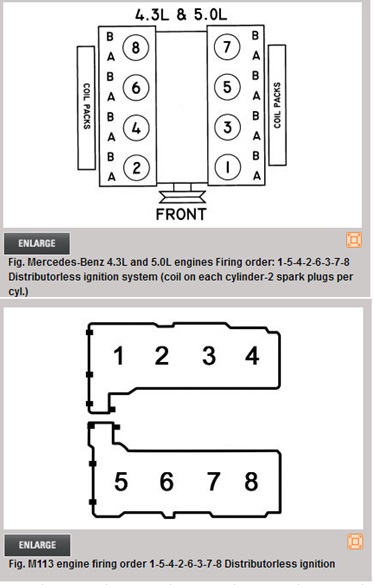

Was that not right? I checked the firing order here: | Repair Guides | Firing Orders | Firing Orders | AutoZone.com
__________________
Prost!
Reply With Quote
  #14
Old 10-06-2015, 12:36 PM
ILUVMILS's Avatar
Senior Member

Join Date: Sep 2002
Posts: 3,082
LH, 5-8
RH, 1-4
Reply With Quote
  #15
Old 10-06-2015, 04:00 PM
Hirnbeiss's Avatar
ich fahre, also bin ich

Join Date: Mar 2002
Location: South Florida
Posts: 1,671
My bad - it shows the correct order farther down. Too bad, though, the cat scenario fit so nicely.
Attached Thumbnails
Had to tow car - multiple misfire codes-%2416d9dd23f8dec0bb.jpg

__________________
Prost!
Reply With Quote
