Fuse Box Question, Burnt pins= Electrical Gremlins?

Hope someone is more familiar with old Merc fuse boxes,

Recently pulled my fuse box to clean out the area around and behind it, and also to check on the health of the fuse box. For reference I am working on a 1991 190e 2.3. Once removed, I noticed on the undersized some corrosion, and then several pins that appear to black/dark brown. Prior to pulling the fuse box, over the last year and a half, I have experienced erratic electrical gremlins and yet none of the fuses were blown. My Issues included: Non functioning cruise control (broke sometime prior to July 2018 when I bought the car), fluctuating interior lights, erratic radio (12v constant would dip way low and then super high, causing antenna to go up and down), and recently pieced together that at some point the Aux fan magnet must have failed because a brown wire leading to the coolant temp sensor is clipped and exposed, and the fan just slowly spins at all times. Any possibility that this is in correlation with the Fuse Box? Also the plastic housing of the fuse box has what appears white oxidation all over it. Any help would appreciated.

Attached Thumbnails

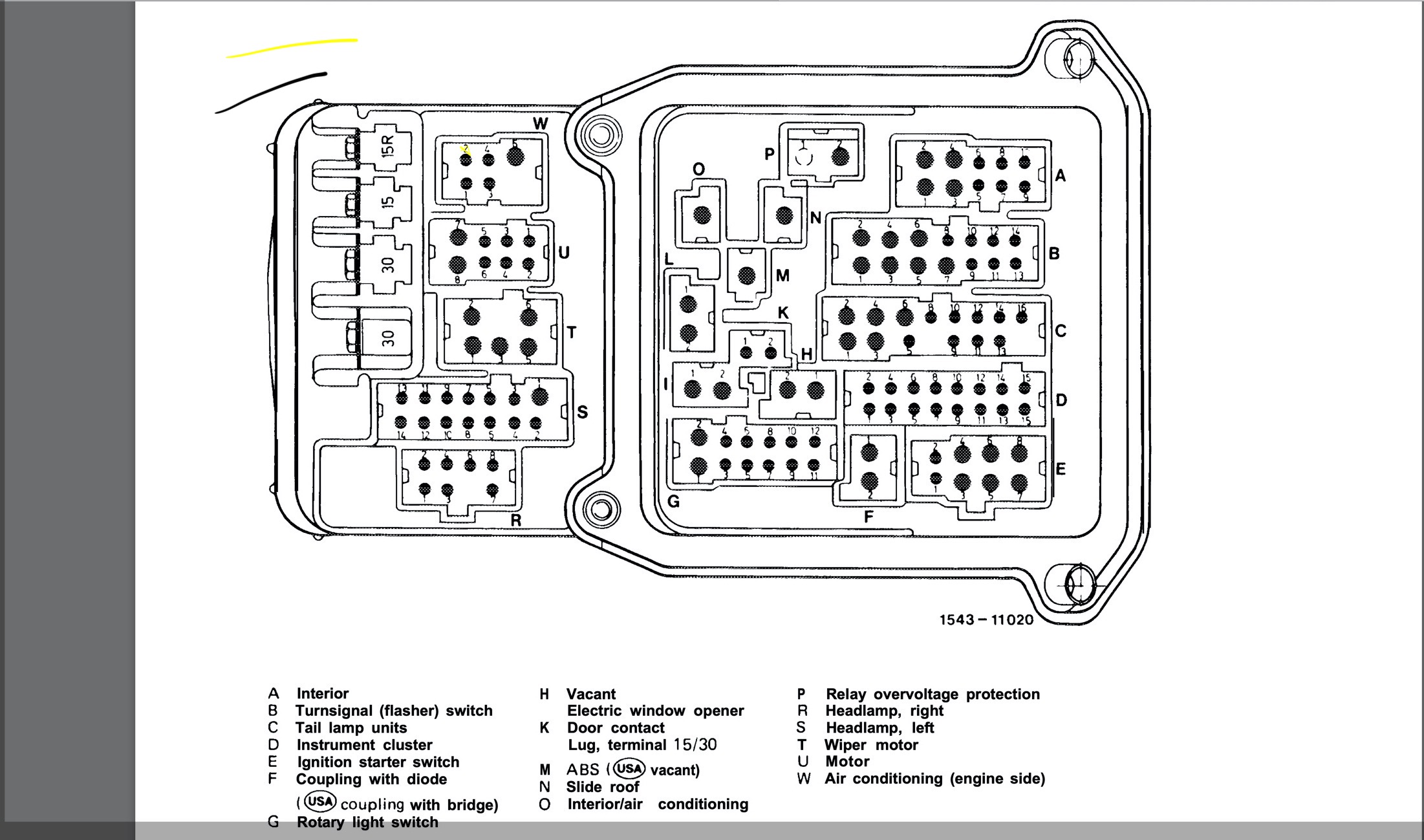

Fuse Box Question, Burnt pins= Electrical Gremlins?-fuse-box-w201.jpeg   Fuse Box Question, Burnt pins= Electrical Gremlins?-img_3537.jpg
Reply With Quote
  #2
Old 07-20-2020, 04:56 PM
Registered User

Join Date: May 2016
Posts: 6,023
There don't appear to be any burnt pins in your photo. MB's of this era used silver-plated contacts and pins that will darken with age. Your erratic voltage in the car is most likely the regulator failing on the alternator. Replace it before it leaves you stranded.
Reply With Quote
  #3
Old 07-20-2020, 05:55 PM
Registered User

Join Date: Jun 2020
Posts: 9
Thanks for the input! The issue is the pictures dont seem to refelct how dark some of the pins are, specifically on plugs S and U (also forgot to upload the other portion of the box). Hopefully this weekend I will be able to pull the fuse box from my parts car (92 2.6), and take some side by side pictures for comparsion. As for the alternator it is a 90amp bosch unit (unlike alot of things on my little m102, defintiley not original).
Reply With Quote
  #4
Old 07-20-2020, 09:22 PM
Registered User

Join Date: May 2016
Posts: 6,023
The silver plating can turn jet black. Color means nothing. Overheated pins will have melted wire insulation on the back side, a blistered appearance, and usually melted plastic around them. You have none of these.

Alternator size doesn't matter. If the brushes are worn out on the regulator, you'll get erratic voltage from it. The dipping lights and various flaring you describe is a classic failing regulator. Fix it before you're walking.
