  #1
Old 12-01-2022, 01:30 AM
Peyton300TD's Avatar
S124 owner

Join Date: Apr 2002
Location: Marina Del Rey, CA
Posts: 1,072
Magnesium Valve Cover REFINISHING

I am surprised there's not more info on this, so here goes.

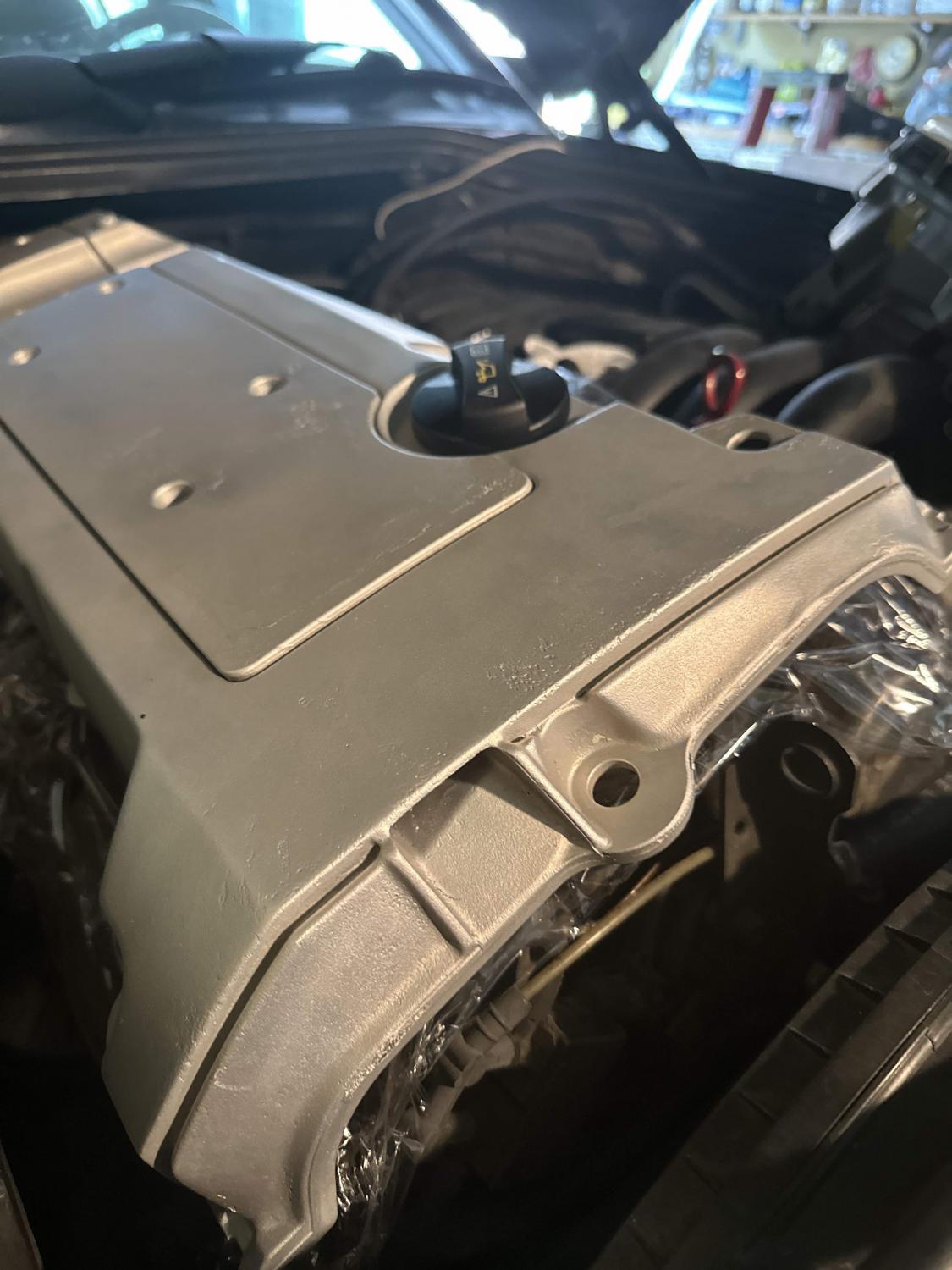

I am refinishing an m104 Magnesium alloy valve cover. I had it media blasted and the end result was porous. I then had it vapor honed and it brought out the nice bare shiny magnesium silver. My intention was to then have it powder coated. But it was suggested to just put a ceramic coat on it with cerakote and call it a day. I don't mind this idea, as it looks quite nice... but I am skeptical this will hold up. If there is no coating on Magnesium, it will just fall apart.

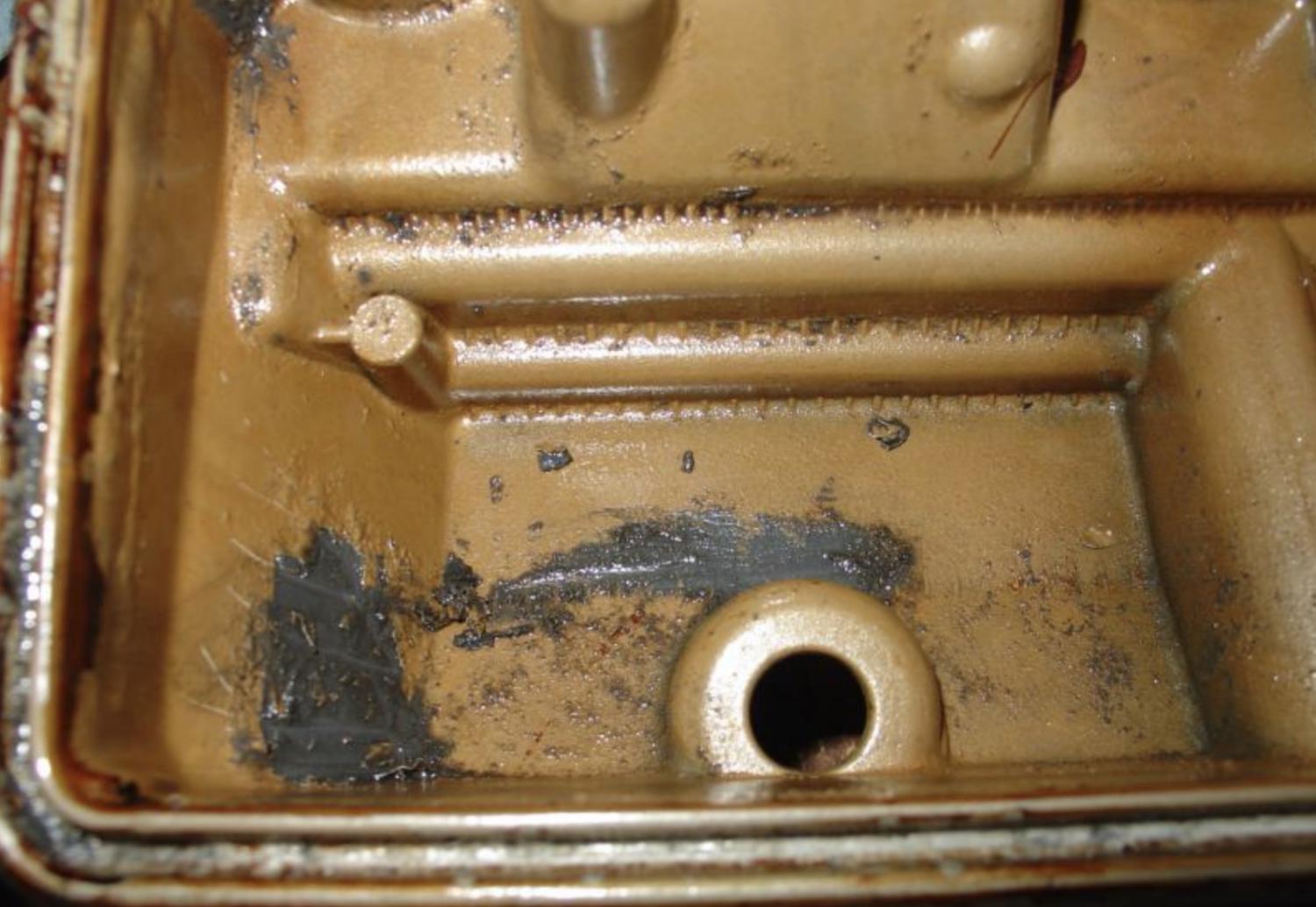

Also on the inside portion of the valve cover, the old coating is starting to flake off. I have heard "don't ever strip magnesium, it will damage it." I have also heard not to media blast the inside because you don't want it to become porous. I have also heard, the flaking is not a big deal, just leave it, there are filters that will catch it.

Does anyone have any opinion here?

Is a ceramic coat enough to protect bare magnesium? If I powder coat it, I know there are many shops that won't touch magnesium... and you have to be careful how you bake it.

What should be done about the flaking coating on the inside of the valve cover?

Thanks in advance! See pictures below.

Eric

Attached Thumbnails

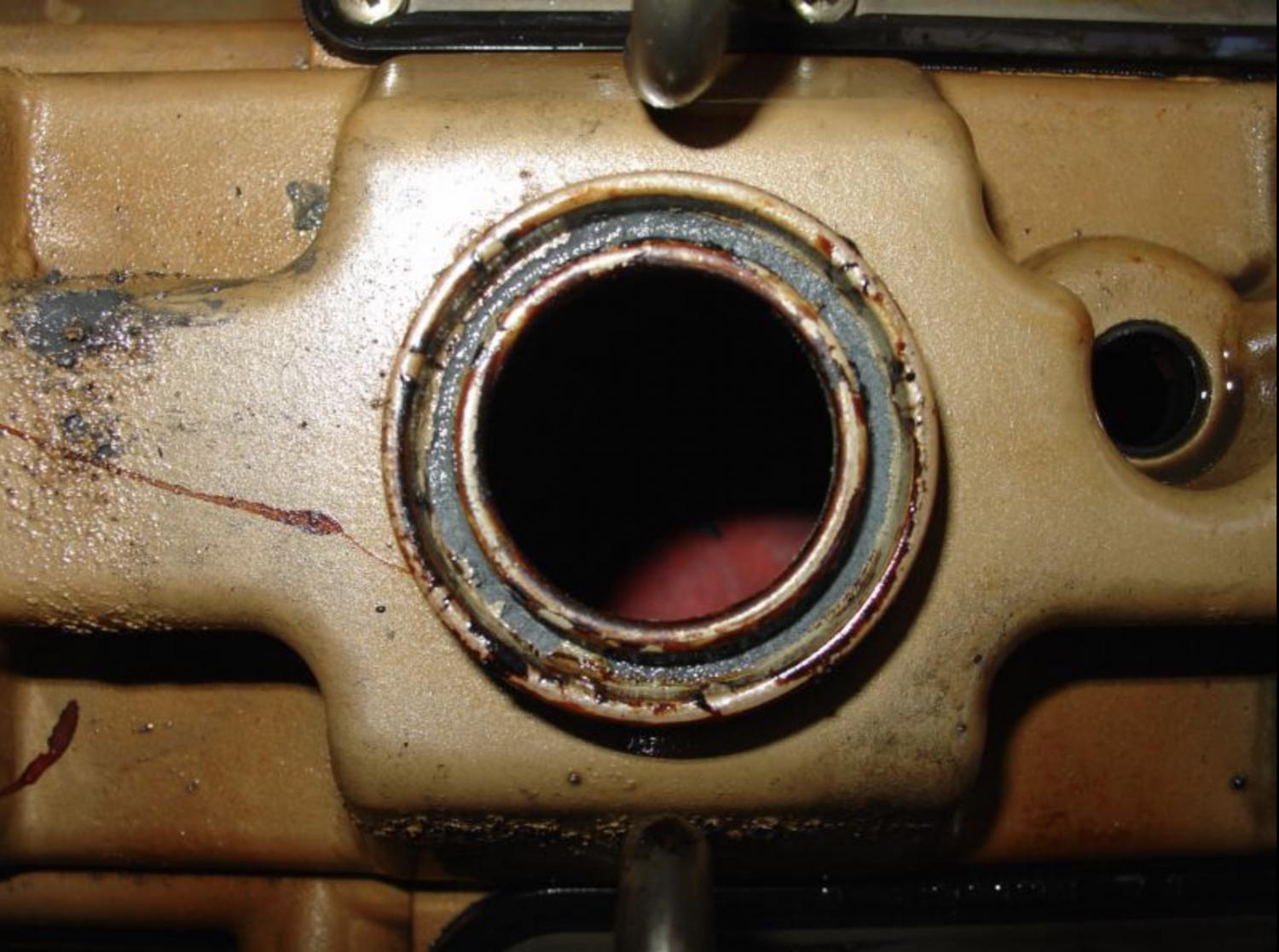

Magnesium Valve Cover REFINISHING-img_0742.jpg   Magnesium Valve Cover REFINISHING-69118749296__307884cc-5d0b-4afc-957b-4fac6977ae59.jpg   Magnesium Valve Cover REFINISHING-screen-shot-2022-11-30-9.19.16-pm.jpg   Magnesium Valve Cover REFINISHING-screen-shot-2022-11-30-9.19.05-pm.jpg
__________________
1995 E320 Sportline Wagon "Bernard"
black on black leather

http://i.imgur.com/BdZ7jM3.png
Reply With Quote
  #2
Old 12-05-2022, 11:58 AM
oldsinner111's Avatar
lied to for years

Join Date: Nov 2008
Location: Elizabethton, TN
Posts: 6,213
Painted mine with red high heat paint, been on 10 years. Insides be careful don't want bits in your engine, maybe clean it and leave it be. Oh yeah painted spark plug valley, left clean where coils ground, coils stay cooler, and last

__________________
1999 w140
Reply With Quote
