Thumbs up Rear seat elastic holder?

I know we've all seen the droppy holder on the back of seats on various 80s S and E class... but has anyone ever fixed this? I would think a simple piece of elastic from a sewing/fabric store would probably work okay but am curious if that would be a quality solution...

Thanks!
__________________
I'm not a doctor, but I'll have a look.

'85 300SD 244k
'87 300SDL 251k
'90 300SEL 325k
'91 560SEL 189k

Eight others from IH, BMW, GM, Ford, and Volvo.

Liberty will not descend to a people; a people must raise themselves to liberty.
[/IMG]
Reply With Quote
  #2
Old 03-19-2006, 11:51 AM
rg2098's Avatar
Detailing Moderator

Join Date: Jun 2004
Location: Rochester Hills, MI
Posts: 2,415
I bought a universal elastic trunk cargo net on ebay for $10 and I have about 20 feet left of elastic in my tool box. Let me know if you want a cut for shipping cost.

1) Take the screw at the bottom of the seat back out and side the back off.
2) 2 screws on the top corners of the plastic elastic holder and the bottom un-clips.
3) The elastic upper has 2 metal clips crimped on which hold into in the plastic, a flat screw driver and pliers are all you need to uncrimp and re-crimp the metal clips on to the new elastic.
NOTE: Obviously don't measure the old stretched out elastic, you want the new to have slight tension across.

Please take photos for an DIY write-up.
__________________
Adam Lumsden
(83) 300D
Vice-President of the MBCA International Stars Section
Reply With Quote
  #3
Old 03-19-2006, 02:31 PM
Hit Man X's Avatar
I LOVE BRUNETTES

Join Date: Sep 2004
Location: FUNKYTOWN
Posts: 9,058
Thumbs up

Seems easy enough, you have a PM.
__________________
I'm not a doctor, but I'll have a look.

'85 300SD 244k
'87 300SDL 251k
'90 300SEL 325k
'91 560SEL 189k

Eight others from IH, BMW, GM, Ford, and Volvo.

Liberty will not descend to a people; a people must raise themselves to liberty.
[/IMG]
Reply With Quote
  #4
Old 03-19-2006, 02:52 PM
MTI's Avatar
MTI MTI is offline
Registered User

Join Date: Nov 2002
Location: Scottsdale, Arizona
Posts: 10,626
Instead of replacing the elastic cord, I just used a "toggle" like they have on jacket and bag drawstrings to tighten or loosen the webbing.
Reply With Quote
  #5
Old 04-14-2006, 01:24 AM
pmari's Avatar
OM606.962 177hp 330nm

Join Date: Oct 2004
Location: L.I. N.Y.
Posts: 1,033
I did the sewing store fix. They have several widths and shapes to choose from. Cost a whopping $3.00. I reused the metal cord holders that were on the original. I used an awl and needle nose pliers to get them off. I used lineman pliers to recrimp them. It's a quick fix requires little skill and money and looks 100% better.
Attached Thumbnails
Rear seat elastic holder?-1983-mb-300sd-net-repair.jpg
__________________
1999 E300DT (131,800) 154,000 Black on Black SOLD

2006 CLK 500 coupe Capri Blue on Grey (zoom,zoom)
47,000mi

04 VW TDI Passat 80,000mi
(Techno)

How to eliminate oil dependency through market-driven approaches.
“We could cut oil use in half by 2025, and by 2040, oil use could be zero,”

The Sound of Diesel Speed
Ode to MB

Last edited by pmari; 01-10-2007 at 05:10 PM.
Reply With Quote
  #6
Old 04-24-2006, 03:53 PM
Registered User

Join Date: Sep 2004
Location: DFW / Collin County Texas
Posts: 1,882
I just did this fix a few days ago. I agree, cheap and easy fix and looks like a million bucks when you're done! Black 1/4" elastic was 81 cents at Wally World, and I have enough left to do each pocket one more time each (will keep it as spare). Took all of 30 minutes to do, very satisfying...
__________________
08 W251 R350
97 W210 E320
91 W124 300E
86 W126 560SEL
85 W126 380SE Silver
85 W126 380SE Cranberry
79 W123 250
78 W123 280E
75 W114 280
Reply With Quote
  #7
Old 08-04-2006, 01:36 AM
Gigtime's Avatar
Space for Rent

Join Date: Oct 2004
Location: Wimberley, TX
Posts: 151
I know this is an old thread but for anyone seeking a fix for this, an alternative is getting the seat backs from an 89-91 boneyard model. On the 126, it's a direct replacement and they have the more modern leather pocket instead of the cargo net. A five minute job, too.
__________________
_______________________________________
1988 MB 560 SEL 138k - Desert Taupe w/ Cream Beige Interior.

Mods:
Euro Headlights w/Smoked Corners
New seats from a `91
ASA 15-Hole Replicas
Sony HU, JL Audio 400/4 Amp, JL Audio 2-way Components on rear deck, JL Audio 3-way Components in door & dash.


2000 BMW Z3 2.3 Roadster 33k
2002 Toyota Rav4L 50k
Reply With Quote
  #8
Old 09-20-2006, 07:36 PM
Registered User

Join Date: Apr 2006
Location: Aiken, SC
Posts: 204
I just replaced the elastic on my seat backs, and took a few pictures. For parts I used 1/4 inch elastic I bought at Hobby Lobby for 89 cents.

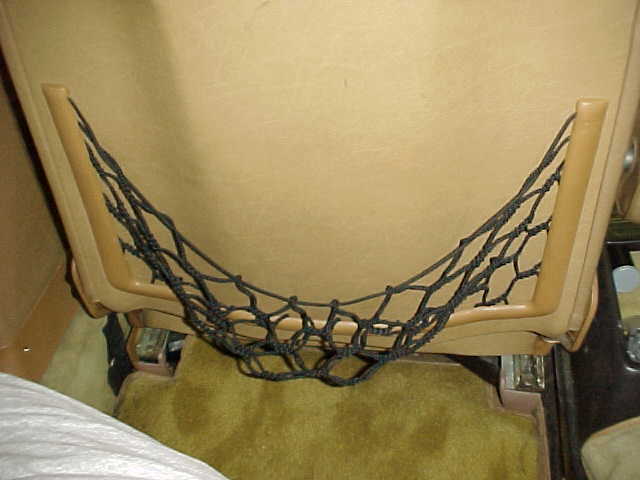

Picture 1 is my saggy seat backs.

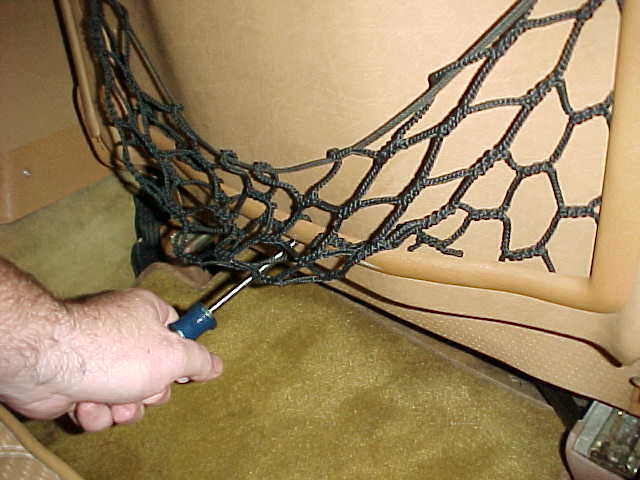

Picture 2 is removing the phillips screw at the center bottom of the back. With the screw out pull straight down and the back will come off.
Picture 3 remove the two screws on the back to remove the net holders.
Attached Thumbnails
Rear seat elastic holder?-mvc-019s.jpg   Rear seat elastic holder?-mvc-020s.jpg   Rear seat elastic holder?-mvc-021s.jpg
__________________
2000 C230 Kompressor "Frosty"

2007 PT Cruiser
2001 VW TDI Beetle
1999 Landrover Discovery II
1971 Corvette

Gone: 97 Cabrio, 83 240D, 93 VW Eurovan, 95 Volvo 850, 93 Chevy Astro Van, 77 VW Bus, 99 VW Jetta, 74 VW Bus
Reply With Quote
  #9
Old 09-20-2006, 07:40 PM
Registered User

Join Date: Apr 2006
Location: Aiken, SC
Posts: 204
Picture 1 shows the replacement cord I used, and the crimped on metal sleeves that secured it.
Picture 2 and 3. I used four number 10 washers, and looped the elastic through them and tied a square knot (retired sailor). I stuck the flat elastic into the slots on the seat back.
Attached Thumbnails
Rear seat elastic holder?-mvc-022s.jpg   Rear seat elastic holder?-mvc-023s.jpg   Rear seat elastic holder?-mvc-024s.jpg
__________________
2000 C230 Kompressor "Frosty"

2007 PT Cruiser
2001 VW TDI Beetle
1999 Landrover Discovery II
1971 Corvette

Gone: 97 Cabrio, 83 240D, 93 VW Eurovan, 95 Volvo 850, 93 Chevy Astro Van, 77 VW Bus, 99 VW Jetta, 74 VW Bus
Reply With Quote
  #10
Old 09-20-2006, 07:44 PM
Registered User

Join Date: Apr 2006
Location: Aiken, SC
Posts: 204
Picture 1 and 2 show the washers inserted into the slots.

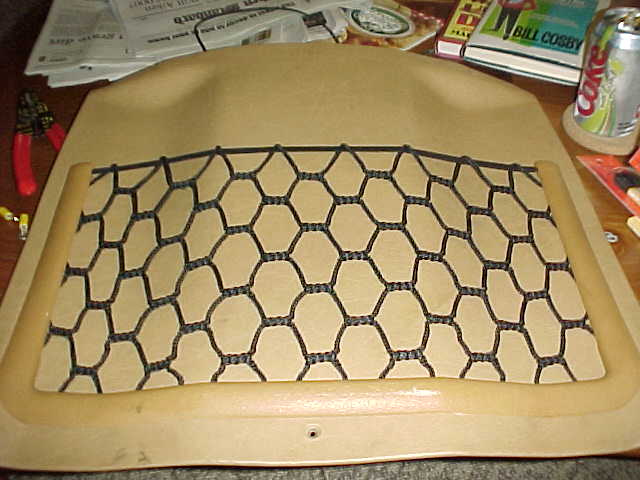

Picture 3 show the seat back put together.

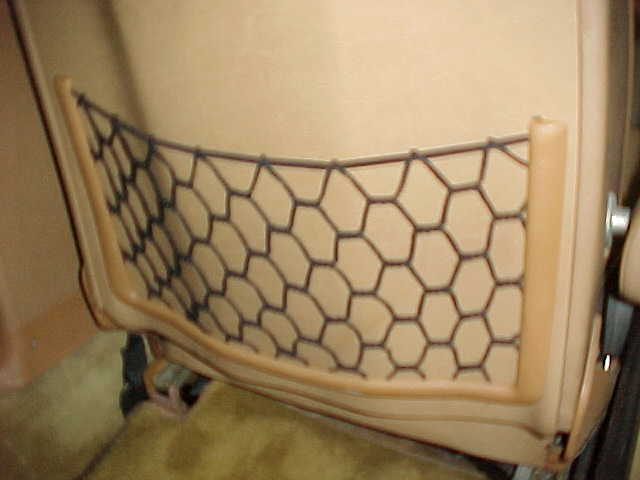

Picture 4 shows the back re-installed.

I did both seat backs in 30 minutes, using 89 cents of elastic and four used washers.

I thank those who post here, you've saved me money and time beyonf belief, hope this helped someone. Chuck
Attached Thumbnails
Rear seat elastic holder?-mvc-025s.jpg   Rear seat elastic holder?-mvc-026s.jpg   Rear seat elastic holder?-mvc-027s.jpg   Rear seat elastic holder?-mvc-028s.jpg
__________________
2000 C230 Kompressor "Frosty"

2007 PT Cruiser
2001 VW TDI Beetle
1999 Landrover Discovery II
1971 Corvette

Gone: 97 Cabrio, 83 240D, 93 VW Eurovan, 95 Volvo 850, 93 Chevy Astro Van, 77 VW Bus, 99 VW Jetta, 74 VW Bus
Reply With Quote
  #11
Old 01-10-2007, 02:24 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,274
Quote:
Originally Posted by N41EF View Post
Picture 1 and 2 show the washers inserted into the slots.
Picture 3 show the seat back put together.
Picture 4 shows the back re-installed.

I did both seat backs in 30 minutes, using 89 cents of elastic and four used washers.

I thank those who post here, you've saved me money and time beyonf belief, hope this helped someone. Chuck
Excellent! thanks.
ps did you notice that in your picture you have both a bill cosby book and a coke can? ... I am strange. memories of an eddy murphy skit...
