  #1
Old 08-30-2006, 12:52 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694
W123 armrest. What I have and what you have. Are they the same?

Have needed a new armrest for the 82 300TD since the front top corner is torn. I could either buy a new cover ($75) or buy a used armrest.
Got a used one, in very good shape from a guy on ebay ($45).
But the mount and size are different than what I have on the wagon.

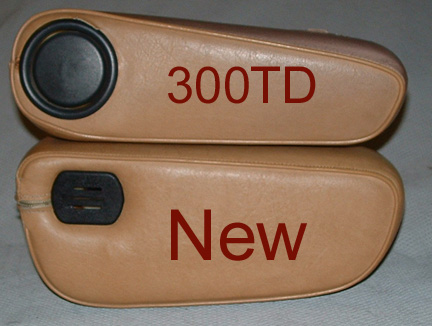

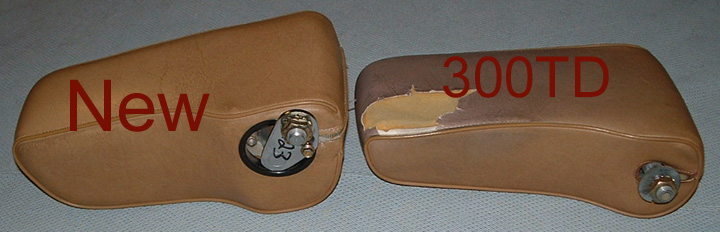

Below are pictures of the new one and the old one that came of the car that I bought in 1990. To my knowledge the seats and armrest are original to the car. My parts book, dated 02/82, shows the new armrest.
I called the dealer and their computer shows the same part for the 300D and 300TD for an 82.
My daughters cars armrest, 1983 240D, is just like mine.
The new armrest uses a spring tension to control it's 90 degreee movement. Mine and my daughters is free swinging and has a lock when at the full verticle position.

Sooooooooooooooo. Was there a change in the armrest???? Who has what and what year is your car?

The new one will not mount to the frame and is to tall for the wood box we have in the carpeted area. I'm trying to figure this out so I can fix this unsightly armrest.

Thanks

Dave
Attached Thumbnails
W123 armrest. What I have and what you have. Are they the same?-armrest-internet-1.jpg   W123 armrest. What I have and what you have. Are they the same?-armrest-intermet-2.jpg   W123 armrest. What I have and what you have. Are they the same?-armrest-internet-3.jpg   W123 armrest. What I have and what you have. Are they the same?-armrest-internet-4.jpg   W123 armrest. What I have and what you have. Are they the same?-armrest-internet-5.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #2
Old 08-30-2006, 01:23 AM
Registered User

Join Date: Jan 2002
Posts: 18,354
For what's it's worth, my 85 300TD armrest looks like your old one. At least the round locking push button looks the same. It locks in the upright position.
The armrest in our 77 300d is different. It has no locking mechanism and is lower on the seat than the 85. (too low to comfortably rest my arm on it).
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #3
Old 08-30-2006, 01:34 AM
redassag00's Avatar
I like OM603's

Join Date: Nov 2005
Location: Katy, TX
Posts: 1,232
I have the one on the top. The bottom one is from a really old car IIRC>
__________________
91 350SD
15 F250 6.7L
97 FZJ80 LX450
Overseas Rides:
Santa Fe LWB 2.2L CRDi
GWM Steed 2.0 CRD
Reply With Quote
  #4
Old 08-30-2006, 01:48 AM
JimmyL's Avatar
Rogue T Intolerant!!!

Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,673
Dave,
My '85 wagon also has the smaller of the two armrests, with the round unlock button. Seems like my older wagon had a slightly larger armrest, but it had NO unlock button, as it didn't lock. I'll see if I can scrounge an old photo. Seems like I used to have one.....
Jimmy
__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John
Reply With Quote
  #5
Old 08-30-2006, 02:07 AM
ForcedInduction
Guest

Posts: n/a
My 240D has no lock on the armrest and sits lower than my TD did.
Reply With Quote
  #6
Old 08-30-2006, 12:09 PM
Rudolphrocks's Avatar
Dazed and Confused

Join Date: Jul 2006
Location: Rockford, MI
Posts: 148
Quote:
Originally Posted by ForcedInduction View Post
My 240D has no lock on the armrest and sits lower than my TD did.
Of course it does, the 240D is a speed demon, so fast that you wouldn't even think about using the armrest.

Peace
1975 240D
Reply With Quote
  #7
Old 08-30-2006, 02:55 PM
rg2098's Avatar
Detailing Moderator

Join Date: Jun 2004
Location: Rochester Hills, MI
Posts: 2,415
The "new" one looks like the one that was in my W114.
__________________
Adam Lumsden
(83) 300D
Vice-President of the MBCA International Stars Section
Reply With Quote
  #8
Old 08-30-2006, 03:42 PM
KylePavao's Avatar
Diesel Fanatic

Join Date: Jan 2005
Location: Tiverton Rhode Island/University of Rhode Island
Posts: 400
Yep

^ Guy is right....

The one without the locking mechanism is the exact one in the W115 300D. I believe they may have used them on early W123's as well...I think they changed them when the changed the headrests from the "pointed" ones to the normal oval-like ones. Early W123's share MANY parts with the W115 chassis....
__________________
http://www.betten.mercedescenter.com...n_banner_1.jpg
1976 300D
190,000 Miles
Colorado Beige

1975 300D
Parts Car
78,000 Miles
Rustbucket
Also Colorado Beige

1984 190D 2.2 (Dad's)
156,000 miles
Champagne Metallic Clearcoat
Reply With Quote
  #9
Old 08-30-2006, 05:56 PM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,694
What I found out at the dealer. The parts person checked on the 82 300TD only. She was looking at a 123.193.
As of VIN 193007692 the part changes to a 126 part number form the 123 part number prior to that VIN number.
The newer part number is 126 970 23 30 for the new designed armrest.
My car has a 5/82 build date and my last 6 of the VIN are 011570. So I figure that if you have a car that was built sometime between Jan-Mar 1982 you are near the changeover date and may have the new 126 armrest. This probably applies to the 300D/CD/TD and 240D.

Dave
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
  #10
Old 08-30-2006, 06:34 PM
Registered User

Join Date: Jul 2006
Location: Near Atlanta, GA
Posts: 83
Looks like you might be able to swap the mounting hardware and button if it will fit size wise....
__________________
1984 Astral Grey 300TDT - The French Fry
1979 Yellow 300SD - The Pomme - SOLD
1985 Light Ivory 300DT - Fritz
1987 Anthracite Grey 300SDL - ?
Reply With Quote
  #11
Old 08-30-2006, 10:06 PM
xafman

Join Date: Jul 2006
Location: Tulsa, OK
Posts: 37
My 84 TD has an armrest like your old one. I put a set of sheepskin covers on my vehicle today and I had ordered the set with the armrest cover included. It was quite a juggling act putting the drivers cover on the seat
then cutting the hole for the armrest mounting post, then working under the seat cover to get everything reassembled. BTW, the mounting nut for the
armrest turned out to be 1 1/16 so an inch sized socket was perfect. The
armrest cover hides any defects on the factory upholstery.
__________________
xafman
1984 300TD 182,000 mi FOR SALE
1972 Chev Longhorn PU--restored
1994 Buick Roadmaster 7200 mi (actual)
Reply With Quote
  #12
Old 09-02-2006, 09:36 PM
MBeige's Avatar
Registered User

Join Date: Apr 2005
Location: SoCal
Posts: 3,746
The 82 and up had the button, the 81 and below had the one without any button.
Reply With Quote
  #13
Old 09-02-2006, 09:38 PM
Craig
Guest

Posts: n/a
Quote:
Originally Posted by MBeige View Post
The 82 and up had the button, the 81 and below had the one without any button.
My 82 doesn't have the button, but my 83 does.
Reply With Quote
  #14
Old 09-03-2006, 02:07 AM
JimmyL's Avatar
Rogue T Intolerant!!!

Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,673
Here is a pick of the armrest from my long gone '80 wagon, which looks like the one you received.
Attached Thumbnails
W123 armrest. What I have and what you have. Are they the same?-mb-pics-021.jpg   W123 armrest. What I have and what you have. Are they the same?-mb-240d-1980-090.jpg
__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John

Last edited by JimmyL; 12-13-2006 at 03:03 PM.
Reply With Quote
