Crankcase ventilation/Oil Separator Mod

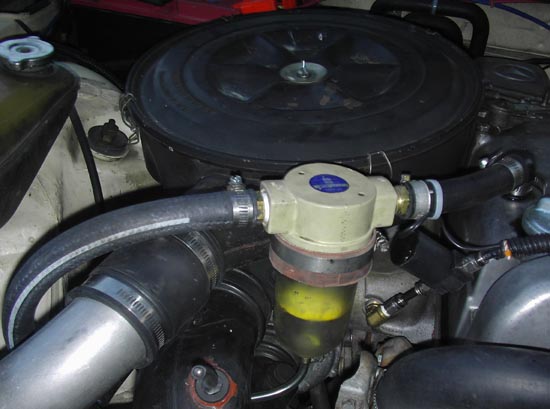

I got a free air line water/oil separator from work. The bowl has a small crack and hissed with the 160psi line pressure. It works with centrifugal force and a porous plastic filter.

So far it's working pretty well. After a hard run to get the engine hot, it no longer looks like I have a steam engine under my car. The exit is still vented to the atmosphere until I'm satisfied the system works. The air cleaner and u-tube are from a 79 300SD (The reason for the lack of an CCV port in the lid and the plug in the u-tube.)

It's already gathered a few drops worth of oil, but it's only been on for 30 miles.
Attached Thumbnails
Crankcase ventilation/Oil Separator Mod-lmnf.jpg   Crankcase ventilation/Oil Separator Mod-lmnccv.jpg
Reply With Quote
  #2
Old 09-01-2006, 12:51 AM
bgkast's Avatar
Rollin' on 16s

Join Date: Dec 2005
Location: Vancouver WA
Posts: 6,528
Cool. What do they cost for us people with-out such job perks and where can we get one?

Did you just have the hose venting to the atmosphere before you put it on?
__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine
Reply With Quote
  #3
Old 09-01-2006, 12:54 AM
Johnhef's Avatar
Senior Member

Join Date: Feb 2005
Location: Frederick, Md
Posts: 4,514
Where do you have your drip tube attached to?

edit: duh same spot as mine.. for some reason I was thinking you had a 116 SD engine
__________________


1980 500SE/AMG Euro
1981 500SEL Euro
1982 380SEL
1983 300TD
1983 500SEC/AMG Euro
1984 500SEC
1984 300TD Euro
1986 190E 2.3-16
1986 190E 2.3
1987 300D
1997 C36 AMG
2003 C320T 4matic

past: 1969 280SE 4.5 | 1978 240D | 1978 300D | 1981 300SD | 1981 300SD | 1982 300CD | 1983 300CD | 1983 300SD | 1983 380SEC | 1984 300D | 1984 300D | 1984 300TD | 1984 500SEL | 1984 300SD | 1985 300D | 1986 300E | 1986 560SEL | 1986 560SEL/Carat | 1987 560SEC | 1991 300D 2.5 | 2006 R350
Reply With Quote
  #4
Old 09-01-2006, 01:05 AM
ForcedInduction
Guest

Posts: n/a
Quote:
Originally Posted by bgkast View Post
Cool. What do they cost for us people with-out such job perks and where can we get one?

Did you just have the hose venting to the atmosphere before you put it on?
In the $60-100 range depending on size and brand.
Yes, it was the same as now, just no separator.

Quote:
Originally Posted by Johnhef View Post
Where do you have your drip tube attached to?

edit: duh same spot as mine.. for some reason I was thinking you had a 116 SD engine
Actually, I have the drip tube going into a pepsi bottle sitting in the old A/C receiver/dryer hole. I just want to see how much oil it removes and how well it drains. (And it's a 300SD/300TD combo engine, BTW. )
Reply With Quote
  #5
Old 09-01-2006, 01:08 AM
PanzerSD's Avatar
Schießenstern

Join Date: Jan 2006
Location: Saskatchewan Canada
Posts: 2,340
By the looks of your Oil cap you got some good blowby happeing!

but the Oil separator idea is pretty ingenious! I'll have to try that!
I HATE how oil seeps from my aircleaner and fouls my nice clean turbocharger!
__________________

Last Updated: 09/1/12 : Waiting for the $$
1998 Ford Windstar : Winter Beater
1978 450 SEL : 087719 : M117.986 - Patiently waiting; Rust repair in the meantime.
____________________________________________________________
FACEBOOK:
PANZER450
Reply With Quote
  #6
Old 09-01-2006, 01:16 AM
bgkast's Avatar
Rollin' on 16s

Join Date: Dec 2005
Location: Vancouver WA
Posts: 6,528
Spendy. Next time you find a cracked one send it my way.
__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine
Reply With Quote
  #7
Old 09-01-2006, 04:22 AM
Admiral Ahani's Avatar
Older = Better

Join Date: Sep 2003
Location: San Francisco
Posts: 217
I've been looking high and low for a used 240D oil separator to no avail. I'll try finding one of these now!
__________________
'82 300TD - 330k miles, 3rd row seat deleted, w126 leather front seats, w126 front brakes, 2.47 final drive, burlwood shifter, electric locks w/ keyless entry
'77 6.9 - a light restoration project
'87 Porsche 944 turbo (DE car)
Reply With Quote
  #8
Old 09-01-2006, 08:27 AM
Johnhef's Avatar
Senior Member

Join Date: Feb 2005
Location: Frederick, Md
Posts: 4,514
I used a 240D oil seperator on mine, works great
__________________


1980 500SE/AMG Euro
1981 500SEL Euro
1982 380SEL
1983 300TD
1983 500SEC/AMG Euro
1984 500SEC
1984 300TD Euro
1986 190E 2.3-16
1986 190E 2.3
1987 300D
1997 C36 AMG
2003 C320T 4matic

past: 1969 280SE 4.5 | 1978 240D | 1978 300D | 1981 300SD | 1981 300SD | 1982 300CD | 1983 300CD | 1983 300SD | 1983 380SEC | 1984 300D | 1984 300D | 1984 300TD | 1984 500SEL | 1984 300SD | 1985 300D | 1986 300E | 1986 560SEL | 1986 560SEL/Carat | 1987 560SEC | 1991 300D 2.5 | 2006 R350
Reply With Quote
  #9
Old 09-01-2006, 08:30 AM
Diesel Giant's Avatar
Registered User

Join Date: Oct 2004
Location: Loganville/Atlanta
Posts: 2,156
The can in the stock air cleaner is an oil/vapor seperator. The vapor is drawn into the intake and the oil condenses out of the vapor and runs back down into the oil pan. Well that is what is supposed to happen. Not having it done in the air cleaner will prevent oil residue problems.
__________________
1981 300D 147k
1998 VW Jetta Tdi 320k
2001 Dodge Ram 2500 141k
1979 300D 234k (sold)
1984 300D "Astor" 262k(sold)
Mercedes How-To and Repair Pictorials
I love the smell of diesel smoke in my hair
Reply With Quote
  #10
Old 09-01-2006, 09:47 AM
Craig
Guest

Posts: n/a
Quote:
Originally Posted by Got_The_Benz View Post
By the looks of your Oil cap you got some good blowby happeing!
I solved that by cutting a new gasket and installing it on top of the existing gasket. The original gasket seems to just dry out and leak. I should just order a new one sometime:

http://catalog.eautopartscatalog.com/mercedesshop/sophio/quote.jsp?clientid=catalog.mercedesshop&cookieid=1CQ0J3JZ41VY0KXEPH&baseurl=http://catalog.peachparts.com/&partner=mercedesshop&year=1982&product=A6150-64628&application=000001211
Reply With Quote
  #11
Old 09-01-2006, 10:28 AM
BioBens's Avatar
Registered User

Join Date: Jul 2005
Location: Montana
Posts: 267
blowby diagnosis?

[QUOTE=Got_The_Benz;1263894]By the looks of your Oil cap you got some good blowby happeing!

Oil seeping from the filler cap's an indicator of blowby?
Reply With Quote
  #12
Old 09-01-2006, 10:35 AM
Craig
Guest

Posts: n/a
Quote:
Originally Posted by BioBens View Post
Oil seeping from the filler cap's an indicator of blowby?
Usually its just an indicator of a worn out cap gasket, or possibly a restriction in the vent line. All engines have some blowby, it should vent through the vent line, and the cap should be more or less leak tight.
Reply With Quote
  #13
Old 09-01-2006, 07:22 PM
ForcedInduction
Guest

Posts: n/a
Quote:
Originally Posted by BioBens View Post
Oil seeping from the filler cap's an indicator of blowby?
Not really. Just a leaky seal. I wiped it off and put some new wheel bearing grease on it today. That should last for the next few oil changes. Doing the cap dance test makes a little jiggling with the breather plugged.

I'd be all over a 240D oil separator, if I could find one. Unfortunately my 80 was too early to have one as stock equipment.

The stock setup inside the aircleaner works OK, but I'd prefer my intake air to be oil free. When the VNT gets installed I want it to stay clean.
Reply With Quote
  #14
Old 09-02-2006, 09:52 AM
aklim's Avatar
Registered User

Join Date: Apr 2000
Location: Location: Hartford, WI, USA
Posts: 5,688
On the Ford Powerstroke boards, it is common for us to vent it or have it plumbed into the rear section of the exhaust pipe to create some sort of vacuum to suck the fumes out.
__________________
01 Ford Excursion Powerstroke
99 E300 Turbodiesel
91 Vette with 383 motor
05 Polaris Sportsman 800 EFI
06 Polaris Sportsman 500 EFI
03 SeaDoo GTX SC Red
03 SeaDoo GTX SC Yellow
04 Tailgator 21 ft Toy Hauler
11 Harley Davidson 883 SuperLow
Reply With Quote
  #15
Old 09-02-2006, 01:31 PM
retmil46's Avatar
Registered User

Join Date: Jun 2006
Location: Mooresville, NC
Posts: 344
I use a Mann and Hummel Provent 200 on both my '05 Jeep Liberty CRD and '87 300D Turbo. Designed to handle the CCV on up to a 500 hp diesel and 200 liters/minute of air flow. Distributor said that on the size engine I was putting them on, it'd be upwards of 2 years or more before I'd have to worry about changing the filter element.

When I picked up the '87 with 132K on it, it was obvious that the intake had never been cleaned out. So much oil had leaked out of the boot on the suction side of the turbo, and ran down the side of the engine, that at first glance I thought the turbo drain seals had gone south. Nearly 1/4" thick oil and gunk all thru the intake. Overboost sensor and ALDA ports were completely stopped up.

Cleaned out the intake, ALDA, and all the plastic lines, and installed a Provent. Like a totally new car, will take off and run like a scalded ape now.
__________________
Just say "NO" to Ethanol - Drive Diesel

Mitchell Oates
Mooresville, NC
'87 300D 212K miles
'87 300D 151K miles - R.I.P. 12/08
'05 Jeep Liberty CRD 67K miles
Grumpy Old Diesel Owners Club
Reply With Quote
