Parts Catalog Accessories Catalog How To Articles Tech Forums
Call Pelican Parts at 888-280-7799
Shopping Cart Cart | Project List | Order Status | Help




Go Back   PeachParts Mercedes-Benz Forum > Mercedes-Benz Tech Information and Support > Diesel Discussion

Reply

LinkBack Thread Tools Display Modes
  #1
Old 04-04-2007, 07:42 AM
mrhills0146
Guest

Posts: n/a
Unhappy Symptoms of bad CCU

1983 300CD. No response from CCU - no blower motor, no heater, no A/C, no defrost. No nothing.



I've checked the common-sense stuff. Fuse is fine - not blown, and made sure that it's making good contact w/ the bus. Blower motor is fine. Nothing jammed in the squirrel cage, and when I remove the blower motor and jump it to 12V from the battery, it works just fine.

No response from the CCU regardless of setting - doesn't work at low temp, high temp, low fan speed, auto fan speed, high fan speed. Nothing.

Is this symptomatic of a bad CCU? What else do I need to do to troubleshoot before I order a rebuilt unit? Not sure if the one in the car is original - I suspect that it is.
Reply With Quote
  #2
Old 04-04-2007, 07:58 AM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,076
typically, even with a bad ccu, the defrost (or left-most button) should turn the fan on.

Did it ever work b4?
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #3
Old 04-04-2007, 08:08 AM
Bruce Kennedy's Avatar
Glutton for punishment

Join Date: Oct 2006
Location: Cincinnati Ohio
Posts: 230
ccu

Sounds like its not getting power from the key switch. My td's cc only works if I turn the key back just a little after starting it.
__________________
a few mb diesels
Reply With Quote
  #4
Old 04-04-2007, 08:09 AM
mrhills0146
Guest

Posts: n/a
Yes - it's worked for as long as I can remember.

This happened a couple months ago - I removed the blower motor, tested it, checked the fuses, etc. and the problem went away. Not exactly sure what it was, probably bad contact on the fuse (?) but this time I have checked, re-checked, double, and triple-checked that damned fuse and it seems to be fine.
Reply With Quote
  #5
Old 04-04-2007, 08:26 AM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,076
Have you tried jumping the fuse holder just to test? Make sure you remove the jumper right away after done testing whether you get it to work or not. If it works when you jump fuse then it must be a bad fuse.

If its a bad fuse and you put a new one that makes it work but blows again, theres a problem somewhere... like something is shorting out.... or locking up. Remember, the fuse is a good thing. It protects the circuit from damage.

You didn't really explain how this started. Did it just kick out suddenly? exhibited symptoms first? you messed with something that my have caused it?
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #6
Old 04-04-2007, 08:58 AM
mrhills0146
Guest

Posts: n/a
I do need to try jumping the fuse holder to test. You are right that I need to find the root of the problem if it turns out to be the fuse - the CCU shouldn't routinely blow fuses. If it is, there's a problem and the fuse is protecting my CCU and blower motor...

No symptoms exhibited. Went to turn blower motor (vents) on yesterday morning on my way into the office and... ...nothing...
Reply With Quote
  #7
Old 04-04-2007, 09:02 AM
hitwtom's Avatar
Registered User

Join Date: Jan 2007
Location: Maryland (Washington DC area)
Posts: 263
Almost exactly the symptoms my '82 300D had. I removed the CCU, resoldered all of the connections on the circuit board and re-installed. Has been working fine since.
__________________
'83 240D (for sale)
'84 Harley FXRT
'85 300CD Turbo (Sold)
'85 500SEC (for sale)
'04 Dodge Dakota Quad
'06 Harley FLHTCI
'97 SL320
Reply With Quote
  #8
Old 04-04-2007, 09:20 AM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,076
Quote:
Originally Posted by hitwtom View Post
Almost exactly the symptoms my '82 300D had. I removed the CCU, resoldered all of the connections on the circuit board and re-installed. Has been working fine since.
I may have to do this on my 84D. The automatic temp system works intermittently but considering its mileage, its understandable I guess.

Was the resoldering work pretty challenging? I've not seen the inside of the ccu yet let alone take one down. Did you have to use a marnifying glass?

Did you use a soldering gun or iron? How much did you have to do?
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #9
Old 04-04-2007, 09:47 AM
Magoo's Avatar
Grease Collector

Join Date: Oct 2006
Location: Pennsylvania
Posts: 333
I resoldered mine a couple of months ago with an pencil-tip iron. The hardest part was prying open the plastic casing without breaking it. It's not a multi-layered board like most things have today, and the traces are rather large, so it was pretty easy to just remelt everything.
__________________
'83 300D Turrrbo 295K miles
Reply With Quote
  #10
Old 04-04-2007, 09:50 AM
dannym's Avatar
I'm not here

Join Date: Oct 2004
Location: Deltona, Florida
Posts: 2,360
Could it be this:
http://catalog.peachparts.com/item.wws?sku=R2028-15177

Or maybe this?:
http://catalog.peachparts.com/item.wws?sku=R2022-50062

I happen to have both of them available if you need them.

Danny
__________________
1984 300SD Turbo Diesel 150,000 miles

OBK member #23

(\__/)
(='.'=) This is Bunny. Copy and paste bunny into your
(")_(") signature to help him gain world domination
Reply With Quote
  #11
Old 04-04-2007, 10:37 AM
hitwtom's Avatar
Registered User

Join Date: Jan 2007
Location: Maryland (Washington DC area)
Posts: 263
Quote:
Originally Posted by Magoo View Post
I resoldered mine a couple of months ago with an pencil-tip iron. The hardest part was prying open the plastic casing without breaking it. It's not a multi-layered board like most things have today, and the traces are rather large, so it was pretty easy to just remelt everything.

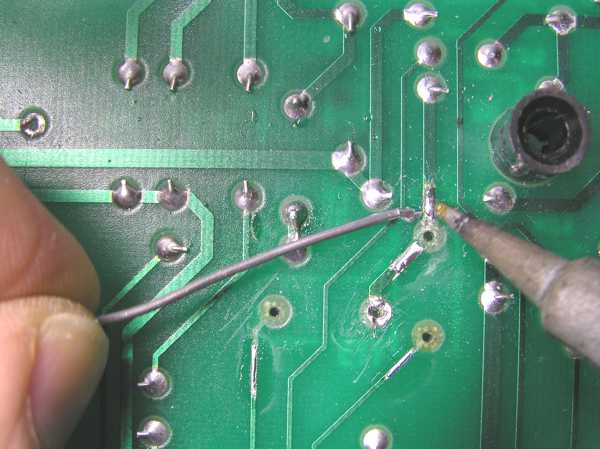

What Magoo said, use a pencil type iron (not a big Weller gun) just touch the tip to each place where a wire comes through the board, when it gets kind of glassy looking (solder becomes liquid) keep holding the tip where it is and just barely touch a new piece of solder (rosin core) to the spot. Remove the tip of the iron from the spot, let cool and proceed to the next. As I recall, like Magoo said, the hardest part was getting to the board. To get the plastic cover off I had to remove the fan speed switch housing which requires slight prying in 2 directions at once. Picture #1 - CCU removed from dash. Picture 2 - What you're going to be working on. Picture 3 - Soldering. Hope this helps some.
Attached Thumbnails
Symptoms of bad CCU-ccu.jpg   Symptoms of bad CCU-circuit-board-1.jpg   Symptoms of bad CCU-soldering-1.jpg
__________________
'83 240D (for sale)
'84 Harley FXRT
'85 300CD Turbo (Sold)
'85 500SEC (for sale)
'04 Dodge Dakota Quad
'06 Harley FLHTCI
'97 SL320
Reply With Quote
  #12
Old 04-04-2007, 01:46 PM
Registered User

Join Date: Jun 2004
Location: West of Ft. Worth. TX
Posts: 4,078
A very likely cause are the solder joints where the boards connect. They are arranged in an "H" pattern and very often the solder develops cracks where the boards meet. Most definitely use a pencil iron.
__________________
Sam

84 300SD 350K+ miles ( Blue Belle )
Reply With Quote
  #13
Old 04-04-2007, 02:34 PM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,076
Quote:
Originally Posted by hitwtom View Post
....Picture #1 - CCU removed from dash. Picture 2 - What you're going to be working on. Picture 3 - Soldering. Hope this helps some.
I thought the ccu is behind the glove compartment ... not the on behind the dash that you show....
Attached Thumbnails
Symptoms of bad CCU-ccu.jpg
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #14
Old 04-05-2007, 12:42 AM
Registered User

Join Date: Jun 2004
Location: West of Ft. Worth. TX
Posts: 4,078
To split hairs........what was shown in the first photos is the ACC Pushbutton Controller, while the second photo is a Temp. Controller .......in other words neither of them is a "CCU" (according to the schematics I have)
__________________
Sam

84 300SD 350K+ miles ( Blue Belle )
Reply With Quote
  #15
Old 04-05-2007, 07:57 AM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,076
Quote:
Originally Posted by SD Blue View Post
To split hairs........what was shown in the first photos is the ACC Pushbutton Controller, while the second photo is a Temp. Controller .......in other words neither of them is a "CCU" (according to the schematics I have)
Yeah... but I believe the part in question is the one behind the glove compartment....
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 05:28 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2018, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
