$15 Redneck Slide hammer and Prechamber adapter (Pics)

Yep, its another "I'm too cheap to spend $200 on a tool I'll use a few times.." thread. But this one has a cheap solution. I spent $15 on making my slide hammer and thread adapter to pull the precombustion chamber on a 602. It can be done on a 61x just as badly and easily. Whether you would want to or not is another question, probably best left to a psychologist to answer. But I like making stuff so I did (got to justify buying that mig welder to the wife perhaps?)

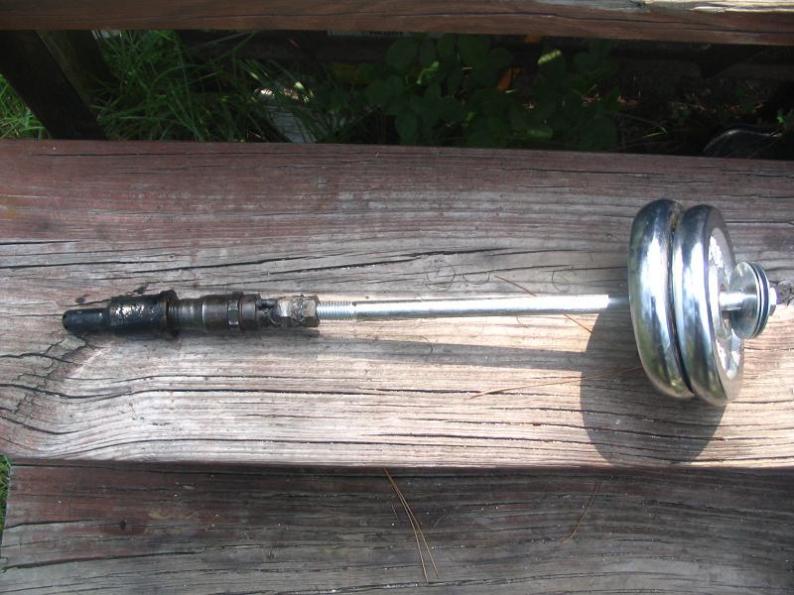

Basically what I did was make a slide hammer from a 1/2" bolt, some washers and barbell weights. The nut that goes on the bolt is welded to a 1/2" x 20 thread nut which screws onto the top of the spare injector you sacrifice to being the thread adapter. I welded the top of the spare sacrificial injector to the nut because otherwise it strips the nut's thread when you use the slide hammer. Cheap Chinese steel you know. I had the spare injector lying around from a visit to the local junkyard ($11). You could probably use jb weld to weld the stuff together and it would work just fine. All you're really doing is going from the 1/2" bolt to the injector base thread.

Here's a closeup of the bottom piece. From the right it goes - 1/2 inch bolt, 1/2" bolt nut welded to 1/2" x 20 self locking nut welded to top half of injector body screwed into bottom of injector screwed into prechamber.



You screw the welded nut concoction off the 'slide hammer' bolt and screw the injector into the prechamber. Then you screw the bolt back onto the injector and use it just like a slide hammer. I initially used 3lbs of weight, but it wasn't getting anywhere. I put on 6 lbs and the pc came out after a few good whacks.


Tools
Mig Welder (would probably work with JB Weld)


Parts:
1 x Long 1/2 inch bolt - (Lowes part number 61845)
1 x nut for long bolt - (Lowes part number 63304)
4 x Washers - (Lowes part number 68885 )

You also need a 1/2 x 20 thread nut to go on the top of the injector. The only 1/2" nuts with a 20 thread I found were self locking nuts. You'll need one of the those. 1/2" diameter, 20 thread.

6 lbs or so of barbell weights (those things that have been lying in the garage for years...)

1 spare injector top

Assemble and apply to cylinder head. Step back and bask as crowds cheer and neighbors ask for your autograph....and your wife doesn't scream because you spent more money on tools for the car...
Attached Thumbnails
 Redneck Slide hammer and Prechamber adapter (Pics)-prechamber001-medium.jpg    Redneck Slide hammer and Prechamber adapter (Pics)-prechamber003-medium.jpg
__________________
1983 240D Silver/Blue "Sadie", unknown miles. 100k miles on WVO single tank, converted to 2 tank about 10k miles ago, FPHE, Injector Heaters, Aux Fuel pump. Alcohol/Water injection. Frantz oil bypass filter
1992 300D 2.5 Turbo Green/Tan "Jade" 267K miles Stock.
1992 300D 2.5 tan/tan "Rocky" on 2 tank WVO. Pressure actuated Turbo "rat's nest" surgery completed. 197k miles

Last edited by whunter; 02-28-2011 at 05:16 PM. Reason: attached pictures
Reply With Quote
  #2
Old 08-12-2007, 12:52 PM
gatorblue92's Avatar
Save the manuals!

Join Date: Jan 2006
Location: Delaware
Posts: 3,343
not bad at all
__________________
1977 MB 240D 4 speed 145K - Nearly Perfect
1993 MB 400E 212K - New Project
2014 Honda CR-V 83K - Wife's DD
2018 Ford F150 5.slow 12K - My DD

1979 MB 280E 90K - Sold
1983 MB 240D 238K - Scrapped
1984 MB 300D 347K? - Sold
1984 MB 300TD Wagon - 188k - Sold
1987 MB 300E 5 speed 258K - Scrapped
1991 MB 300TE 5 speed 276K - Sold
1993 MB 400E 130K - Sold
1995 MB E320 Wagon 190k - Sold
Reply With Quote
  #3
Old 08-12-2007, 01:32 PM
Mister Byrnzoil's Avatar
Currently Benzless :(

Join Date: Jan 2005
Location: Palm Springs, CA
Posts: 777
I love homemade tools that work.

FYI-normal threaded rod is junk steel, don't rely on it unless you specifically purchase Rated threaded rod.
__________________
Cheers,
Robert
Reply With Quote
  #4
Old 08-12-2007, 01:33 PM
TheDon's Avatar
Open Discussion Moderator

Join Date: Oct 2005
Posts: 13,208
if it lasts for 6 cylinders than it is good...

Homemade tools are sweeet
Reply With Quote
  #5
Old 08-12-2007, 03:41 PM
Registered User

Join Date: May 2005
Location: Fernandina Beach, Florida
Posts: 626
Yes, exactly. 1 rod costs about $1 and is easily removed and replaced.

I have another 4 prechambers to do probably, so I'll be testing it to at least 5!
__________________
1983 240D Silver/Blue "Sadie", unknown miles. 100k miles on WVO single tank, converted to 2 tank about 10k miles ago, FPHE, Injector Heaters, Aux Fuel pump. Alcohol/Water injection. Frantz oil bypass filter
1992 300D 2.5 Turbo Green/Tan "Jade" 267K miles Stock.
1992 300D 2.5 tan/tan "Rocky" on 2 tank WVO. Pressure actuated Turbo "rat's nest" surgery completed. 197k miles
Reply With Quote
  #6
Old 08-12-2007, 05:23 PM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,327
Interesting. The om60X does not have a lock ring?
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1987 300D Sturmmachine
1991 300D Nearly Perfect
1994 E320 Cabriolet
1995 E320 Touring
2001 Eurovan FOR SALE
1985 300D car, sold and missed.
OBK #42
Reply With Quote
  #7
Old 08-12-2007, 05:43 PM
ForcedInduction
Guest

Posts: n/a
The problem is that it won't work on the OM61x engines. The injectors thread into the lock ring on them.
Reply With Quote
  #8
Old 08-12-2007, 08:06 PM
Registered User

Join Date: May 2005
Location: Fernandina Beach, Florida
Posts: 626

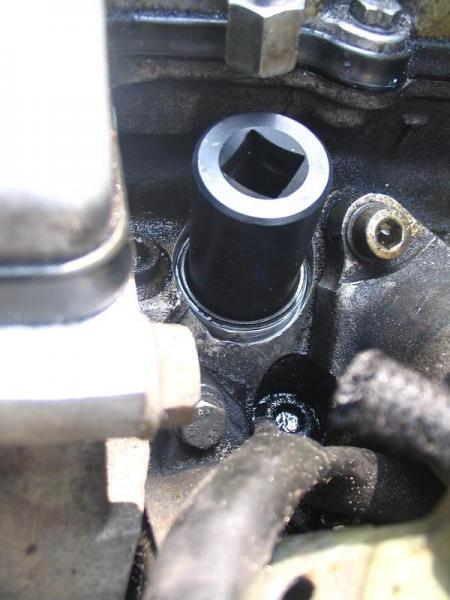

Yes, the 60x has a locking ring. Depending on the engine it is either the splined type or the 61x type with a groove cut in it. Here's a pic of the splined type half way in with the splined socket in it.
