Go Back   PeachParts Mercedes-Benz Forum > Mercedes-Benz Tech Information and Support > Diesel Discussion

Reply

LinkBack Thread Tools Display Modes
  #1
Old 01-31-2008, 09:53 AM
Zack

Join Date: Nov 2007
Location: Knoxville, TN
Posts: 337
Engine Shocktology

I am replacing my left engine shock on my 84 300D. And of course I was so excited to finally get the old one off that I forgot how it went together. I have a picture of the new shock w/ all the hardware on it. Will someone please tell me if that is right??

Also the engine shock mount is shot. I was just wondering if that would be ok to put back on temporarily. There is a pic of that too

http://s227.photobucket.com/albums/dd303/zsmith29/?action=view&current=DSC01955.jpg


http://s227.photobucket.com/albums/dd303/zsmith29/?action=view&current=DSC01954.jpg

Thanks a bunch Guys,
__________________
http://www.libertyagrifuels.com
1984 300D Turbo
1980 300SD Sold
1983 300TD Sold
Dagger 16 ft. Legend Canoe (for the weekends)
Marin Northside Trail Mtn. Bike
Reply With Quote
  #2
Old 01-31-2008, 09:54 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,188
It's nice to know I'm not the only one who does stuff like that.
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
2002 C320 Wagon 113,000 miles
Reply With Quote
  #3
Old 01-31-2008, 10:02 AM
Zack

Join Date: Nov 2007
Location: Knoxville, TN
Posts: 337
Haha, Yeah I fought the busted shock for about 15 minutes and I finally defeated it but lost the next battle. I will regain victory when I step outside in a few minutes to replace it, the mount, the steering gearbox, the power steering hoses, and the oil cooler hoses, oh yeah the engine oil, filter, and power steering fluid.

Pray for me Guys
__________________
http://www.libertyagrifuels.com
1984 300D Turbo
1980 300SD Sold
1983 300TD Sold
Dagger 16 ft. Legend Canoe (for the weekends)
Marin Northside Trail Mtn. Bike
Reply With Quote
  #4
Old 01-31-2008, 10:19 AM
Zack

Join Date: Nov 2007
Location: Knoxville, TN
Posts: 337
Anybody familiar w/ these shocks??
__________________
http://www.libertyagrifuels.com
1984 300D Turbo
1980 300SD Sold
1983 300TD Sold
Dagger 16 ft. Legend Canoe (for the weekends)
Marin Northside Trail Mtn. Bike
Reply With Quote
  #5
Old 01-31-2008, 10:39 AM
Chad300tdt's Avatar
Benzless Scoutmaster

Join Date: May 2007
Location: North Wales, PA
Posts: 4,001
Here's a link to a diagram that shows the order of the parts. I'm doing mine now too, but I'm still trying to get the stripped out lower motor mount bolts off.
www.detali.ru
__________________
Chad
2006 Nissan Pathfinder LE
1998 Acura 3.0 CL
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320
1985 300CD - Gladys
Reply With Quote
  #6
Old 01-31-2008, 11:28 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,350

Engine shock mounting on W123.133 chassis.

FYI:

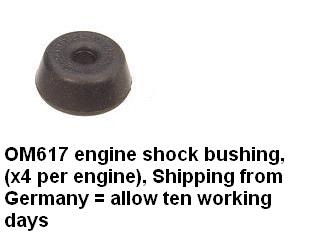

We can get the engine shock lower mount bushing.

OM617 lower engine shock "Bushing"
OM617 lower engine shock "Bushing"
Attached Thumbnails
Engine Shocktology-om617_turbo_engine-shock.jpg   Engine Shocktology-a707573456oes_upper-mount6854644.jpg   Engine Shocktology-om617_lower_engine_shock_bushing.jpg

Last edited by whunter; 02-01-2008 at 03:55 PM.
Reply With Quote
  #7
Old 01-31-2008, 11:35 AM
Biodiesel300TD's Avatar
|3iodiesel300T|)

Join Date: Dec 2004
Location: Albany, OR
Posts: 4,845
Here is the detail photo to help.
You have it right in the photo. The bumber on the right in the photo goes on the frame, and the other end goes through the shock mount. The mount itself goes with the flat side down on the engine mount bracket.

As for install without the mount. You won't be able to really install the shock without the mount. If you do install the shock w/o the mount the shock isn't going to be dong anything anyway so, I would just wait untill you get another mount. If you
Attached Thumbnails
Engine Shocktology-b24105000004.0051.gif
__________________
Andrew
'04 Jetta TDI Wagon
'82 300TD ~ Winnie ~ Sold
'77 300D ~ Sold
Reply With Quote
