I had my door panels off today so I thought I would install the door check straps I got from ************** awhile back. I pulled the old strap out of the passenger door and noticed that the new straps were a different design and use a bolt for the rear mounting point rather than a stud. No problem, I got a bolt and installed the passenger door strap just fine.

I then pulled the driver's side strap and tried to install the new one. I could not get it in to place properly due to the plastic case on the new one hitting a bracket in side the door. No problem again, I just pulled off the plastic case. (picture 1) When I put the strap in I noticed that it did not seem to "seat" tightly against the inside of the door, but I got the bolts to go in fine. When I went to put the pin back in the end of the strap I noticed a bit of a problem (picture 2).

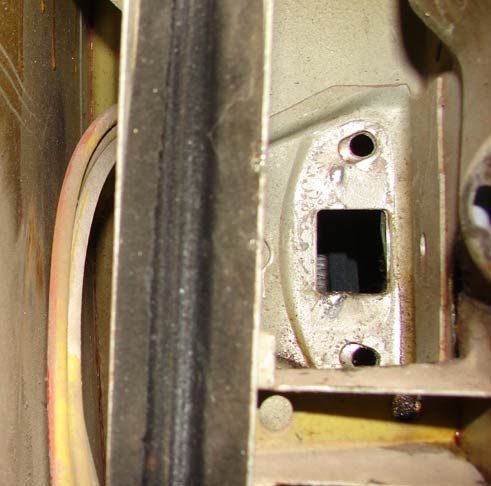

I pulled the strap again and looked inside the door. I noticed that the reinforcement plate inside the door has a certain shape to it that the new straps do not seem to fit. The face of the stock straps are more squared off, while the new straps are not, and therefore do not fit the inside of the door properly. (pictures 3 and 4)

I gave up and put the old strap back in. At least I got the passenger side one replaced. Now I won't have to hear my wife complain about the door hitting her in the butt.

Attached Thumbnails



__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

Is there a brand on the strapp?

__________________
1987 300TD 309, xxx 2.8.2014 10,000 mile OCI


Be careful of the toes you step on today, as they may be connected to the ass you have to kiss tomorrow. anonymous

“Be who you are and say what you feel, because those who mind don’t matter, and those who matter won’t mind.” Dr. Seuss

Meyle

__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

Isn't that OEM? Is there a difference between the 123 and 124 strap? Maybe you got the wrong one from them. It sure looks different than the original one you took off.

__________________
1987 300TD 309, xxx 2.8.2014 10,000 mile OCI


Be careful of the toes you step on today, as they may be connected to the ass you have to kiss tomorrow. anonymous

“Be who you are and say what you feel, because those who mind don’t matter, and those who matter won’t mind.” Dr. Seuss

And I've been saying what about ************** for a long time?

A. You love'm
B. You like'm
C. You hate'm

Or something about them being a ripoff.

__________________
1987 300TD 309, xxx 2.8.2014 10,000 mile OCI


Be careful of the toes you step on today, as they may be connected to the ass you have to kiss tomorrow. anonymous

“Be who you are and say what you feel, because those who mind don’t matter, and those who matter won’t mind.” Dr. Seuss

PART NUMBER SEARCH RESULTS WITH PRICES
Vehicle 1982 Mercedes Benz 300D Turbo
Fastlane: Door Check, Note: Front : Left & Right
http://catalog.peachparts.com/item.wws?sku=W0133-1631075


Vehicle 1982 Mercedes Benz 300D Turbo
Fastlane: Door Check, Note: REAR : Left & Right
http://catalog.peachparts.com/item.wws?sku=W0133-1622003

The originals do not have a name brand on them, just a MB star and 123 part #.

You can see that they are a totally different design. The old ones use a leaf spring and rollers and the new one uses balls with springs.

I've never been a big ************** fan, but they were the only game in town for the bolt on seat adjustment handle replacements and I figured while I was at it I may as well get some door straps...mistake!

Attached Thumbnails



__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

Which car was this for? I think the straps were designed differently depending on year model of your W123. On mine they look exactly like the new one, except I got OE MB not Meyle which I heard is pretty subpar quality.

While I was at it I took the liberty to pain the new strap with the touch up paint I have, let it dry and installed it nicely. Looks original too

__________________
http://farm8.staticflickr.com/7271/7...144c3fc1dc.jpg

This was for the '79

__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine

The ones you got from ************** were the same ones I got from Fastlane and they worked fine. Maybe you need an earlier design.

__________________
1985 CA 300D Turbo , 213K mi

I bought a check strap for my 85TD from Phil a few weeks ago. There are two different designs, early and late. Fastlane's catalog shows the chassis number when the change was made. The ball version is the late version I think (at least that is what was in my 85. You probably need the early version.

__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13

I'm not a ************** fan either, but if this part was made by Meyle rather than something ************** fabbed, you can't really blame them for it...

__________________
'83 300D Turrrbo 295K miles

I pulled 2 of the old style (leaf spring type) from my '80 300d parts car and replaced the broken new style (spring and ball type) in an '84 300d, they fit fine.

__________________
Cheers,
Robert

After 1980, basically when the W126 was release the equipment in the W123 was updated to harmonise the inventory items.

The strap you have in your W123 "1st edition" (as they call them in germany and france) is different than the roller ball design you have in 2nd edition W123.
I personally replaced all the later door checks in my cars with older models from Pick and pulls. I am not sure but i think the only model available at the dealership and everywhere else are the rollerball design and not the leaf-spring.

__________________
------------------------------------------
Aquilae non capunt muscas! (Eagles don't hunt flies!)


1979 300SD Black/Black MBtex239000mi
1983 300TD euro-NA. White/Olive Cloth-MBtex 201000mi. Fleet car of the USA embassy in Morocco
1983 240D Labrador Blue/Blue MBtex 161000mi
