boost gauge!

I put a gasser economy gauge in the 300D to serve as a boost gauge. It took a lot of finger crossing but it appears the gauge set I got at the PNP works as well as the original gauge set. So far no smell of burned electricals or crazy behavior but I haven't gotten the engine to operating temp so I don't know if the temp gauge is good. Fuel gauge reads about where it did prior but that's another thing to keep an eye on.

I've read about folks drilling holes and soldering and whatnot. I'm not sure what that's about. This was a straight gauge swap. I didn't transfer the economy gauge to the tri-gauge module in my car. Goodness, I'd rather replace a transmission... uhh... in a 126 Maybe the gauges will go south on me and I will have to do that custom work

Per jbaj007's instructions, I set the economy gauge pointer to 10 o'clock which worked well in the SDL. I had to tweak it closer to 9 o'clock in this car because the gauge wouldn't lift until close to 10 psi. At the current setting it reads about 5-12 psi which is the range that matters to me.

I must say the 124 keeps finding ways to confound me. The 126 has lots of room to get lines through the firewall and similarly lots of room to work behind the cluster. The 124 formed grommet is tucked under dash. There's an obscure line of sight from the engine bay and some wishbone bracket behind the gauge cluster that prevents a hand from getting to the grommet. I had to push the plastic line through the rubber boot with finger strength. My hands and forearms look like I refereed a tomcat fight.

Sixto
87 300D
Reply With Quote
  #2
Old 06-29-2008, 08:14 PM
ForcedInduction
Guest

Posts: n/a
I have no problems using an economy gauge as a boost gauge in my car.
Reply With Quote
  #3
Old 06-30-2008, 12:03 AM
CoyoteStarfish's Avatar
(Bio)diesel enthusiast

Join Date: Jun 2008
Posts: 167
Pardon the ignorance; but what exactly is an economy gauge?
__________________
Vehicles:
2002 SLK 230
Gone but not forgotten:
1983 300D
1981 El Camino 'OILBRNR' - 6.2L diesel
OM617 powered '86 F150
1984 BMW 524td
2001 VW Beetle TDI
1994 Sunurban 4x4 6.5L diesel
Reply With Quote
  #4
Old 06-30-2008, 12:26 AM
Cervan's Avatar
Crazy mechanic.

Join Date: Jan 2007
Location: olympia washington
Posts: 1,809
http://www.speedofixer.co.uk/images/bmw_e39_whiite_s.JPG It uses either vaccume or boost to show a barbaric mpg average.
__________________
Have you ever noticed that anybody driving slower than you is an idiot, and anyone going faster than you is a maniac?

As long as they would add one additional commandment for you to keep thy religion to thyself.
George Carlin (Wonder where he is now..)

1981 240d (engine donor 1983 240d) recently rebuilt engine hurray! - No more.. fought a tree and the tree won.

pearl black 1983 240d 4speed (Converted!@$$%) atleast the tranny was rebuilt.
Reply With Quote
  #5
Old 06-30-2008, 12:58 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,712
Exactly.

In this case, I repurposed the vacuum gauge to react to manifold pressure.

I pinched this picture from a 300E on eBay.

Sixto
87 300D
Attached Thumbnails
boost gauge!-gauge.jpg
Reply With Quote
  #6
Old 06-30-2008, 01:17 AM
bgkast's Avatar
Rollin' on 16s

Join Date: Dec 2005
Location: Vancouver WA
Posts: 6,528
Does it still say "premium unleaded fuel only" on it?
__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine
Reply With Quote
  #7
Old 06-30-2008, 01:27 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,000
Quote:
Originally Posted by sixto View Post
Exactly.

In this case, I repurposed the vacuum gauge to react to manifold pressure.

I pinched this picture from a 300E on eBay.

Sixto
87 300D
That seller is running the fuel tank dry! (if its reading right.... )
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 75k - mine - (OC-80,500)
'17 Metris(VITO!) - 6k - wifes (OC-10k)
'01 E320 Wagon - 159k - mine (OC-160,000)
'89 420SEL 166k - mine (OC-167,000)
'01 E320 - 168k - dad's (OC-171,500)
'07 E350 Wagon - 131k - dad's (OC-132,500)
'01 SL500 - 48k - dad's (OC-52,000)
'09 E350 4matic Sedan - 128k - Brothers (OC-128,000)
Reply With Quote
  #8
Old 06-30-2008, 01:40 AM
H-townbenzoboy's Avatar
Now Y2K Compliant

Join Date: Jul 2003
Location: Houston, TX
Posts: 4,194
Quote:
Originally Posted by bgkast View Post
Does it still say "premium unleaded fuel only" on it?
Gas W123 gauges don't have that printed on them.
__________________
Current Vice-President of MBCA|Houston

81 MB 300SD, 82 MB 300D Turbo (sold), 04 Lincoln Town Car Ultimate

Sooner or later every car falls apart, ours does it later!
-German Narrator in a MB Promotion Film about the then brand new W123.
Reply With Quote
  #9
Old 06-30-2008, 11:16 AM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,394
Quote:
Originally Posted by sixto View Post
. . . In this case, I repurposed the vacuum gauge to react to manifold pressure. . .
Sixto, does the gauge read "backwards" (higher boost to the left)?
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #10
Old 06-30-2008, 11:19 AM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,394
Quote:
Originally Posted by H-townbenzoboy View Post
Gas W123 gauges don't have that printed on them.
Sixto and I both have 124s so some detail work would be required. Maybe a little touch-up paint? When did the "unleaded" warnings start being put in cars?
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #11
Old 06-30-2008, 02:36 PM
ForcedInduction
Guest

Posts: n/a
Quote:
Originally Posted by Jeremy5848 View Post
Sixto, does the gauge read "backwards" (higher boost to the left)?
No, it stays in the black and moves into the red with boost.
Reply With Quote
  #12
Old 06-30-2008, 04:23 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,394
OK, I got the 4-gauge panel from the instrument cluster of a 1986 or 1987 300SD today at Windsor Pick and Pull. I don't think the gauge panel will swap into my '87 diesel but I'll pull its cluster and compare. If that won't go, I'll try to build the vacuum gauge into my panel.

Incidentally, the SD gauge panel has only a gas pump symbol on it -- it does not say "unleaded" or have any words at all besides the symbol. If I can adapt this thing correctly, I can transfer the gauge face to my cluster and overwrite "ECONOMY" with "BOOST."

Success at this project will solve a worry that I've had for some time -- how to build boost, EGT, and volts gauges into the '87, which doesn't have as big an ashtray as the earlier W123 cars. You can get three gauges in a 123 ashtray but only two in a 124. With the boost gauge built into the instrument cluster, I can have the EGT and volts in the ashtray area.

Jeremy
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #13
Old 06-30-2008, 04:41 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,712
You found an 86-87 SD? Midbadged, perhaps? The 86-87 SDL didn't come with an economy gauge. Maybe someone retired my gold 87 SDL which had the same mod

I had problems with an 88 or 89 300SE 4-gauge panel in my 87 SDL so I made sure to get an 87 300E 4-gauge panel for this mod.

In my case it's also an economy gauge. I figure I use less fuel in the black than in the red.

It's not a great boost gauge because it's highly damped. It's between 1 and 2 seconds slower than a VDO 0-30 psi boost gauge I used as a reference. There's only about a 7 psi spread between posts so you can't have it tell you how soon boost builds and how high it'll go. I just like to see it swing when I go up and down the hills on I-280 with the cruise control

And nothing but premium unleaded Diesel goes into the tank. So there

Sixto
87 300D
Reply With Quote
  #14
Old 06-30-2008, 08:24 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,394
Not my field of expertise . . .

Quote:
Originally Posted by sixto View Post
You found an 86-87 SD? Midbadged, perhaps? The 86-87 SDL didn't come with an economy gauge. Maybe someone retired my gold 87 SDL which had the same mod
I am rather a dunce when it comes to the S-class cars, Sixto. It had trim panels on the lower doors so that makes it an SD or SDL, right? I found what remained of the instrument cluster (speedo gone) in the trunk of a 123 car I was "visiting;" the SD was in the next row. I took the cluster up there, sure enough, it had an empty hole in the dash that this cluster fit. So I assumed it belonged. Perhaps that was a coincidence and the cluster came from another car, but I don't know what it could be -- this P&P has mostly 123 and 126 models.

The cluster had a number in the plastic something like "87 xx1186," which I assumed was a date code. The 4-gauge panel was the only piece I bought; it has a date code . . . (running to the garage to check) . . . "5.86" on the PC board (looks like a QA stamp) so I assumed it was an '86 or '87 model. It has a 15-pin round plug/socket on the back of the PC board. The other three gauges are the same as my '87 diesel, temp in C, electric oil pressure in bar, fuel in fractions.

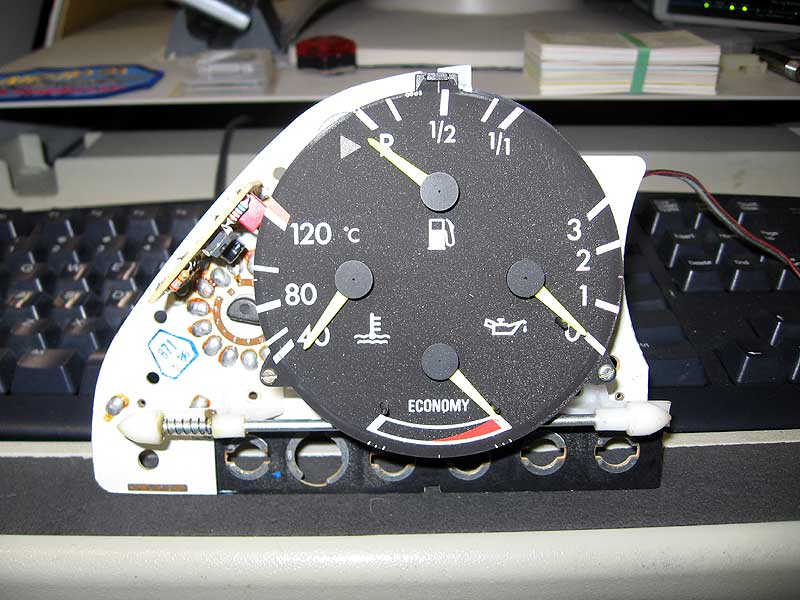

Comparing the photos (attached) to photos of my '87 3-gauge panel, it's clear that I will have to move the economy gauge movement and probably the gauge face to my panel. I won't know if it will be possible until I pull my cluster apart again.

Jeremy
Attached Thumbnails
boost gauge!-img_3052.jpg   boost gauge!-img_3053.jpg
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #15
Old 06-30-2008, 09:17 PM
fahrgewehr2's Avatar
Registered User

Join Date: Aug 2003
Location: Wilmington, NC
Posts: 1,264
Are all three 126 and 124 gauges interchangeable?
__________________
'90 300SE 298k
-300K and it gets put into retirement.
'80 300D 255k Purchased new by family in 1980.

Had a:
1973 220 (gas)
1980 300SD
1992 400E
Reply With Quote
