Oil pump chain

My engine is out and the oil pan is off. I need to replace the chain but no specific info is in the engine manual. A note refers to section 01-107 but I do not have that. It also states not to use a master link. Has anyone done a replacement chain that can pass along the correct procedure? I tried a few searches but did not find anything specific.
Thank You
Reply With Quote
  #2
Old 07-30-2008, 06:01 PM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Which model Trabat ?

I'm guessing (617.XXX Turbo).

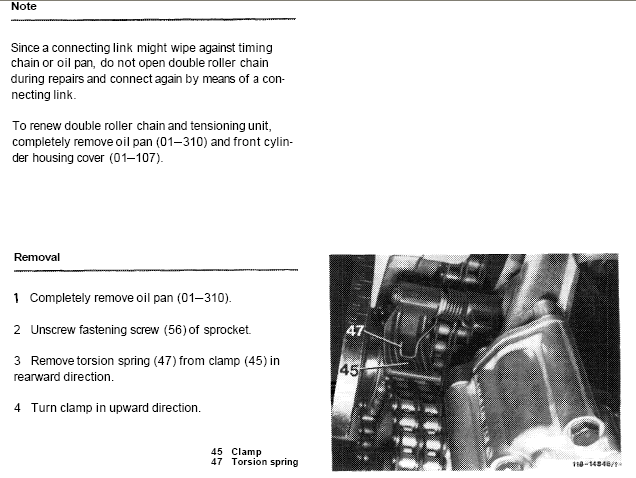

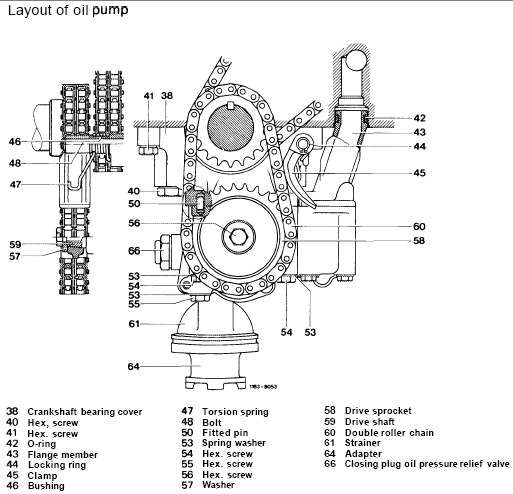

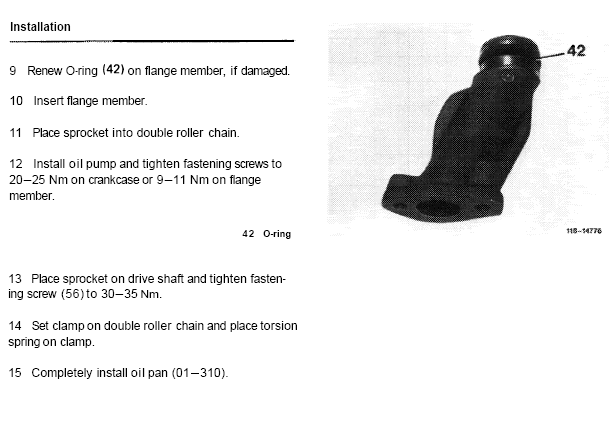

Oil pump R+R instructions pictogram(s):
Attached Thumbnails
Oil pump chain-screenhunter_01-jul.-30-17.59.gif   Oil pump chain-screenhunter_02-jul.-30-18.03.gif   Oil pump chain-screenhunter_03-jul.-30-18.03.gif   Oil pump chain-screenhunter_04-jul.-30-18.04.gif
__________________
'84 300SD sold
124.128

Last edited by compress ignite; 07-30-2008 at 07:43 PM.
Reply With Quote
  #3
Old 07-31-2008, 04:12 PM
Registered User

Join Date: Dec 2007
Location: NY
Posts: 37
Thanks. It is an 82 300D Turbo. The photo's from your manual are much clearer that mine. I thought I had to remove the front cover but now it looks like I might not have to.
