  #16
Old 05-30-2009, 06:17 PM
Squiggle Dog's Avatar
https://fintail.org

Join Date: Jul 2008
Location: Surprise, AZ, USA
Posts: 3,777
Here are the pictures of my car:

The first picture shows my car with the Euro headlights installed.

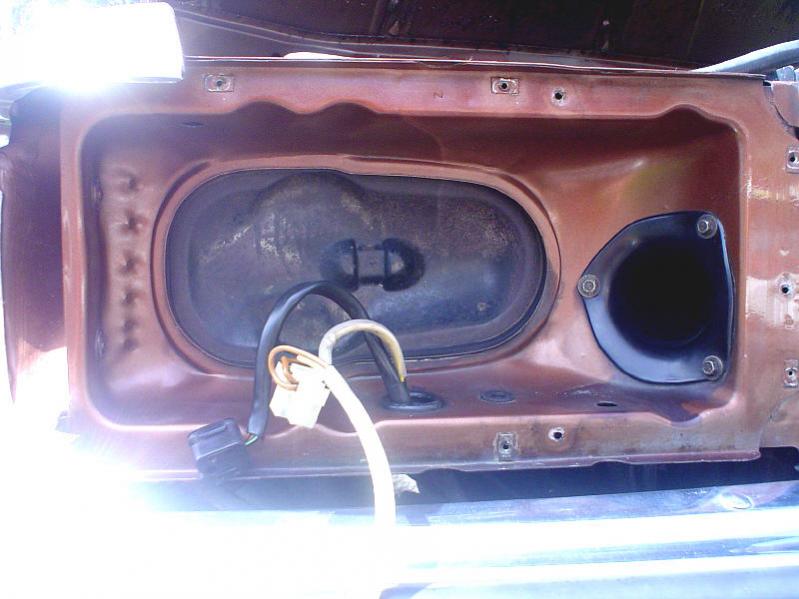

The second picture shows the end of the air intake (the port to the right) which comes out behind the right headlight. The engine draws all its air from behind the headlight. I noticed one small hole on the bottom of the recessed headlight area and one small hole on top that allowed some (but much less than ideal) air to enter, which would explain how the car was able to run. The Euro headlights fit flush around the frame of the recessed area and use a seal to seal it. When the light is installed no air can enter this area except for the two small holes previously mentioned. If no air can get into the area behind the headlight, how can the engine breathe?

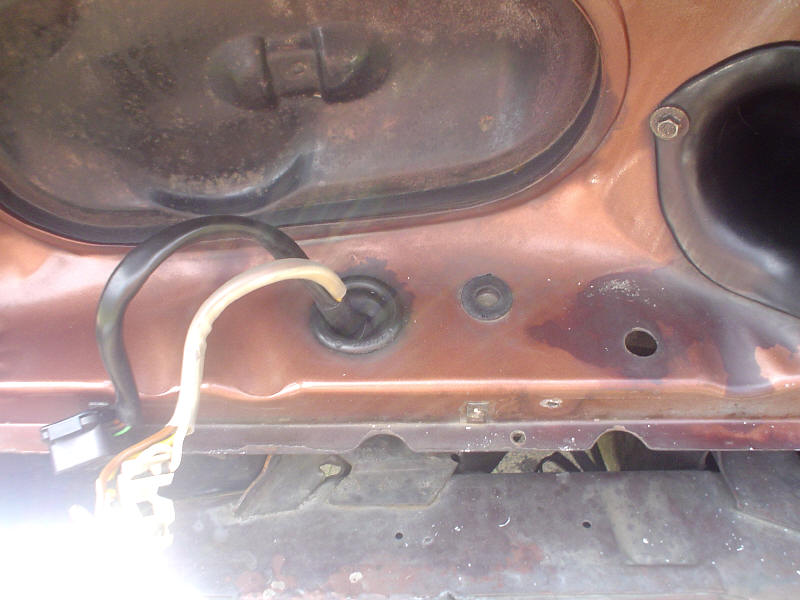

The third and fourth pictures illustrate the two small holes as mentioned before where some air is able to enter but certainly not enough for the engine to perform properly!

The fifth picture shows the Euro light fitting flush against the frame of the recessed headlight/air intake area and sealing it off.

Attached Thumbnails
My New Euro Lights Are Causing My 300SD To Be Slow (Time For a K&N Air Intake?)-300sdeurolights.jpg   My New Euro Lights Are Causing My 300SD To Be Slow (Time For a K&N Air Intake?)-300sdeurolights2.jpg   My New Euro Lights Are Causing My 300SD To Be Slow (Time For a K&N Air Intake?)-300sdeurolights3.jpg   My New Euro Lights Are Causing My 300SD To Be Slow (Time For a K&N Air Intake?)-300sdeurolights4.jpg   My New Euro Lights Are Causing My 300SD To Be Slow (Time For a K&N Air Intake?)-300sdeurolights5.jpg

Reply With Quote
  #17
Old 05-30-2009, 06:18 PM
Squiggle Dog's Avatar
https://fintail.org

Join Date: Jul 2008
Location: Surprise, AZ, USA
Posts: 3,777

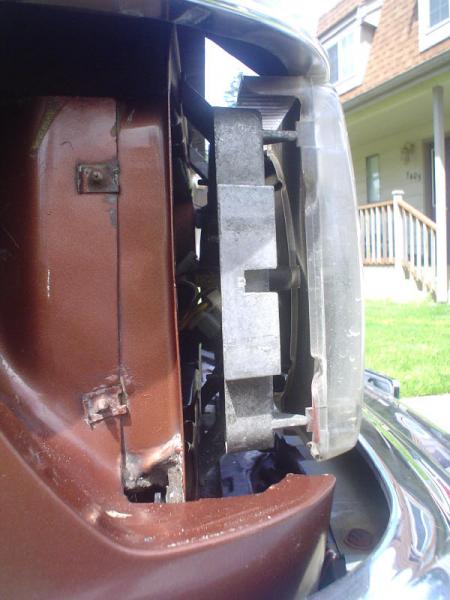

The last two pictures show how the original USA lights "float" and allow air to flow freely into the area behind them, into the intake port. There is ample room for the air to flow, maybe 1" or so all the way around them.

I hope you understand what I am talking about now that I have pictures. All I wanted was to put on some nice Euros, only to find out that they cause the car to run poorly!
Attached Thumbnails
My New Euro Lights Are Causing My 300SD To Be Slow (Time For a K&N Air Intake?)-300sdeurolights6.jpg   My New Euro Lights Are Causing My 300SD To Be Slow (Time For a K&N Air Intake?)-300sdeurolights7.jpg
Reply With Quote
  #18
Old 05-30-2009, 08:02 PM
MBeige's Avatar
Registered User

Join Date: Apr 2005
Location: SoCal
Posts: 3,746
Is there a snorkel that can fit between the headlight and the condenser/radiator you can reroute the air intake hose to?



In other models (126/201/124) the air intake snorkel inserts into these spots, instead of above the headlights as in the w123.
Reply With Quote
  #19
Old 05-30-2009, 08:03 PM
compu_85's Avatar
Cruisin on Electric Ave.

Join Date: May 2008
Location: La Conner, WA
Posts: 5,234
Quote:
Originally Posted by Hit Man X View Post
AFAIK no ECE W126s were in Turbo Diesel.
No diesel S-Class in europe till the W140. 1995 I think. Hence why the euro lights don't clear the air flow meter on the diesel

-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket

Tesla Model 3. 205,000 miles. Been to 48 states!
Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels.
2014 Cadillac ELR
2013 Fiat 500E.
Reply With Quote
  #20
Old 05-30-2009, 08:44 PM
Squiggle Dog's Avatar
https://fintail.org

Join Date: Jul 2008
Location: Surprise, AZ, USA
Posts: 3,777
Quote:
Originally Posted by MBeige View Post
Is there a snorkel that can fit between the headlight and the condenser/radiator you can reroute the air intake hose to?

In other models (126/201/124) the air intake snorkel inserts into these spots, instead of above the headlights as in the w123.
That's what I am thinking of doing. There is a W126 300SD at Pull-A-Part I might take a look at to see if I can rig something up. For now maybe I will just remove the tube going from the intake port to the air cleaner. It will be running on hot air from the engine compartment instead of cold outside air, is all.
Reply With Quote
  #21
Old 06-02-2009, 12:52 AM
Squiggle Dog's Avatar
https://fintail.org

Join Date: Jul 2008
Location: Surprise, AZ, USA
Posts: 3,777

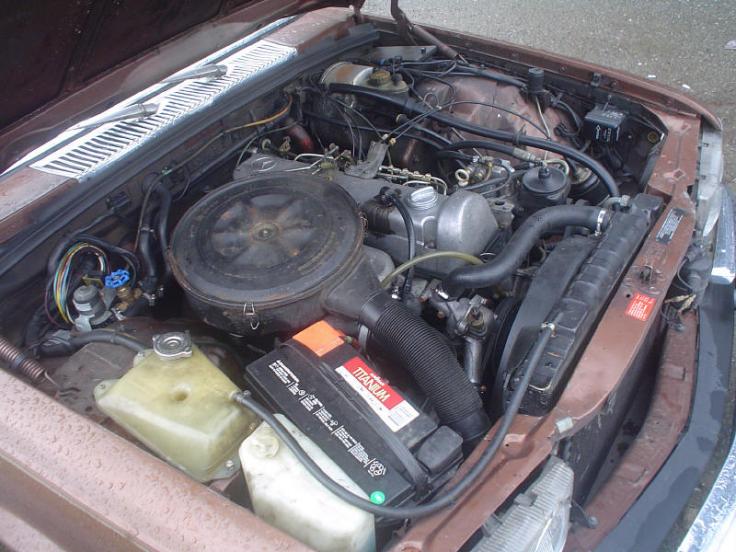

I removed the tube going from the intake port to the air cleaner and then placed a sock over the air cleaner opening so no debris would enter the housing. Then I drove the car and it had it's full power again. What a difference! I was right, suckas (ha ha)!
Attached Thumbnails
My New Euro Lights Are Causing My 300SD To Be Slow (Time For a K&N Air Intake?)-1979300sd8.jpg
Reply With Quote
  #22
Old 06-02-2009, 07:45 AM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,346
Remove the sock it will get sucked in.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1995 E420 Schwarz
1995 E300 Weiss
#1987 300D Sturmmachine
#1991 300D Nearly Perfect
#1994 E320 Cabriolet
#1995 E320 Touring
#1985 300D Sedan
OBK #42
Reply With Quote
  #23
Old 06-02-2009, 09:04 AM
Squiggle Dog's Avatar
https://fintail.org

Join Date: Jul 2008
Location: Surprise, AZ, USA
Posts: 3,777
Quote:
Originally Posted by winmutt View Post
Remove the sock it will get sucked in.
I have it clamped on with two hose clamps.
Reply With Quote
  #24
Old 06-02-2009, 09:11 AM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,346
Quote:
Originally Posted by Squiggle Dog View Post
I have it clamped on with two hose clamps.
It will last no longer than a month before it is sucked into your turbo.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1995 E420 Schwarz
1995 E300 Weiss
#1987 300D Sturmmachine
#1991 300D Nearly Perfect
#1994 E320 Cabriolet
#1995 E320 Touring
#1985 300D Sedan
OBK #42
Reply With Quote
  #25
Old 06-02-2009, 09:13 AM
helpplease
Guest

Posts: n/a
Have to totally agree with Winmutt socks are for feet not turbos.
Reply With Quote
  #26
Old 06-02-2009, 09:18 AM
Squiggle Dog's Avatar
https://fintail.org

Join Date: Jul 2008
Location: Surprise, AZ, USA
Posts: 3,777
Even if it does get sucked in, wouldn't the air filter keep it from getting past the air cleaner (unless the turbo does not use filtered air--port for turbo is before the air filter in the air cleaner)? Maybe I will ditch the Euro lights as they do not work on a 300SD without losing power (I don't care what anyone says--if you block off the air intake port the car will not run correctly).
Reply With Quote
  #27
Old 06-02-2009, 09:22 AM
helpplease
Guest

Posts: n/a
I belive that a sock might have enough mass to knock the air filter off and maybe...maybe get sucked into the turbo. I am sure Winmutt has a different theory but there is mine. And I personally would get rid of the lights until you can better figure out a configuration that will work for you. Still a nice benz!
Reply With Quote
  #28
Old 06-02-2009, 09:30 AM
Squiggle Dog's Avatar
https://fintail.org

Join Date: Jul 2008
Location: Surprise, AZ, USA
Posts: 3,777
I'm not sure how it could knock off the air filter if it is a tight fit in the air cleaner and sealed on all sides by pressure from the top cover. I would say it is 99.625% impossible.

But, I think I will remove the lights and sell them (along with my other 5 sets or so of less than perfect Euro lights I have accumulated). I did not forsee the installation of the European lights to interfere with the operation of the vehicle. I think the 300SD is the only model W116 to have this problem and it was the only USA-only model as well. I guess the USA-type lights have less parts to go bad and are less expensive to maintain.

Last edited by Squiggle Dog; 06-02-2009 at 09:44 AM.
Reply With Quote
  #29
Old 06-02-2009, 10:44 AM
Ether's Avatar
Go S Class or go home

Join Date: Oct 2001
Location: Lawrenceville, GA
Posts: 758
Quote:
Originally Posted by Squiggle Dog View Post
Maybe I will ditch the Euro lights as they do not work on a 300SD without losing power (I don't care what anyone says--if you block off the air intake port the car will not run correctly).
Well, mine has had Euro lights on it for a year and a half and runs very well. There are many others who have made the switch to Euros without issue.

There must be something different with yours to restrict airflow so severely that it affects performance. Or, perhaps something about mine and others setup that allows more air flow.

I will have to take a close look at my air intake and see if that reveals any clues.
__________________
Joe

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
1980 300SD - 495k miles - 'The Ambassador'
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Former Family Members
95 C280
73 280SEL
90 300D
87 300SDL (X2)
86 560SEL
84 300D
80 300SD

Reply With Quote
  #30
Old 06-02-2009, 11:48 AM
Registered User

Join Date: Feb 2008
Location: OAklandia in the East Bay
Posts: 84
Take that sock off their. Quite a risky move that you dont need to take. Just run with out the tube from the air pick up to the air intake. No need for a sock.
I have had that tube off my SD for some time now with no adverse affects.

__________________
VegStew
1983 300SD 70,000 WVO Powered miles
1990 300D In driveway with Head Off - Cracked
Reply With Quote
