glow plug relay

more dang problems. is it possible to repair / recondition a glow plug relay ?
mine clicks but no glow or glow light.

im trying to not need to lay the car up for a week while waiting for parts.

the alternator problem was the battery connections i believe. whomever installed the battery last fall did not tighten the cables. i did not even try to start it until april and the batt was dead then and a good charge seemed to make it work again.

but the relay thing, do they come apart ? i did see some small screws but have not taken it off the car yet

__________________
david h
83 300D Alabama Beauty (Son's)
83 300D West Coast Rust Free that been abused
Reply With Quote
  #2
Old 06-13-2009, 02:02 PM
Registered User

Join Date: Jan 2002
Posts: 18,355
Have you checked for voltage at the plugs with the key in the glow position?
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #3
Old 06-13-2009, 03:33 PM
Registered User

Join Date: Jul 2006
Location: far n.w. wisconsin
Posts: 180
not yet. good way to troubleshoot. the relay does click but the plugs do not warm up the engine. (it all of a sudden just would not work) hard to start for the first time in its life.

looks like im on my own on this one. we'll start from scratch.
__________________
david h
83 300D Alabama Beauty (Son's)
83 300D West Coast Rust Free that been abused
Reply With Quote
  #4
Old 06-13-2009, 03:55 PM
spock505's Avatar
Registered User

Join Date: Nov 2007
Location: Blighty
Posts: 1,364
They come apart pretty easy, this is from a '94 C250D but I think most are similar -

__________________
David


1996 Mercedes S124 E300TD - 129k - rolling restoration project -

1998 Mercedes W210 300TD - 118k (assimilated into above vehicle)
Reply With Quote
  #5
Old 06-13-2009, 03:59 PM
Registered User

Join Date: Jan 2002
Posts: 18,355
I think it's premature to condemn the relay without testing for voltage output. Have you checked the strip fuse in the relay?
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #6
Old 06-13-2009, 04:02 PM
pelon's Avatar
Up through the hawespipe.

Join Date: Oct 2008
Location: Valencia, NM
Posts: 218
on mine...

i replaced the glows but couldn't hear the relay click. i took it apart and used an old point file to clean up the contacts on the relay.
now it works great. much cheaper than a hundred bucks for a new one.
__________________
1985 300SD
1998 Jetta TDI
Previous: lots of diesel VW's, MB's, KW's, Pete, Freightliner


Walking isn't a lost art: one must, by some means, get to the garage.
Reply With Quote
  #7
Old 06-14-2009, 01:10 PM
Registered User

Join Date: Jul 2006
Location: far n.w. wisconsin
Posts: 180
so i checked the voltage at the five prongs on the relay. . . . zero. i took the relay off, took off the cover and disconnected the tiny spring on the side of the relay.

now we can really get at the burned points. scuffed, brushed and buffed them clean, re-assembled and put it back on. yea ! ! ! ! good for the rest of my life i'd bet.

thanks for the helpful information again.

davidh
__________________
david h
83 300D Alabama Beauty (Son's)
83 300D West Coast Rust Free that been abused
Reply With Quote
  #8
Old 09-12-2009, 02:35 PM
mtbguy's Avatar
Registered User

Join Date: Jan 2009
Posts: 38
I just went through this exact problem. Suddenly the car wouldn't start quickly. It was very hard to start unless totally warmed up. I replaced all of the glow plugs, tested continuity, everything. My relay even clicked.

When I took the relay apart one of the smaller contacts in the row of five was blackened and not working anymore. The relay would click but never energize the glow plugs. I cleaned it with 1000 grit sandpaper and the car starts and runs okay again.

I think I may go ahead and buy a new relay from ******** or get another from a parts car and keep this one as a working spare. Thanks for the helpful posts everyone from a frequent forum searcher!
__________________
1991 300D 2.5 turbo
1991 560 SEL
1987 911
Toyota landcruiser
Atlanta, Gawga
Reply With Quote
  #9
Old 09-12-2009, 04:27 PM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570

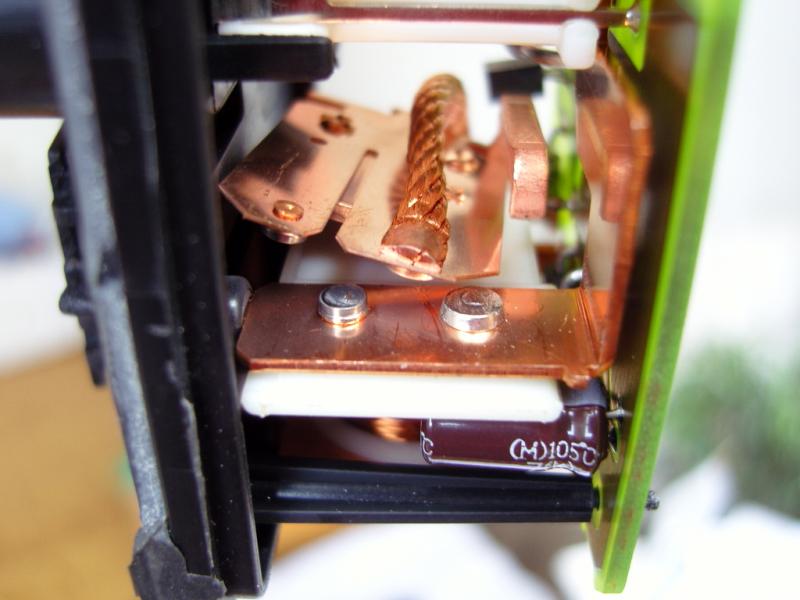

you might need to file the contacts?
Attached Thumbnails
glow plug relay-close-view-contacts.jpg
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...
Reply With Quote
  #10
Old 09-12-2009, 06:44 PM
spock505's Avatar
Registered User

Join Date: Nov 2007
Location: Blighty
Posts: 1,364
Quote:
Originally Posted by Olivier View Post
you might need to file the contacts?
Are you competing with me for best close up photo Olly

I think mine adds a certain realism with my greasy thumb almost in view
__________________
David


1996 Mercedes S124 E300TD - 129k - rolling restoration project -

1998 Mercedes W210 300TD - 118k (assimilated into above vehicle)
Reply With Quote
  #11
Old 09-12-2009, 07:17 PM
Olivier's Avatar
Registered User

Join Date: Jan 2009
Location: Edinburgh
Posts: 570
OK, here is one with the thumb too

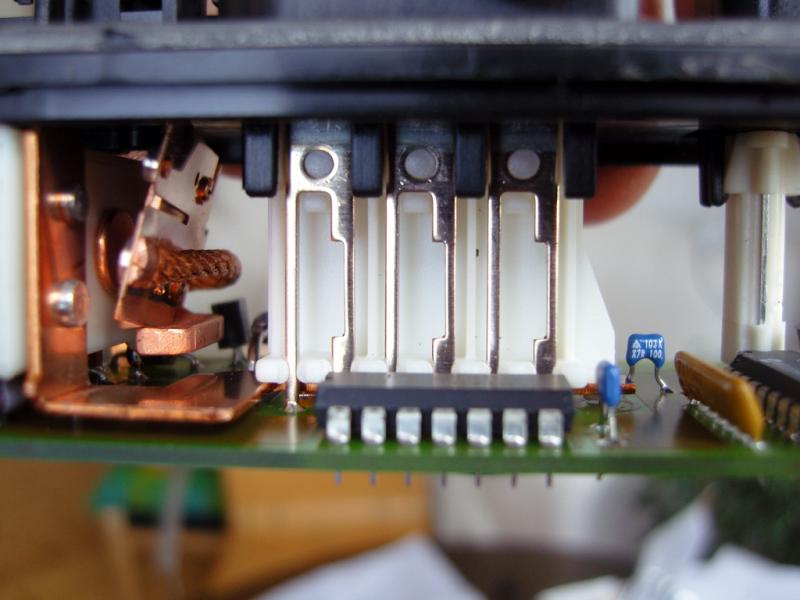

Oh, and the fuse blade too, they might be burned, no thumb tho...
Attached Thumbnails
glow plug relay-contacts-filed.jpg   glow plug relay-fuse-blades-1-side.jpg
__________________
E300TD year 2000. RUSTY SOLD
cost a fortune to maintain on the road
but run well on WVO
Second Merc died due to corrosion ( NOT rust) How can mercedes get away with that for so long?
Third lasted a month then went away...
Fourth now... Corroded too...
Reply With Quote
  #12
Old 09-14-2009, 10:41 PM
mtbguy's Avatar
Registered User

Join Date: Jan 2009
Posts: 38
Oh well, for me cleaning the contacts worked for about two days. The glow plug light quit working again and the relay is screwed up again, so I ordered a new one from ********. The circuit board has a burn mark near a resistor, and there is no longer any voltage to the glow plugs (which are all new and continuity test was good on wires.

I guess it DID last for 19 years so I cant complain.

__________________
1991 300D 2.5 turbo
1991 560 SEL
1987 911
Toyota landcruiser
Atlanta, Gawga
