Hi everyone.
This is on a 1980 300TD (naturally asperated).

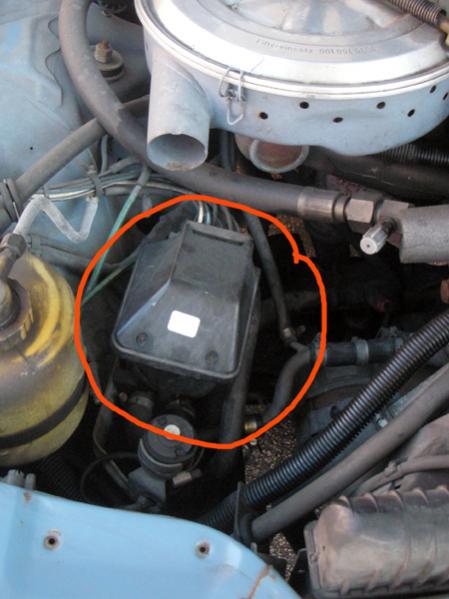

Yesterday while driving in town my temperature started rising fast. I pulled over and coolant was spewing out from some seal under the part in the picture (the detail shot shows the leak pretty well).

What is it this part called? I assume it has to do with climate control. I had turned on the "bi-level" blower (which I rarely, if ever, do) shortly before I saw my temp starting to rise.

Also, please feel free to share advice on how to fix it because I don't know that either . Is there a gasket that I can replace? or do I need to replace the whole part?

Or I was hoping that maybe if I filled the coolant back up and turned the blower off, then coolant would stop flowing through this part and thus stop shooting out all over the place. Or maybe that's wishful thinking...

Thanks!
Christine

__________________

1980 300TD

evil servo

__________________
daw_two
Germantown, TN

Links:
Sold last car --- 05/2012 1984 300D Light Ivory, Red interior
Cluster Needles Paint
New Old Stock (NOS) parts

Past:
3/2008 1986 300SDL "Coda"
04/2010 1965 190D(c) "Ben"
& many more

Agreed!

That is the climate control system for the car, very troublesome, and very expensive....

__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)

Yup. I finally found a post with pictures that told me it was the evil servo. It also had a great tutorial on bypassing it altogether and a diagram that helped a lot.

In the meantime, was I correct in thinking that if I turn the heat off my leak will go away? A temporary solution but it would be really convenient.

Other thoughts on how to get back on the road as soon asn easily as I can?
thanks again.

__________________

1980 300TD

Thanks

The leak is coming from the box itself. It looks like there is a top part and a smaller squarish bottom part and the leak is where they meet It's not from any of the hoses.

__________________

1980 300TD

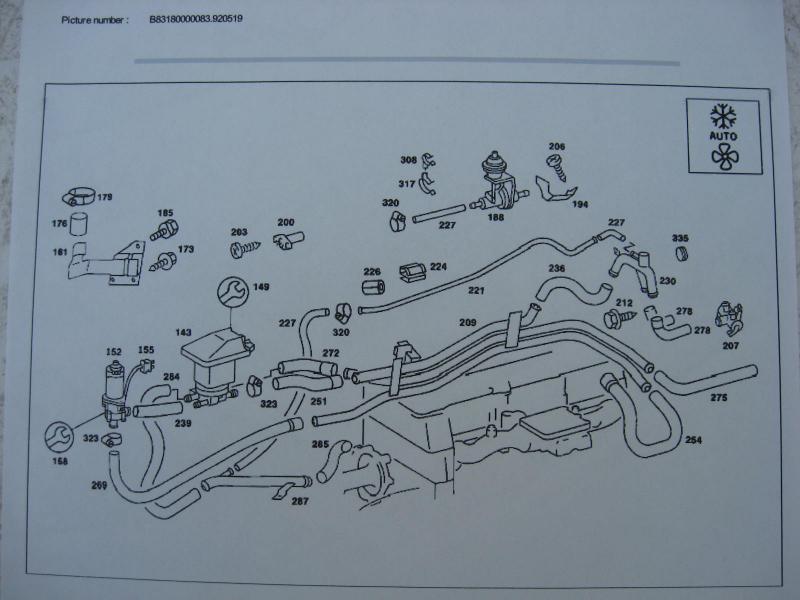

Appears to be part #143, circulation pump valve, #149 is a repair kit.
