mine broke at flange.

__________________
His 2000 TDI Jetta 5 speed
Hers 2002 TDI auto Beetle
Toy Mercedes diesel powered 1995 Jeep.
Work 2003 Cummins quad cab 1 ton

These have been an ongoing PITA for me on Mutt the Race Truck. The issue has been that I need a different flange to make up to my race-only thru-the-fender exhaust pipe and it's almost impossible to weld to those as they're as thin as tissue paper (well, not quite but you catch my drift). There's a guy in town who does welding for me when it's beyond my skill level and we has been able to make something work but 'tain't easy. I wish I could find a good aftermarket supplier so we could at lest start with a fresh one. TIG welding SS that is impregnated with crud isn't easy.

^ Something to be said about welding skills and equipment.

__________________
83 SD

84 CD

I am not looking into buying the entire exhaust system, Here's a pict of whats broken

Attached Thumbnails



__________________
Current Garage
2008 Mercedes GL320 CDI 188k mi Repair/Work in progress
1994 S350 160k mi Garage Queen & prepping for repairs
2005 E320 CDI 203k mi Healthy & Daily Driver
1994 S350 357k mi Retried as parts car
1984 300TD 214k mi Blown OM617 Poss OM603 Swap??

Sold
1987 300SDL 200K+
1994 S320 181K mi
2008 E320 Bluetec 127k mi
1999 S420 130K mi
1980 240D 360k mi
15+ Others that has come, stay and gone

GONE, BUT NOT FORGOTTEN
1995 E320 SE 220k mi
1984 300SD 350k mi

Okay, I was thinking something else. You may be able to find as rrgrassi mentioned.

__________________
83 SD

84 CD

Is that clamped on BEFORE the down pipe (braided SS line)?

I bet you could find it at McMaster-Carr.

__________________
RRGrassi


70's Southern Pacific #5608 Fairmont A-4 MOW car

13 VW JSW 2.0 TDI 193K, Tuned with DPF and EGR Delete.

99 W210 E300 Turbo Diesel, chipped, DPF/Converter Delete. Still needs EGR Delete, 232K

90 Dodge D250 5.9 Cummins/5 speed. 400K

Gone and still missed...1982 w123 300D, 1991 w124 300D

yeah, you had everyone confused. junk yard for that i would say. that ebay part will not work.

__________________

1996 E300 110,000
1985 300TD 212,000
1980 300D 238,000

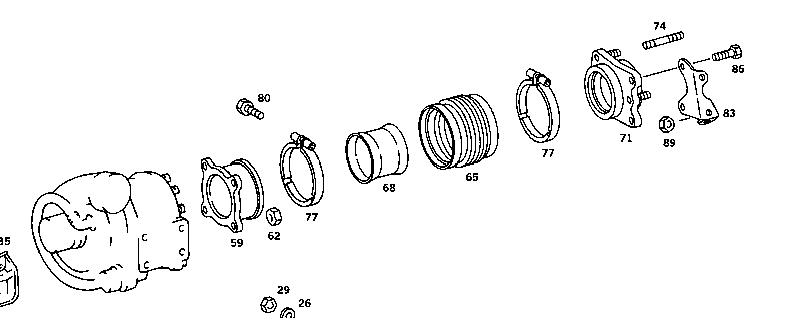

Fastlane has it. 617 142 00 59; EPC calls it "Flexible Metal Tube" #65 in the diagram.

__________________
Dale

http://i52.photobucket.com/albums/g1...MG_2277sig.jpg

1990 300D 2.5 Turbo -155k
2000 E430 - 103k
2014 Jeep Grand Cherokee Ecodiesel 4x4 - 11k
2014 VW Passat TDI SE - 7k Bro's Diesel
2006 E320 CDI - 128k Pop's Benz

Pre-glow - A moment of silence in honor of Rudolph Diesel

Fastlane: FLEX PIPE, FLEXIBLE METAL TUBE, BETWEEN TURBO AND FLANGE (ROUGHLY TWO INCH) OM617
http://catalog.peachparts.com/item.wws?sku=6171420059

Does anyone know what part # is for #77 in this diagram? I had to cut mine out because the bolt was rusted out and stuck, and I cannot find the part number or a generic replacement. I tried ordering a generic clamp but the inner clamping section was too wide and it wouldn't work.

Does anyone know the part number or a suitable clamp to replace it?

What is the large part below the turbo called? It looks the size of a football and what does it do? I think mine is leaking exaust out of it, I have no boost in my turbo, trying to find the problem. i think it's an exaust leak some where there. Also does taking the resognator back by the muffler affest the turbo? thanks guys!

we're going to need to know what car you are asking about.

__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 560SL convertible
1987 190D 2.5-5SPEED!!!

1987 300TD
2005 Dodge Sprinter 2500 158"WB
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!

Trap Oxidizer, LINKS thread
Trap Oxidizer, LINKS thread




.

__________________
ASE Master Mechanic
https://whunter.carrd.co/

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1985 300SD
1983 300D
2003 Volvo V70

https://www.boldegoist.com/

Mine broke also. Had a nice big crack in it on the 87 D. At first I just loosened the clamps for it, and then welded the crack shut as I rotated it. Held pretty good. looked like crap.

I could not find the part after searching so I grabbed the used one off the 87 TD I snagged the head from Saturday.

Be sure you measure the down flex pipe length because there is more than one length... A number of years ago when W. Hunter and I were first starting on my 300D we thought that we'd ordered the correct pipe. It turned out that my car is kind of weird (thus the name "Hen's tooth") in that it is a 1985 300D 49 state car with California stuff on it (vacuum system) and the down pipe dimension we found out would have actually been listed for a 1984 49 state vehicle. (The car does not have the Calif trap ox or air cleaner.) We had to send back what was supposed to be the correct 1985 down flex pipe for the 1984 pipe... Go figure... but nothing on this car has been easy... It was built on Halloween day in 1984!

__________________
Pete Williams, President emeritus - MBCA-International Stars (Eastern Mich.) Now Wi. & Az.
1985 300D Manual 4 speed Green Hen's tooth
1979 MGB triple black Az car nice
1969 back 1/2 of MGB (Az home built trailer)
1991 Volvo 245 Wagon Nice AZ Restored Gold Brick
1983 Jeep CJ7 37,600 Miles Summer use only
