  #1
Old 02-02-2010, 08:31 PM
Frybenz

Join Date: Feb 2010
Location: Rochester Hills, Mi
Posts: 2
1985 300D rolls away when put into park

When my Benz is put into park, it still rolls away. Is this an easy fix? I am fairly mechanical, I just replaced my B2 piston. Any ideas?
Reply With Quote
  #2
Old 03-08-2010, 01:00 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,350
Moved

Moved from good MB shops to DD for answer..
Reply With Quote
  #3
Old 03-08-2010, 01:12 PM
Registered User

Join Date: Nov 2005
Location: Nashville, TN
Posts: 1,556
Hmm. All i can think is the linkage adjustment. Does it roll only backwards by any chance? Then it could be still in reverse. You probably thought of this. I'm assuming it starts right up when it park so it is not thinking it is in reverse?
__________________
What Would Rudolph Do?
1975 300D, 1975 240D, 1985 300SD, 1997 300D, 2005 E320 , 2006 Toyota Prius
Reply With Quote
  #4
Old 03-08-2010, 01:19 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,350
Answer

Quote:
Originally Posted by frybenz View Post
When my Benz is put into park, it still rolls away. Is this an easy fix? I am fairly mechanical, I just replaced my B2 piston. Any ideas?
I would suspect bad shift rod bushings = failure to reach the park position.


Broken Neutral Safety Switch and replacing shifter bushings
http://www.peachparts.com/shopforum/showthread.php?p=646647

Replacing all shifter bushings on W126 - p.1
http://www.peachparts.com/shopforum/showthread.php?t=112582


FYI:
I have them in stock local detroit.


Have a great day..
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Prototype Vehicle build.
Prototype Fleet Durability
Prototype vehicle instrumentation.
Technical Quality Auditor.
Automotive Technical Writer

1973 300D
1973 309D - stolen
1978 280SE
1980 240D
1983 300D
1984 190D
Reply With Quote
  #5
Old 03-08-2010, 01:21 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820

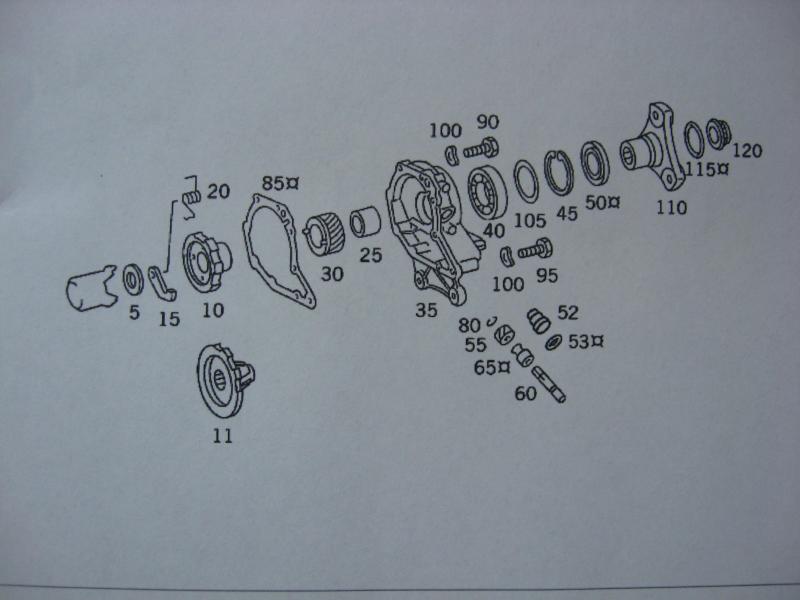

There is a pawl (#15) on an interlock (#10) with a spring (#20) inside the rear transmission case.
It seems the pawl is not engaging the interlock.
Good luck.
Attached Thumbnails
1985 300D rolls away when put into park-trans-pawl-722.416.jpg
__________________
83 SD

84 CD
Reply With Quote
  #6
Old 03-08-2010, 01:53 PM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,585
I agree with the above fixes and suggestions.

Iam wondering if the parking brake is being applied? It is a wonderful tool to use .

I see it all the time, people park their automatic vehicle, slam it into park and jump out, then see the vehicle rocking back and fourth. puts an awful strain on the Pawl in the transmission. Put the strain on the parking brake, then select Park.

Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

http://i30.photobucket.com/albums/c3...ilys/boobs.gif


Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
Reply With Quote
  #7
Old 03-08-2010, 02:15 PM
Vice President of Snark

Join Date: Nov 2009
Location: Austin, TX
Posts: 1,195
My wagon started doing this after I replaced the transmission mount. I had new bushing already in from earlier last year and park always worked well. I think with a brand new mount, the linkage is a little off and needs to be adjusted.

If I push forward on the shifter. it locks into park, but won't stay there.I'm not looking forward to working in the tunnel again, so this is on the back burner at the moment.

Parking brake still does its job.
__________________
'85 300TD "Puff The Magic Wagon" - On the road again!
'95 E300d - 110K Looking for a new home
'15 Volvo XC70 T6 - Wife's sled
'84 300TD "Brown Betty" - Miss this one
'81 240D "China Baby" - Farm grocery getter
Reply With Quote
  #8
Old 03-08-2010, 03:03 PM
okyoureabeast's Avatar
Rogue T Tolerant

Join Date: Jul 2009
Location: North America
Posts: 1,392
My 85 300D does something like this.

When I put the car into park and if I let off of the brake the car will slide and then I can feel the parking paw grab the car to a halt.

I've been using my e-brake when I park my car instead of just relying on the transmission. It's a habit I got myself into and I don't remember how or why I did.
__________________
Quote:
Originally Posted by Yak View Post
Going back to the original post: "Can you get the vac to blow instead?" No. Vacuums are low pressure so they by nature "suck" and nature abhors them.
1984 380SL
Reply With Quote
  #9
Old 03-08-2010, 03:19 PM
MBeige's Avatar
Registered User

Join Date: Apr 2005
Location: SoCal
Posts: 3,746
Quote:
Originally Posted by okyoureabeast View Post
My 85 300D does something like this.

When I put the car into park and if I let off of the brake the car will slide and then I can feel the parking paw grab the car to a halt.

I've been using my e-brake when I park my car instead of just relying on the transmission. It's a habit I got myself into and I don't remember how or why I did.
On mine, the car would slide when placed in P, until the pawl catches. Replacing the mounts (engine/transmission/differential) minimized the amount of sliding. Replacing the differential mount also contributed to minimized vertical movement of the rear when the transmission lever was set to D or R from a neutral (P or N) position.

It feels like a much "tighter" car now, not as "loose" as before.
Reply With Quote
  #10
Old 03-08-2010, 08:57 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,148
I grew up in rural SD... it gets cold there.
we got in the habit of NEVER using the parking brake. because it had a nasty tendency to melt snow and such from the road, and freeze in position. and the brake would not release.
I know it's silly, but this year, many many many unsuspecting southerners had their cars unable to move, for this very reason. it was on the news, and I had myself a good laugh!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #11
Old 03-08-2010, 09:01 PM
Registered User

Join Date: Dec 2005
Location: Carson City, NV
Posts: 3,766
Quote:
Originally Posted by vstech View Post
I grew up in rural SD... it gets cold there.
we got in the habit of NEVER using the parking brake. because it had a nasty tendency to melt snow and such from the road, and freeze in position. and the brake would not release.
I know it's silly, but this year, many many many unsuspecting southerners had their cars unable to move, for this very reason. it was on the news, and I had myself a good laugh!
Shortly after I moved here from Georgia I had that happen to me. Luckily I had another car that was not so afflicted and was able to get to work. At the time I was in a training class which included a Canadian. He made fun of me.
__________________
Anyone who thinks a 300D is fast drives too slow.

83 300D Turbo with manual conversion, early W126 vented front rotors and H4 headlights 351,xxx miles
08 Triumph Street Triple 21,xxx miles, lowered 10mm in front, Pirelli Angel GT tires, otherwise stock.
Reply With Quote
  #12
Old 03-08-2010, 09:31 PM
gatorblue92's Avatar
Save the manuals!

Join Date: Jan 2006
Location: Delaware
Posts: 3,315
shifter bushings... had the same issue with the same symptoms
__________________
1977 MB 240D 4 speed 144K - Nearly Perfect
1984 MB 300 TD wagon - 188K - new project
2014 Honda CR-V 70k - Wife's DD
2018 Ford F-150 5.slow 7k - My DD


1979 MB 280E 90K - Sold
1983 MB 240D 238K - Scrapped
1984 MB 300D 347K? - Sold
1987 MB 300E 5 speed 258K - Scrapped
1991 300TE 5 speed 276k - Sold
1993 MB 400E 130K - Sold
1995 MB E320 - Sold
Reply With Quote
  #13
Old 03-18-2010, 10:35 PM
Registered User

Join Date: Apr 2009
Location: Denver, CO
Posts: 120
my SD just started doing this about a week ago. when i put it in park i can hear the pawl clicking as if its trying to catch but the car keeps rolling forward (or back) so i have been using the parking brake. how hard is it to replace the worn metal parts in the trans?
__________________
1981 300SD, 270K, two tank wvo system
1985 300D, 288K, california version
1985 300DT wagon, 315k, broken odo
Reply With Quote
  #14
Old 03-18-2010, 11:17 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,148
I'd change the plastic shifter bushings first.
pretty simple to do if you have a floor jack and jack stands, or car ramps.
as far as fixing a pawl issue with the transmission, a junkyard replacement comes to mind...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #15
Old 03-19-2010, 03:55 AM
turbobenz's Avatar
Registered User

Join Date: Nov 2007
Location: Cameron Park CA
Posts: 1,863
Quote:
Originally Posted by vstech View Post
I grew up in rural SD... it gets cold there.
we got in the habit of NEVER using the parking brake. because it had a nasty tendency to melt snow and such from the road, and freeze in position. and the brake would not release.
I know it's silly, but this year, many many many unsuspecting southerners had their cars unable to move, for this very reason. it was on the news, and I had myself a good laugh!

put it in drive and go, the ice will melt
__________________
1981 300SD 512k OM603


Reply With Quote
