Question Hard Accelerator Pedal fix?

I've gone though and adjusted / lubed all the pushrods to FSM specs.

The pedal is still fairly stiff and takes a lot of force to push through the entire travel range - sticking though - just stiff.

This is on the '85. The 82's pedal is much easier. The '82 is in storage so a side by side comparison is not easy at the moment.

What can I check / lube / change to make it easier? Have a 6k-mile road trip coming up and my gf cant drive the car with the pedal in it's current condition :-(

Thanks, dd
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #2
Old 04-19-2010, 12:04 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 25,825
start at the pedal itself. carpeting can sometimes jam itself under things, causing issues.
then look at the pivot bushing on the firewall, see if it's disintegrated and causing binding.
if you have already cleaned and lubed all the connections on the linkage, take each one apart and see if the individual parts are seized.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #3
Old 04-19-2010, 01:12 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 22,077

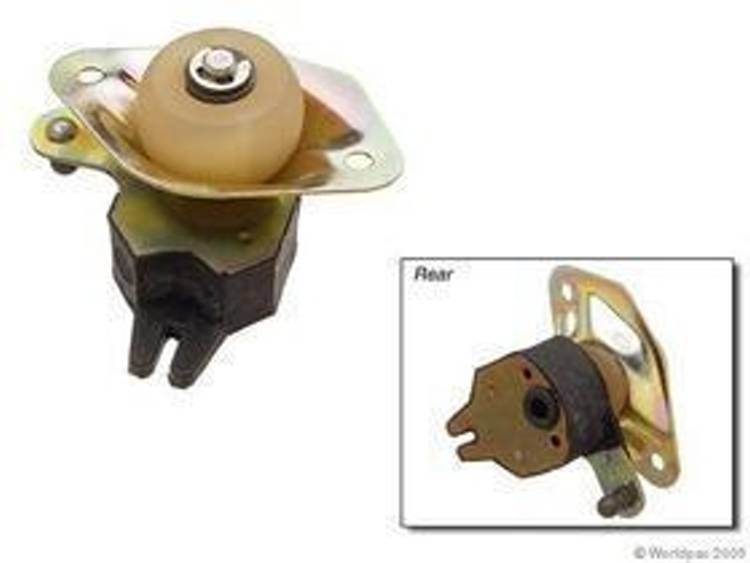

The below pick item is attached to the Fire Wall. When Old the Plastic Ball/Bushing on the back falls apart and cracks. I believe it is also supposed to be able to swivel a little like a Ball Joint.

I pulled one from the Junk Yard just to have an extra but I found thaw while the Ball was mostly intact there is a Groove worn in the front that would prevent it form swiveling around.


Also I do not recall you saying if this problem showed up by itself or if it happend after you did some work on your car?
Attached Thumbnails
Hard Accelerator Pedal fix?-throttle-bushing-b.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #4
Old 04-19-2010, 01:36 PM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,028
The problem has always existed on the car.

vstech, I'll check the other parts out.

thank 911 I'll check that part out.

I was wondering if people have been replacing the spring for a lighter one. Ive seen others complain about the pedal stiffness on 617952 setups before.
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #5
Old 04-19-2010, 09:50 PM
MBeige's Avatar
Registered User

Join Date: Apr 2005
Location: SoCal
Posts: 3,746
Not sure but I think there are two holes on the firewall for the spring mount. Maybe the higher one will give it a better (softer) feel.
Reply With Quote
  #6
Old 04-20-2010, 12:27 AM
Registered User

Join Date: Sep 2001
Location: central Texas
Posts: 17,037
That spring has a safety aspect to it I would guess...
Think about these Recalls lately where the throttle stayed engaged...

That spring MUST be able to return that string of rods and friction spots back to idle...no matter how stiff they get from lack of lube OR ANYTHING ELSE.. ..... or something bad might happen in an unexpected flash....

So I would not be changing the spot it is hooked and decrease the pressure RETURNING the throttle towards OFF... ( I know we have no 'throttle'....but you get the point).
Reply With Quote
  #7
Old 04-20-2010, 12:44 AM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,028
Quote:
Originally Posted by leathermang View Post
That spring has a safety aspect to it I would guess...
Think about these Recalls lately where the throttle stayed engaged...

That spring MUST be able to return that string of rods and friction spots back to idle...no matter how stiff they get from lack of lube OR ANYTHING ELSE.. ..... or something bad might happen in an unexpected flash....

So I would not be changing the spot it is hooked and decrease the pressure RETURNING the throttle towards OFF... ( I know we have no 'throttle'....but you get the point).
leathermang,

point taken. good spot to use a great deal of caution for sure.

dd
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #8
Old 04-20-2010, 12:53 AM
bustedbenz's Avatar
Registered User

Join Date: Feb 2007
Location: Lexington, NC or Boone, NC
Posts: 2,268
The accelerator pedal, made of some rubbery material, attaches to the metal portion of the accelerator rod right at the pedal through a round hole that's built onto the back side of the pedal in a little frame thing. This rubber has a TERRIBLY frequent tendency to tear, break, come off, twist off, and otherwise shred itself. When this happens, the early symptom is that the pedal feels like you're forcing it through a bind. Then you stomp it a little harder, it finally tears in half, and you're left with a pedal that is attached at the floor but not to its shaft. The shaft lodges in another part of the pedal back, thus making the angle of travel wrong, and it quits pressing at all. To get out of traffic you have to remove the pedal and just accelerate by pressing the metal rod.

Point is: get on your hands and knees and inspect the pedal where it is attached to the rod it pushes. See if it's ready to fall off in your hand and therefore in need of replacement.

I know this is how my 1986 pedal works. I BELIEVE yours is the same, but if it is not, then nothing I said is valid.
__________________


http://www.appstate.edu/~salleyms

"What could possibly go wrong?"

~Michael S.~ -
1986 M-B 300SDL, retired due to rust and electrical problems. Donated engine to:
1987 M-B 300SDL, odo dead. New project.
1982 M-B 240D, odo stopped at 308,000
1982 M-B 300SD, 175,000
1989 Dodge Ramcharger, 87,000 - 4wd, 318
Reply With Quote
  #9
Old 04-22-2010, 02:19 PM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,028
anyone ever remove the accelerator?

i see the FSM article on it, whats the trick to compressing the clip? it seems like the kind if thing that doesnt want to move.

i think my bushing is OK - its hard plastic, right?
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #10
Old 04-22-2010, 03:28 PM
LUVMBDiesels's Avatar
Dead on balls accurate...

Join Date: Aug 2006
Location: Red Lion,Pa
Posts: 2,207
Quote:
Originally Posted by bustedbenz View Post
The accelerator pedal, made of some rubbery material, attaches to the metal portion of the accelerator rod right at the pedal through a round hole that's built onto the back side of the pedal in a little frame thing. This rubber has a TERRIBLY frequent tendency to tear, break, come off, twist off, and otherwise shred itself. When this happens, the early symptom is that the pedal feels like you're forcing it through a bind. Then you stomp it a little harder, it finally tears in half, and you're left with a pedal that is attached at the floor but not to its shaft. The shaft lodges in another part of the pedal back, thus making the angle of travel wrong, and it quits pressing at all. To get out of traffic you have to remove the pedal and just accelerate by pressing the metal rod.

Point is: get on your hands and knees and inspect the pedal where it is attached to the rod it pushes. See if it's ready to fall off in your hand and therefore in need of replacement.

I know this is how my 1986 pedal works. I BELIEVE yours is the same, but if it is not, then nothing I said is valid.

Beat me to it! I just replaced the 2nd pedal in the SDL

To compress the clip simply reach in the back of the pedal and squeeze it together. It helps to have needle nose pliers to pull the clip out of the pedal and metal fitting.

The replacement takes literally 2 minutes.
__________________
"I have no convictions ... I blow with the wind, and the prevailing wind happens to be from Vichy"

Current
Monika '74 450 SL
BrownHilda '79 280SL
FoxyCleopatra '99 Chevy Suburban
Scarlett 2014 Jeep Cherokee
Krystal 2004 Volvo S60
Gone
'74 Jeep CJ5
'97 Jeep ZJ Laredo
Rudolf 86 300SDL
Bruno '81 300SD
Fritzi '84 BMW
'92 Subaru
'96 Impala SS
'71 Buick GS conv
'67 GTO conv
'63 Corvair conv
'57 Nomad
Reply With Quote
  #11
Old 04-22-2010, 04:24 PM
MBeige's Avatar
Registered User

Join Date: Apr 2005
Location: SoCal
Posts: 3,746
I took the clip or bushing from behind the pedal once to clean it, the process was quick and easy. However, I still have the same feeling of stiffness on the pedal. I merely cleaned it up. Did not have any need to replace it.
Reply With Quote
  #12
Old 04-23-2010, 01:18 AM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,028
RE: the bottom piece - I tried pushing mine together....and then prying it with pliers. The thing is held in with black magic. Ill give it another go tomorrow.

BTW - I changed out my firewall bushing near the oil filter canister - no real difference in pedal feel. The original one did have a lot of play and was pretty far gone.
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
  #13
Old 04-23-2010, 01:31 AM
Vice President of Snark

Join Date: Nov 2009
Location: Austin, TX
Posts: 1,141
Quote:
Originally Posted by dieseldan44 View Post
BTW - I changed out my firewall bushing near the oil filter canister - no real difference in pedal feel. The original one did have a lot of play and was pretty far gone.
Pretty far gone is when that nylon ball has disintegrated and it's barely staying together. Been there. Done that.
__________________
'95 E300d - Not even 100k yet
'15 Volvo XC70 T6 - Wife's sled
'85 300TD "Puff The Magic Wagon" - selling?
'84 300TD "Brown Betty" - Miss this one
'81 240D "China Baby" - Farm grocery getter
Reply With Quote
  #14
Old 04-23-2010, 01:54 AM
Registered User

Join Date: Aug 2005
Location: Palmdale/Ventura, CA
Posts: 812
Funny that this would come up tonight.

After years of thinking my 1983 300SD was just too darn tight.
I removed the spring on top of the valve cover that is coiled and hooked
on (under) the lever that the transmission cable attaches to, the cruise control attaches to, and the throttle attaches to.

If you have ever disassembled this whole thing to lubricate ( and I hope everyone here has done this at least once) you have to deal with this spring.

My motivation and comparison was that the 1980 300D has the smoothest and weakest throttle ever. I love that car.
But the 300SD makes my right leg hurt. I use cruise control a lot.

Tomorrow I will put on my daily 150 miles (4 days a week) and let you all know
how it went. Expecting the cruise control to work just fine.
Love the smoother operation.

I do keep an eye on the firewall mount point, I do lube the ball sockets, but I
did not know about that back of the pedal thing. I will check it tomorrow.
__________________
80 300D 340K Owned 30 yrs
83 300SD 440K Owned 9 yrs - Daily Driver 150mi/day
02 Z71 Suburban 117,000
15 Toyota Prius 2600 miles
00 Harley Sportster 24k
09 Yamaha R6
03 Ninja 250
Reply With Quote
  #15
Old 04-23-2010, 11:55 AM
dieseldan44's Avatar
Registered User

Join Date: Nov 2006
Location: Boston
Posts: 2,028
Quote:
Originally Posted by rhodes2010 View Post
Funny that this would come up tonight.

After years of thinking my 1983 300SD was just too darn tight.
I removed the spring on top of the valve cover that is coiled and hooked
on (under) the lever that the transmission cable attaches to, the cruise control attaches to, and the throttle attaches to.

If you have ever disassembled this whole thing to lubricate ( and I hope everyone here has done this at least once) you have to deal with this spring.

My motivation and comparison was that the 1980 300D has the smoothest and weakest throttle ever. I love that car.
But the 300SD makes my right leg hurt. I use cruise control a lot.

Tomorrow I will put on my daily 150 miles (4 days a week) and let you all know
how it went. Expecting the cruise control to work just fine.
Love the smoother operation.

I do keep an eye on the firewall mount point, I do lube the ball sockets, but I
did not know about that back of the pedal thing. I will check it tomorrow.
Ive run in to this spring...its a beast. So you just took it out altogether?

My cruise is totally removed, is its function to help regulate cruise only?

Does your '80 300D have it?

dd
__________________
-------------------------------
'85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit)
'82 300D, 'Tex', 228k body / 170k engine ... summer car
'83 300TD Cali Wagon 210k, wife's car
Reply With Quote
