  #61
Old 11-13-2010, 11:25 PM
BodhiBenz1987's Avatar
Registered User

Join Date: Dec 2004
Location: East Coast
Posts: 3,005
Quote:
Originally Posted by Billybob View Post
I can't imagine that any drop can damage an axle, and I couldn't see anything in the picture. Are you talking about the CV joint boot or some part of the axle itself?

You can use dollies if you've got them or you can also put a wheel back on each hub and roll it out like that if you've got the rear end up high enough.
It's really weird ... it's under the CV boot, where there's a big crack ... it's just this large bump under the boot. I'm pretty wiped out so maybe I'm just losing it, but shouldn't the area under the CV joint be fairly ... round? It really didn't seem like a "drop" that would damage anything ... surely the car has seen MUCH worse on the road in terms of impact! Since I have to take them off anyway, surely I'll find out more.
I don't think the rear is quite high enough to roll it out on the wheels ... too bad I don't have a couple junk rims, that'd be pretty easy. I'll try the wheels though, it's possible it might fit.

__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--370,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--19,000 miles
1982 Peugeot 505 diesel, 4-speed manual, blue/blue, 130,000 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
  #62
Old 11-13-2010, 11:29 PM
BodhiBenz1987's Avatar
Registered User

Join Date: Dec 2004
Location: East Coast
Posts: 3,005
What I know everyone wants ... pictures. Yes I know it's gross ... that's why I'm replacing it.





__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--370,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--19,000 miles
1982 Peugeot 505 diesel, 4-speed manual, blue/blue, 130,000 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
  #63
Old 11-14-2010, 03:16 AM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
You have some rust treatment to do before it goes back together! Looks like you are getting there.
Is there a pic of the cv problem? Could have been hit by a rock a long time ago.

Edit, just saw pic on previous page.
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #64
Old 11-14-2010, 05:55 PM
BodhiBenz1987's Avatar
Registered User

Join Date: Dec 2004
Location: East Coast
Posts: 3,005

I bought a set of those dollies made for moving cars around on their wheels. The frame balances perfectly on it and is really easy to move around! Obviously to remove the wheel carriers I'll need to support it elsewhere, but right now I'm focusing on cleaning up the rust situation on the underside of the car. Most of it is just surfaces stuff which I'm sanding off and will POR15 over. But one of the front posts is really, really bad. Or at least the area under it. I'm going to clean it up with my dremel and probably fill in the holes with POR Putty then paint it. The part underneath it, I'm going to try to have a body guy look at when I get everything back together. It's actually part of the rocker, which I think I'll have professionally replaced as a big Christmas gift to myself. Other than that, though, looks pretty good. The bright side of having diff oil flung all over is that most of the undercarraige is rustproofed.
Here is a close pic of the axle. It appears the "lump" is part of the axle's end, where the boot attaches ... it turns fine, nothing loose or clunky. Odd.
__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--370,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--19,000 miles
1982 Peugeot 505 diesel, 4-speed manual, blue/blue, 130,000 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
  #65
Old 11-14-2010, 08:28 PM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
My guess is that joint has taken a hit a long time ago. Probably a bit of road junk. Or some idiot tried to leaver the axle on there. That boot is just about cracked all the way through.

I would not get under your car while on those supports. In work shops they are often known as 'widow makers'. They are not stable enough. if you pushed the car forward or side ways, it looks like it would fall.
Please get your 2 ramps, place a block of wood on each of them & put them under the car. Even if the car is not resting on them, at least if it were to topple over with you under it, you would have the height of the ramp as safe space. Bruised but not squashed!!
It looks like you are doing a great job !!
Good Luck !
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #66
Old 11-14-2010, 09:49 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,389
I gotta agree. those style jack stands are pure junk.
you need the square welded style with cast iron lifts.
I like the 6 ton models. they are wide enough to handle the face of the unibody frame without damage, and they fit well in the nooks and crannies of the car's structure. also the square frame is MUCH sturdier!
at a minimum, I would store the tires under the frame of the body to catch the car if something tips. even better is to put the tires under, then wedge some 2x6's into the space.
keep up the good work! and keep pics coming!
I don't see the damage on the axle, but what I do see is the boot and can damage on your axles from age and rust.
I'd certainly remove the boots, and wire brush all the rust off the cans and por-15 it! then reboot with new Flexx boots and some fresh gear oil in the cans!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #67
Old 11-14-2010, 09:52 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,389
oh. by the by...
I have twins of each of your cars!
a white 87 300D, and a white 84 euro 240 5speed! good taste! those cars look GOOD in your garage!

oh, and a very nice garage too! it looks like you could park 4 in there, or at least three with one sideways in front of the cars!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #68
Old 11-14-2010, 09:59 PM
BodhiBenz1987's Avatar
Registered User

Join Date: Dec 2004
Location: East Coast
Posts: 3,005
Quote:
Originally Posted by layback40 View Post
My guess is that joint has taken a hit a long time ago. Probably a bit of road junk. Or some idiot tried to leaver the axle on there. That boot is just about cracked all the way through.

I would not get under your car while on those supports. In work shops they are often known as 'widow makers'. They are not stable enough. if you pushed the car forward or side ways, it looks like it would fall.
Please get your 2 ramps, place a block of wood on each of them & put them under the car. Even if the car is not resting on them, at least if it were to topple over with you under it, you would have the height of the ramp as safe space. Bruised but not squashed!!
It looks like you are doing a great job !!
Good Luck !
Thanks, I'll throw the ramps back under it. I did have them under there the whole time before I rolled the frame out, just FYI. Rght now I'm working in the wheel well, but nonetheless don't want the car to fall on the floor so I'll replace the ramps. I do have the wheels on their side under the rocker panels in front of the jackstands, as well as six jackstands, but probably should move the wheels farther back.
__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--370,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--19,000 miles
1982 Peugeot 505 diesel, 4-speed manual, blue/blue, 130,000 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
  #69
Old 11-14-2010, 11:55 PM
BodhiBenz1987's Avatar
Registered User

Join Date: Dec 2004
Location: East Coast
Posts: 3,005

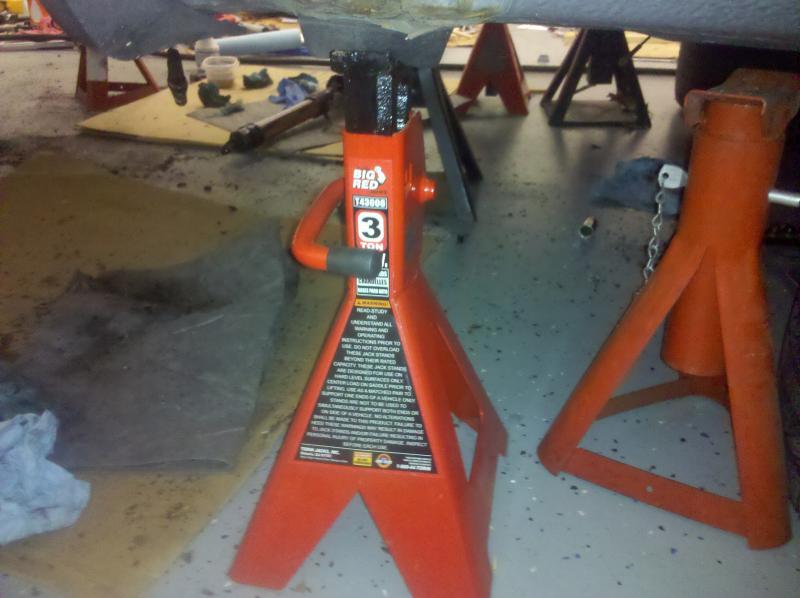

What about this type of jackstand? These are the kind I have mainly supporting the car. I also have another set with four legs but looks like a steels top that are positioned in spots under the frame. The three-footed ones were just some I grabbed from my dad's shop as extras, i was using them to support the subframe's front while I maneuvered it down. I moved the wheels farther back under the frame and added the ramps back under there.
Attached Thumbnails
A subframe question (just the beginning ...)-img_20101114_210721.jpg
__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--370,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--19,000 miles
1982 Peugeot 505 diesel, 4-speed manual, blue/blue, 130,000 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
  #70
Old 11-15-2010, 12:15 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,389
Quote:
Originally Posted by BodhiBenz1987 View Post
What about this type of jackstand? These are the kind I have mainly supporting the car. I also have another set with four legs but looks like a steels top that are positioned in spots under the frame. The three-footed ones were just some I grabbed from my dad's shop as extras, i was using them to support the subframe's front while I maneuvered it down. I moved the wheels farther back under the frame and added the ramps back under there.
yup. that's the kind I like. the 6 ton units are a bit beefyier but the 3 tonners' are MUCH Better than those 1.5 jobs with the skinny tin feet.
cool.
safety is prime when doing this much work on a car. and if you have the front tires on the ground, be sure and have solid rubber chocks under them front and back!
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #71
Old 11-15-2010, 05:12 AM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
Could you grab the back of the car & push it any way & have it fall off the stands? When you are under there wrenching, thats what you are doing.
I was once told that the width of the base of the stand needs to be at least 75% of the lifted height. That way it is stable.
Those ramps of yours even if rolled over by an earth quake would not let the car fall further.
Sorry if I sound like a PITA, I would feel like a real PR#CK if I saw something like that & didnt say anything, only later to hear it had toppled over.
Now if you had a good strong roof frame above the back of the car, you could have it hung up on a couple of chains with padding to protect the back. Then you could have clear space under there.
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #72
Old 11-15-2010, 10:13 AM
Fulcrum525's Avatar
Sing Blue Silver

Join Date: May 2008
Location: CT
Posts: 2,113



We have both sets like you have and the one of the left scares me so I don't use it. We have a pair of them and I swear that any movement on the thing causes the jack to lower itself.

I prefer the jack on the right that uses a proper pin. We have several different kinds and they never budge.

Glad to hear that you finally got the sub-frame out! It's always satisfying to accomplish something...especially when it's been such a PITA
__________________
1982 300GD Carmine Red (DB3535) Cabriolet Parting Out
1990 300SEL Smoke Silver (Parting out)
1991 350SDL Blackberry Metallic (481)

"The thing is Bob, its not that I'm lazy...its that I just don't care."

Last edited by Fulcrum525; 11-15-2010 at 10:24 AM.
Reply With Quote
  #73
Old 11-15-2010, 10:47 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,389
Quote:
Originally Posted by Fulcrum525 View Post



We have both sets like you have and the one of the left scares me so I don't use it. We have a pair of them and I swear that any movement on the thing causes the jack to lower itself.

I prefer the jack on the right that uses a proper pin. We have several different kinds and they never budge.

Glad to hear that you finally got the sub-frame out! It's always satisfying to accomplish something...especially when it's been such a PITA
... if you have the cast lever holding the rod in position, with weight on it, there is no way for it to allow the car to lower... if yours wiggle, they are damaged, or installed backwards...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #74
Old 11-15-2010, 03:24 PM
Fulcrum525's Avatar
Sing Blue Silver

Join Date: May 2008
Location: CT
Posts: 2,113
Quote:
Originally Posted by vstech View Post
... if you have the cast lever holding the rod in position, with weight on it, there is no way for it to allow the car to lower... if yours wiggle, they are damaged, or installed backwards...

I've never tested them with weight and will only use them if the car is low enough so that if it does fall it only has an inch to fall onto the stands lowest setting. I just don't trust them so I use the pin jacks. We use the stands as the secondary safety measure, not the first.


(Also only once did we have the car supported on something other than the jack and in that case it was just the rear wheels which were being held up with another set of wheels)
__________________
1982 300GD Carmine Red (DB3535) Cabriolet Parting Out
1990 300SEL Smoke Silver (Parting out)
1991 350SDL Blackberry Metallic (481)

"The thing is Bob, its not that I'm lazy...its that I just don't care."
Reply With Quote
  #75
Old 11-18-2010, 01:45 AM
BodhiBenz1987's Avatar
Registered User

Join Date: Dec 2004
Location: East Coast
Posts: 3,005
New question: I order new outer boots for the axles, but from what I gather in the FSM, you have to change the inner boots to get to the outer ones? Am I reading that wrong? The inner boots really don't look as bad, and the metal onto which they attach looks pretty clean too (probably because it was covered in oil from the diff over the years). The replacement kits are pretty expensive to replace something that doesn't look like it's got a problem. The outer ones look a bit cracked (and the one has that deep crack) and rusty underneath so I definitely want to change them ... do I need to do all four or will the boot come off the outer end?

__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--370,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--19,000 miles
1982 Peugeot 505 diesel, 4-speed manual, blue/blue, 130,000 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 04:54 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2020, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
