OM617 rocker arm problem?
G'day All,
The end is nigh - or so I thought. My OM617 engine rebuild rolls on at the speed of a lazy snail until it hits the next technical hitch... I've got a new camshaft, new rockers, and new rocker spindles as the old ones were deeply scored and some of the old rockers were wedged on the old spindles good and proper. When adjusting the valves on the back rockers - the set of four rockers on the shorter spindle over cylinders 4 and 5 - I got the impression that the spindle was curved as the cam lobe did not align nicely with the rocker. This rocker set was a tight little bugger to fit and previously there had been some damage to the underside of the last rocker "tower". I am now trying to source replacement towers for this back rocker set => p/n is 616 055 00 10 So my question is:- Has anyone come across this problem before? Has anyone ever made a fix that didn't involve replacement of the slightly knackered tower? PS:- I've found loads of threads concerning rocker problems on petrol engines on this forum but few for the diesels...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! Last edited by Stretch; 01-25-2011 at 05:38 AM. Reason: PS |
#2
|
||||
|
||||
Is it a tower problem or a bent shaft?
Some small Isuzu diesels with belt drive OHC have weak tower bolts so that if the belt fails the bolts fail before the pistons & valves are damaged. If the motor has had a problem at some stage in the past, it may have something a little out of shape.
__________________
Grumpy Old Diesel Owners Club group I no longer question authority, I annoy authority. More effect, less effort.... 1967 230-6 auto parts car. rust bucket. 1980 300D now parts car 800k miles 1984 300D 500k miles 1987 250td 160k miles English import 2001 jeep turbo diesel 130k miles 1998 jeep tdi ~ followed me home. Needs a turbo. 1968 Ford F750 truck. 6-354 diesel conversion. Other toys ~J.D.,Cat & GM ~ mainly earth moving |
#3
|
||||
|
||||
Quote:
The upper surface of the head could be slightly out of whack - but I think that it is more likely that the between the mounting holes on the head is slightly shorter than the distance of the mounting bolts in the towers. I'm about to measure this to check. (To be updated)
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#4
|
||||
|
||||
Update:-
The distance between the mounting holes on the head and the holes on the underside of the towers is difficult to measure but they seem similar - they are both about 90.8mm (that's the best measurement I could make with my vernier caliper).
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#5
|
||||
|
||||
Holy cow - the cost of a new tower (at the dealer) is 169.28 euros plus 19% sales tax... me thinks I'll be visiting the scrappy...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#6
|
||||
|
||||
Update - problem with hole position in head...
I bought some second hand rocker towers for 10 euros a piece and I set to putting the rocker arms into position.

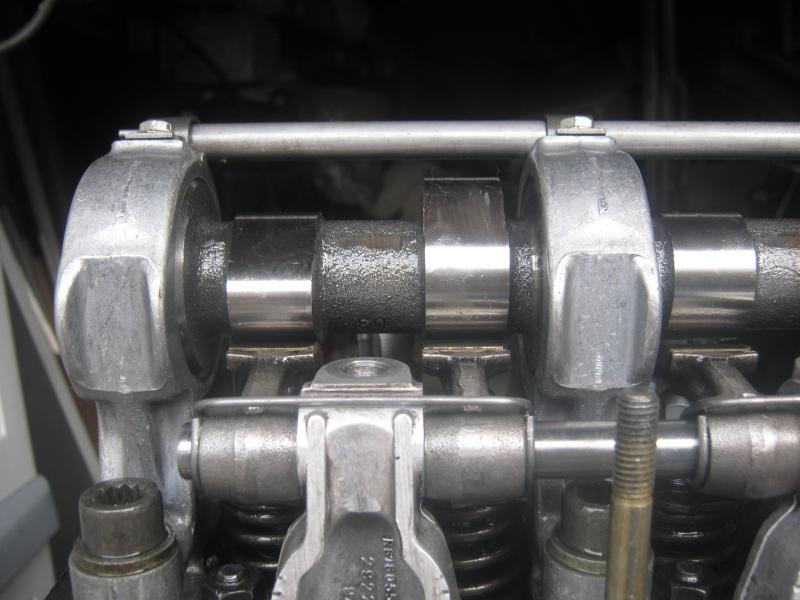

The replacement towers are sitting in front of the old ones in this picture - you can see that the locating holes are not oval! When fitted to the engine I got the old problem again - the shaft was bending and I could see that the rockers were not nicely in line with the camshaft. The gaps on the replacement rocker towers were larger than with the original rocker towers:- 0.7mm above cylinder 5 and 0.6mm above cylinder 4. There was only a gap under the towers where you can see the feeler gauges. Looking at the position of the rocker arms and the cam you get this for cylinder 5:- And the problem above cylinder 4 is here:- Here you can see that when the rocker tower is located correctly over the locating ring on the head that the rockers don't line up. Bugger! I think the holes have been drilled slightly incorrectly in this head. Has anybody seen this before?
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#7
|
|||
|
|||
A few ideas/observations:
It looks like the replacement towers have a slightly uneven surface or flat surface. On the far right of the pic you can see a different reflectivity. Do you have the tools or a table to check the flatness of the tower? A pane of glass or a lapping surface, perhaps? If it's flat, is also square with the holes? Also, have you checked the bolts for trueness? And/or the holes in the head for thread size and cut? Your last two pics are taken without the bolts in place, correct? If so, I don't think the problem is with the holes in the head, since they're not involved in that picture. That would leave the shaft, the rockers, or the cam as variables, wouldn't it? |
#8
|
||||
|
||||
Quote:
Thanks for the input Yak
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#9
|
||||
|
||||
heh. how bad would you like one?
I've got a granite one, and a steel one... shipping might be a killer though...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread "as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do! My drivers: 1987 190D 2.5Turbo 1987 190D 2.5Turbo 1987 190D 2.5-5SPEED!!! 1987 300TD 1987 300TD 1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere! |
#10
|
|||
|
|||
How do the stanchions fit if you bolt them down without the shaft? Could something on the shaft be forcing the top of the stanchions apart?
|
#11
|
||||
|
||||
Only issues Ive had with these was a set-bolt that was just slightly bent and had a damaged thread...
--Prolly from some muppet in the past. The head thread was fine, so were the towers and follower-shafts. --It too was on nos. 5/6 pot supports... Fitted new (S/H) set-bolt and all was fine....
__________________
http://i190.photobucket.com/albums/z...0TDnoplate.jpg Alastair AKA H.C.II South Wales, U.K. based member W123, 1985 300TD Wagon, 256K, -Most recent M.B. purchase, Cost-a-plenty, Gulps BioDiesel extravagantly, and I love it like an old dog. W114, 1975 280E Custard Yellow, -Great above decks needs chassis welding--Really will do it this year.... |
#12
|
||||
|
||||
Quote:

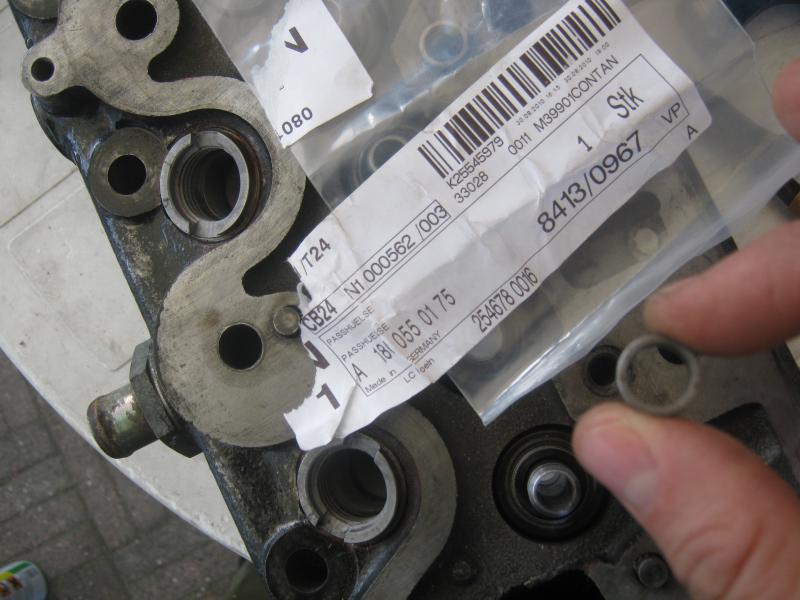

The locating ring for the rocker tower above cylinder 5 was all mangled up so I replaced it:- Just knocked it out with a hammer and punch (as carefully as possible!). The hole "north" of the mangled locating ring is a hole for a (head) bolt. Part number for the ring:- EDIT:- I've just ordered another locating ring from the dealer and I'm reliably informed that there is a fold in the bit of paper that shows the part number! The part number is 180 055 01 75
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! Last edited by Stretch; 02-08-2011 at 08:07 AM. Reason: More information |
#13
|
|||
|
|||
There are different p/n rocker arms based on engine # and/or camshaft.
6150550201 All 617.910, To 617.912-077421 6160500333 From 617.912-077422 Another site say 50201 is for "models with original non-hardened camshaft 6160510201 or 6170510001. Limited availability" Did you possibly get the wrong part for the new camshaft |
#14
|
||||
|
||||
Quote:
You can see that the feeler gauges slide neatly under the inner sides of both towers. The outer sides are firmly on the surface of the head. To show how the towers are out of alignment I'll try and take some measurements and more photographs tomorrow. Thanks for the help Yak!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#15
|
|||
|
|||
Has the head been milled? The hole in pic #2 of post 12 looks uneven/shallow. That may just be the pic since it looks deeper in pic#3
I'd check to see if the tower sits flat without the ring in place. Or place the ring in the tower off the head and measure protrusion. More or less than the detent in the head? |
