What is the 0(2) sensor light on the dash of an 83sd for?

I've recently been given an 83 300SD (turbo) and don't have a manual on it, and I'm wondering what the dummy light on the dash that's marked "0" 2 (as in 0-squared) is in reference to? And how do you check to make sure it's working correctly, what would it indicate if it was on, etc? My 81 300D doesn't have it.

__________________
"Knowing is not enough, we must apply.
Willing is not enough, we must do." Goethe

***********************************


1951 Chevy 3100

2003 Indian Chief Roadmaster

1983 GMC 1 ton Dually

1982 Chevy 1 ton Dually, service body (sold)

'90 GMC Suburban 6.2 "SS Veg-Burban"
(single tank WVO\diesel conversion) SOLD

'81 300D ~ Mama's car...my job (now my car)(but still my job) SOLD

'83 300sd ~ rescue car SOLD

2005 Ford Taurus (Mama's new car)(NOT my job!)
Reply With Quote
  #2
Old 02-12-2011, 08:25 PM
Registered User

Join Date: May 2009
Location: Salt Lake City, UT
Posts: 477
Quote:
Originally Posted by showme View Post
I've recently been given an 83 300SD (turbo) and don't have a manual on it, and I'm wondering what the dummy light on the dash that's marked "0" 2 (as in 0-squared) is in reference to? And how do you check to make sure it's working correctly, what would it indicate if it was on, etc? My 81 300D doesn't have it.
sounds like your gauge cluster has been replaced with a cluster from a gas powered 126. Diesels dont have o2 sensors. I would ignore it or replace your cluster with a proper diesel cluster.
__________________
1987 300D 180k
1985 300SD 330k Helga
1992 300D Lola 269k- Sold
1986 325 coupe Bessie >300k Original engine(ODO Broke) sold
2006 2500HD Druamax Linda- Tows boat and looks pretty in garage thats about it
Reply With Quote
  #3
Old 02-12-2011, 08:27 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,835
never seen one in any of my SD's... I've got 3 and work on about 10 others...
ya got pics?
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #4
Old 02-13-2011, 10:16 AM
showme's Avatar
Mama's 300D

Join Date: Jan 2008
Location: Missouri
Posts: 482
That is strange. I'll get a picture of it with my cell phone and put it on here. At least I don't have to worry about another system to trouble shoot.
__________________
"Knowing is not enough, we must apply.
Willing is not enough, we must do." Goethe

***********************************


1951 Chevy 3100

2003 Indian Chief Roadmaster

1983 GMC 1 ton Dually

1982 Chevy 1 ton Dually, service body (sold)

'90 GMC Suburban 6.2 "SS Veg-Burban"
(single tank WVO\diesel conversion) SOLD

'81 300D ~ Mama's car...my job (now my car)(but still my job) SOLD

'83 300sd ~ rescue car SOLD

2005 Ford Taurus (Mama's new car)(NOT my job!)
Reply With Quote
  #5
Old 02-13-2011, 02:05 PM
Renntag's Avatar
User Especial

Join Date: Jul 2008
Location: Kona, Hi
Posts: 1,396
Yes, a picture is worth a thousand words.

I agree that you have an Espritzen cluster. Is there a glow plug lamp?
If not, then your cluster was swapped from an E.
__________________
83 300TD (need rear wiper assembly dead or alive)
84 300SD Daily driver
85 300TD almost 400k miles and driven daily.
98 E300D *sold
86 300SDL *sold and made flawless 10 hour journey to new home.
Reply With Quote
  #6
Old 02-13-2011, 03:37 PM
bustedbenz's Avatar
Registered User

Join Date: Feb 2007
Location: Valle Crucis, NC
Posts: 2,283
Does your tachometer have a "red line" on it -- an actual red-painted zone at the top RPMS? If so, that's ANOTHER indication that you have a gas car cluster instead of the diesel one.

Diesel tachometers have no red markings whatsoever and only go up to "60" for 6000 rpm. Engine only does 48-5200 or something like that.

Agree that the only way you could get an oxy sensor light in a 300SD is by swapping the cluster.
__________________


~Michael S.~
Past cars:

1986 300SDL
1987 300SDL
1982 240D
1982 300SD


Current:

1987 300SDL
Reply With Quote
  #7
Old 02-13-2011, 04:52 PM
showme's Avatar
Mama's 300D

Join Date: Jan 2008
Location: Missouri
Posts: 482

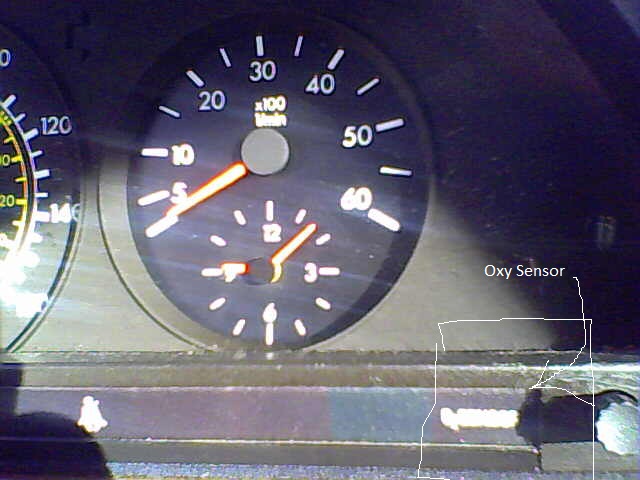

No red line that I could see. Here's a pic of the right side of the cluster with the dummy light and the tach. (Sorry, it's a cell phone pic)
Attached Thumbnails
What is the 0(2) sensor light on the dash of an 83sd for?-cluster-oxy-light.jpg
__________________
"Knowing is not enough, we must apply.
Willing is not enough, we must do." Goethe

***********************************


1951 Chevy 3100

2003 Indian Chief Roadmaster

1983 GMC 1 ton Dually

1982 Chevy 1 ton Dually, service body (sold)

'90 GMC Suburban 6.2 "SS Veg-Burban"
(single tank WVO\diesel conversion) SOLD

'81 300D ~ Mama's car...my job (now my car)(but still my job) SOLD

'83 300sd ~ rescue car SOLD

2005 Ford Taurus (Mama's new car)(NOT my job!)
Reply With Quote
  #8
Old 02-13-2011, 04:59 PM
tbomachines's Avatar
ಠ_ಠ

Join Date: Mar 2009
Location: Philadelphia
Posts: 7,364
It has been swapped, an 83 SD does not have a 160mph speedo, but rather it maxes at half that. Looks like they may have put in the original tach and clock back in. How well does your speedo work?
__________________
TC
Current stable:
- 2004 Mazda RALLYWANKEL
- 2007 Saturn sky redline
- 2004 Explorer...under surgery.

Past: 135i, GTI, 300E, 300SD, 300SD, Stealth
Reply With Quote
  #9
Old 02-13-2011, 05:25 PM
showme's Avatar
Mama's 300D

Join Date: Jan 2008
Location: Missouri
Posts: 482
Good question. I towed it home, so I haven't been able to check it, but the guy who gave it to me drove halfway across the US before it broke down, so I assume it was working ok.
__________________
"Knowing is not enough, we must apply.
Willing is not enough, we must do." Goethe

***********************************


1951 Chevy 3100

2003 Indian Chief Roadmaster

1983 GMC 1 ton Dually

1982 Chevy 1 ton Dually, service body (sold)

'90 GMC Suburban 6.2 "SS Veg-Burban"
(single tank WVO\diesel conversion) SOLD

'81 300D ~ Mama's car...my job (now my car)(but still my job) SOLD

'83 300sd ~ rescue car SOLD

2005 Ford Taurus (Mama's new car)(NOT my job!)
Reply With Quote
  #10
Old 02-13-2011, 08:20 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,835
83 SD has a 120mph speedo... Gasser tach has a redline... perhpas someone changed the differential, and swapped in an entire cluster, but kept the diesel tach/clock OE...
neato.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #11
Old 02-14-2011, 02:23 PM
Renntag's Avatar
User Especial

Join Date: Jul 2008
Location: Kona, Hi
Posts: 1,396
Agreed with above.

As for cell phone pic. Try better lighting and anchoring the phone somehow so it doesnt shake while capturing the image.
__________________
83 300TD (need rear wiper assembly dead or alive)
84 300SD Daily driver
85 300TD almost 400k miles and driven daily.
98 E300D *sold
86 300SDL *sold and made flawless 10 hour journey to new home.
Reply With Quote
  #12
Old 02-14-2011, 04:06 PM
Registered User

Join Date: Apr 2009
Location: Sunsites, AZ
Posts: 692
Awww, That just means you need to roll down the window, and let some air in!
