w123 300tdt not starting, light in dash not going out.

euro 1980 w123 300turbodiesel not starting.
starter not turning, battery measured at 13,25volts.

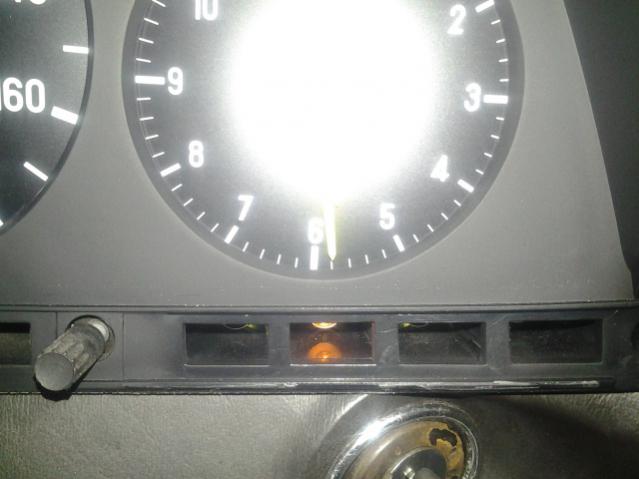

when turning the key to the starting position nothing happens, but the regular lights in the dash are on. when turning the key back to the stop position and even removing the key, two lights are still on. the battery light and the one in the picture here. Anybody have any tips on what that is suppose to mean?
the mysterious light is the third one from the right.
Attached Thumbnails
w123 300tdt not starting, light in dash not going out.-2013-03-15-22.05.35.jpg
Reply With Quote
  #2
Old 03-16-2013, 08:04 PM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,585
Are your battery connections clean? also check the ground cable where it connects between the engine adaptor plate and the chassis. look down on the drivers side behind the oil filter housing and you will see it. acessed from under the car.

I had problems with the battery light staying on and the temp gauge doing weard things, and a couple other problems. removing the cable and cleaning of some paint on the adap plate cleared things up.

Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

http://i30.photobucket.com/albums/c3...ilys/boobs.gif


Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
Reply With Quote
  #3
Old 03-16-2013, 08:45 PM
firstdiesel's Avatar
Registered User

Join Date: Sep 2002
Location: South Florida
Posts: 237
On my car the third light under the tach/clock is for the seat belts.
__________________
1980 300TD, SOLD
1984 300TD, 275K
1999 C230 K Black & Tan
2013 C250 Black
You might faint from the fight, but you're gonna find it. Every challenge could have paradise behind it. -John Popper-
Reply With Quote
  #4
Old 03-16-2013, 10:43 PM
Registered User

Join Date: Jan 2002
Posts: 18,353
Try jumping terminals 1 and 3 in the junction box in front of the battery on top of the right inner fender liner.
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
