I'll try to find something that will work. But I did already look at the plumbing section at home depot and they didnt have anything similar.

Can you tell me the outside diameter of the end that goes into the master and the end that fits into the hose?

__________________


1985 Euro 240D 5 spd 140K
1979 240D 5 spd, 40K on engine rebuild
1994 Dodge/Cummins, 5 spd, 121K
1964 Allice Chalmers D15 tractor
2014 Kubota L3800 tractor
1964 VW bug

"Lifes too short to drive a boring car"

Get the plastic nipple from Mercedes, as well as the reservoir-mastercylinder hose. Trust me, I just went through all of this with my swap about two months ago, and that was the only real solution. I also ended up having to get new master and slave cylinders after I finished the swap, as the seals in both blew out at the same time

__________________
1982 300D Turbodiesel, daily driver. Mods so far: Fram 8038 paper filter, 4 brake light mod, Gen II w126 (front) rotors/calipers, boost turned up to 12lbs, non-egr manifolds, water/methanol injection, 4-speed manual
1980 300SD Turbodiesel, project car, nearly ready to hit the street

1974 240D, New paint

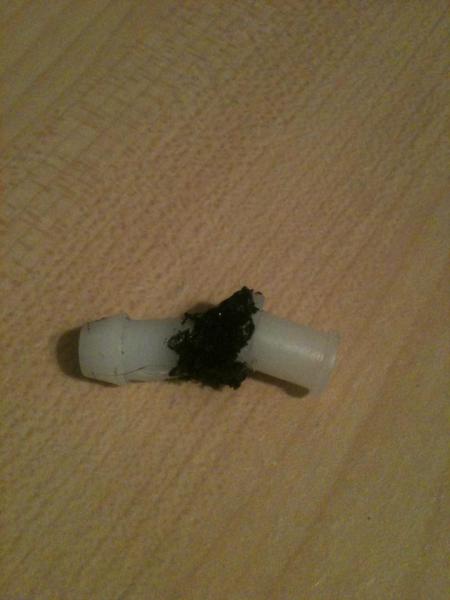

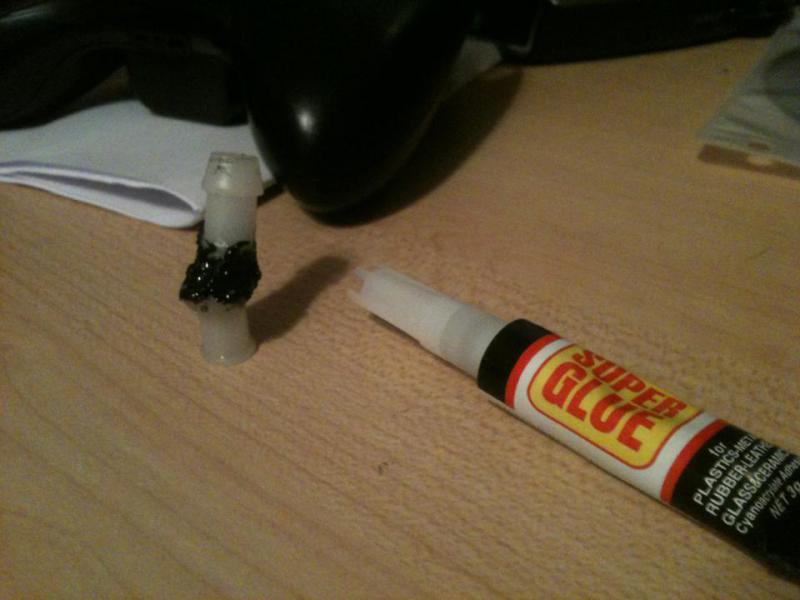

Never underestimate a 16 year olds ideas. After plastic soldering the plastic nipple back together with a black zip tie, I covered it with some super glue. Tomorrow, i'll maybe put some RTV on it just in case. It's not the best looking now. But it works.. I think.

It seems to have worked, I need to buy a new hose for it, because I cut the other one too short. Hopefully I can pump the clutch by tomorrow. Any tips on bleeding the clutch?

Did you look at the Video I sent you?

Charlie

__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works

Look at post 132 and Charlies video.

__________________


1985 Euro 240D 5 spd 140K
1979 240D 5 spd, 40K on engine rebuild
1994 Dodge/Cummins, 5 spd, 121K
1964 Allice Chalmers D15 tractor
2014 Kubota L3800 tractor
1964 VW bug

"Lifes too short to drive a boring car"

Alright guys, so my swap is basically done. Except for the fact that vibrates horribly. I hate it, at idle its a little rough, but at about 850-1100 rpms, its horrible. Im thinking it might be that cross member, so i need to change that. Also, its been having a really hard time starting up. The glow plug light only comes on sometimes, and when it does start, there is A LOT of blue smoke, and it goes away slightly, but never completely. I dont know where to start.

The hard starting could be one or more bad glow plugs. I would pull them and put 12v to each and be sure they work. Might as well start with the easy stuff

If you only need a manual cross member that shouldn't be too hard to find. Your sure you got the drive shaft put back together the same way it came apart?

__________________


1985 Euro 240D 5 spd 140K
1979 240D 5 spd, 40K on engine rebuild
1994 Dodge/Cummins, 5 spd, 121K
1964 Allice Chalmers D15 tractor
2014 Kubota L3800 tractor
1964 VW bug

"Lifes too short to drive a boring car"

I ordered a set of glowplugs while i was doing the conversion, and i changed them, except on the #1 cylinder, the glowplug somehow came apart, and white powder fell out of it. I dont know what that was, but i just installed one of the old glow plugs. I also did a valve adjustment before the conversion, but its been smoking so much, that yesterday i pulled the valve cover back off and checked if I did everything right. Everything seems to be in order, so i'm not sure why there is so much blue/white smoke. About the driveshaft, what do you mean put back together the same way it came apart? I took the rear section for the 300 shaft and front section of the 240 shaft. They shortened the front shaft in Atlanta for 70$ and they said they balanced it. I bolted it up. Not sure what you mean by that. I dont think its anything to do with the 240 flywheel, or could it be?

Also, after its finally started up after rough starting, it seems to misfire for a bit until the engine warms up.

Heres a video I uploaded to youtube on how it starts. Sorry for the horrible quality. At this point, I dont have the exhaust on, only the downpipe. 300d w123 rough start - YouTube

And heres another video on the vibration issue. 300d 4-speed Vibration Issues - YouTube

If the idle smooths out after it warms up that could indicate a bad GP, I would still pull and check them before moving to something else.

If the drive shaft was balanced after the work it should be good. I dont think the 240 F/W would cause the problem. 70$ sounds cheap for the drive shaft work but I haven,t done this swap. The center support bearing and rubber is good?

__________________


1985 Euro 240D 5 spd 140K
1979 240D 5 spd, 40K on engine rebuild
1994 Dodge/Cummins, 5 spd, 121K
1964 Allice Chalmers D15 tractor
2014 Kubota L3800 tractor
1964 VW bug

"Lifes too short to drive a boring car"

You have a glow plug issue. Most likely #1 is bad.

__________________
Whoever said there's nothing more expensive than a cheap Mercedes never had a cheap Jaguar.

83 300D Turbo with manual conversion, early W126 vented front rotors and H4 headlights 401,xxx miles
08 Suzuki GSX-R600 M4 Slip-on 26,xxx miles
88 Jaguar XJS V12 94,xxx miles. Work in progress.
99 Mazda Miata 183,xxx miles.
