  #16
Old 07-22-2013, 10:12 AM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,034
You can buy them from Pelican here:

Pelican Parts - Automotive Parts and Accessories - Porsche & BMW

Part Number 140-589-02-33-00

__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #17
Old 07-22-2013, 10:16 AM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,243
You don't need a helper. Shove a wire in the blue wire spade, use a vice grip to ground the other end of the wire. Turn key on.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #18
Old 07-22-2013, 10:17 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
^Thanks, both of you.
__________________
83 SD

84 CD
Reply With Quote
  #19
Old 07-22-2013, 10:21 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Quote:
Originally Posted by funola View Post
You don't need a helper. Shove a wire in the blue wire spade, use a vice grip to ground the other end of the wire. Turn key on.
Can I use the blue terminal block?
__________________
83 SD

84 CD
Reply With Quote
  #20
Old 07-22-2013, 10:35 AM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,243
Quote:
Originally Posted by toomany MBZ View Post
Can I use the blue terminal block?
Huh?

Unplug the connector from the alternator. Shove one end of a stripped wire in the spade of the blue wire of the connector harness. Ground the other end of the wire by using a vice grip. Turn key on and the battery light should light.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #21
Old 07-22-2013, 10:50 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820

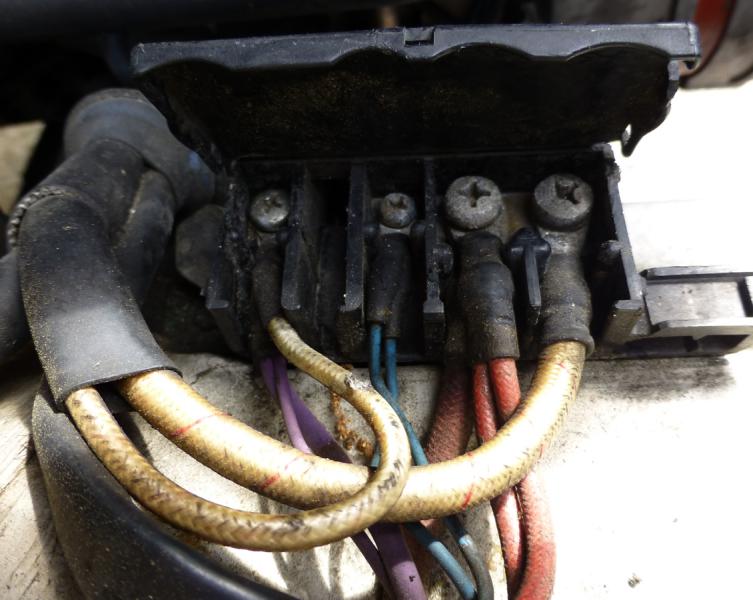

Sorry, the blue wired terminal at the electrical block under hood.

Second from left.
Attached Thumbnails
83 300SD electrical issue-screen-shot-2013-07-22-9.49.02-am.jpg
__________________
83 SD

84 CD
Reply With Quote
  #22
Old 07-22-2013, 11:09 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by toomany MBZ View Post
...

Thanks Stretch, but I don't understand that language.
Sorry I didn't explain myself properly - I thought that as it was a difficult part to find (not in EPC) then as luck would have it a forum member who happens to be here on this forum just so happens to have posted information about that part elsewhere - serendipity! But as JamesDean has found it in the pelican parts catalogue...

...hmm well that's that then isn't it...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #23
Old 07-22-2013, 11:20 AM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,243
Quote:
Originally Posted by toomany MBZ View Post
Sorry, the blue wired terminal at the electrical block under hood.

Second from left.
You are not following directions!
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #24
Old 07-22-2013, 11:23 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Well, I did it as stated above and the battery light on the dash does come on.
__________________
83 SD

84 CD
Reply With Quote
  #25
Old 07-22-2013, 11:26 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Quote:
Originally Posted by Stretch View Post
Sorry I didn't explain myself properly - I thought that as it was a difficult part to find (not in EPC) then as luck would have it a forum member who happens to be here on this forum just so happens to have posted information about that part elsewhere - serendipity! But as JamesDean has found it in the pelican parts catalogue...

...hmm well that's that then isn't it...
Yes, that part JD linked to is the cluster pullers.

My local dealer has a set in stock at a lower price.

As stated, the battery light does work when I connect a lead from the blue wired terminal and turn the key.
__________________
83 SD

84 CD
Reply With Quote
  #26
Old 07-22-2013, 12:32 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
A bit of background.

I purchased this reman alt years ago. Installed it four months ago, don't know how long it hasn't been charging, but failed last week.

This is also going on here:Alternator failure diagnoses confirmation on 82 240d.
__________________
83 SD

84 CD
Reply With Quote
  #27
Old 07-22-2013, 01:08 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,389
that's a classic sign the regulator has failed. pull the two screws on the regulator off the alt, and change it.

as for the cluster pulling... I just grab the edges of the cluster, rest my thumbs on the two knobs stickin out, and pull.

the wires on the terminal block go to the starter.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #28
Old 07-22-2013, 03:21 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
The regulator is almost new.

The other times a regulator has gone bad, the red battery light illuminates when it shouldn't.

I'm going with a new alternator.

Does anyone know if Iskra stuff is any good?

This reman unit lasted four months.
__________________
83 SD

84 CD
Reply With Quote
  #29
Old 07-22-2013, 07:56 PM
Registered User

Join Date: Feb 2013
Location: South carolina
Posts: 47
This is on my '83 300SD. I have a similar problem with the warning lights - in particular the low fuel and alternator lights. With the key on all the lights go through self test. Wait for the glow plug light to go out and start - the low fuel and alt light come on really dim. I replaced the voltage regulator a few months back and I've rechecked voltage both static 12.3 VDC and 14.1 VDC once idle levels out. Could this be a broken solder path on the cluster? I've added a ground lead from the back of the cluster. I've also added a secondary ground (2ga) from the power steering bolt to the body.
__________________
1983 300SD
1988 420SEL
Reply With Quote
  #30
Old 07-22-2013, 08:08 PM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,243
Quote:
Originally Posted by coolram62 View Post
This is on my '83 300SD. I have a similar problem with the warning lights - in particular the low fuel and alternator lights. With the key on all the lights go through self test. Wait for the glow plug light to go out and start - the low fuel and alt light come on really dim. I replaced the voltage regulator a few months back and I've rechecked voltage both static 12.3 VDC and 14.1 VDC once idle levels out. Could this be a broken solder path on the cluster? I've added a ground lead from the back of the cluster. I've also added a secondary ground (2ga) from the power steering bolt to the body.
A dimly lit alternator light could be a loose connection at the starter big terminal. Disconnect the battery before you try to clean and tighten that terminal.

__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
