I discovered Varnish for wood trim!! NOW WITH PHOTOS!

Wow guys.

Wow!

You need to do this. Made a massive change in appearance on my car's interior.

I decided to re-do the wood trim on my 1991 300d. The old plastic type cover was looking really lame. The plastic coating was cracked like most of them are had yellowed some, adding to how depressing it looked.

I read a few articles on how to take the plastic coating off, and re-do the trim. I hated to do the work, and it WAS a LOT of work, but I got it done, and the interior looks SOOOO much better.

If you want to do this, in short, you take off your wood console parts. I took off just 3 parts; the shifter panel, the ashtray, and console part above the radio.

Spray them with serious paint remover. I found the spray works better than brush on. Let it sit overnight. Gently scrape off what you can with a 5-in-1 scraper tool. Spray more paint remover on, come back much later or next day, do the same until everything is off.

When done, use this "wash" stuff they have to take off the paint remover and debris. One big issue was what color to stain the wood. I decided to leave what was on there, and just varnish over it. Someone recommended Epifanes Clear Gloss Spar Marine Varnish. There's other stuff at Home Depot that will yellow over time, either way you must have Spar which means it's made for outdoors and can contract/expand with temperature changes. I think the Epifanes does not; it costs 2x the stuff at Home Depots. I bought the Epifanes. I originally tried spray on from another company, it was a joke and waste of time.

I'd never put varnish on anything before. It really does leave a nice, glossy, glass-like finish. You brush it on thin, but not too thin; you need a bit so it can self-level. MAKE SURE you don't have any dust around where you're going to put this. I had it in my garage which is as dust-free as my house so long as I'm not stirring anything up. You can't help but to get some dust specks in it no matter where you put it. Sand lightly between each coat and wipe off with mineral spirits, put about 4 coats on. Each coat takes a day to dry.

Now when I get in my car, I'm much more proud than when looking at the old cracked wood. I did NOT do the trim pieces on the dash or on the doors. Since I left the original stain on, and even though my wood that I re-did is much lighter in color, it's actually ok. The light color reflects off the darker trim that was not redone, helping it look a bit lighter, and gets darker the further it gets away from the reflection.

I would recommend on your final coat, to put some varnish that you're going to use in a plastic cup, and put 5-10% of mineral spirits in it to thin it down a bit, so it dries smoother. Mine has a bit of rippling in it since the varnish is so thick and I have to figure out how to buff this out without scratching it. Once you scratch it with sandpaper, I was using 300 grit which is very fine, it turns it opaque. The guy at Epifanes was suggesting then a 2500 grit sandpaper. I'm also considering using some toothpaste on a rag in one area to see if that might get the ripples out.

For the photo of the shifter console, you can see it dried with ripples in it which is what I have to try to figure out how to buff out now. Even had I used a bit of mineral spirits to thin out the varnish, what we're working on is not a flat piece, so I don't know what would have happened, but I'm thinking a bit would have made it level out better; the varnish is fairly thick like honey.

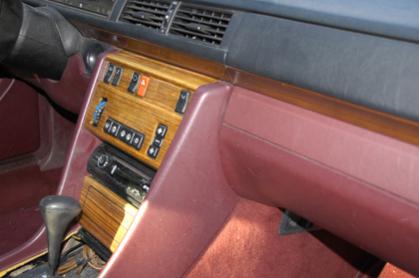

The 2nd photo, you can see the darker wood trim above the a/c control piece. I didn't redo that, too much hassle so I left it, but it looks sort of ok not being done, because the lighter wood that I did re-do, reflects and brightens the trim piece above it, then the trim gets slowly darker as it gets further away from the piece I did.

Attached Thumbnails
I "discovered" Varnish!!-_dsc5992.jpg   I "discovered" Varnish!!-_dsc5994.jpg

Last edited by jbach36; 07-29-2013 at 08:19 PM. Reason: Not enough readers. I changed title to draw more people in
Reply With Quote
  #2
Old 07-29-2013, 06:51 AM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 36,586
Sounds good! Congratulations and thanks for sharing your experience and info.
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #3
Old 07-29-2013, 03:45 PM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,332
Pics or it didnt happen.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1987 300D Sturmmachine
1991 300D Nearly Perfect
1994 E320 Cabriolet
1995 E320 Touring
2001 Eurovan FOR SALE
1985 300D car, sold and missed.
OBK #42
Reply With Quote
  #4
Old 07-29-2013, 06:11 PM
BodhiBenz1987's Avatar
Registered User

Join Date: Dec 2004
Location: East Coast
Posts: 3,005
Quote:
Originally Posted by jbach36 View Post
I would recommend on your final coat, to put some varnish that you're going to use in a plastic cup, and put 5-10% of mineral spirits in it to thin it down a bit, so it dries smoother. Mine has a bit of rippling in it since the varnish is so thick and I have to figure out how to buff this out without scratching it. Once you scratch it with sandpaper, I was using 300 grit which is very fine, it turns it opaque. The guy at Epifanes was suggesting then a 2500 grit sandpaper. I'm also considering using some toothpaste on a rag in one area to see if that might get the ripples out.
I completely forgot about the thinning aspect ... I should have mentioned that when I replied to your earlier ... sorry! Been a couple years and some of the details had slipped. With spraying (not sure about brushing) there is a thinning progression listed on the can, so the final couple of coats are slightly thinned, as you mention. The Epifanes guy probably knows best ... I would stick with something very fine for varnish, as it's soft. I have always been afraid to try color-sanding it, even though I really wanted to get the couple bits of dust out of it (they aren't very noticeable, but still).
Glad it turned out well despite the ripples! It is AMAZING how much nicely finished woodwork makes the inside of the car look good. Mine doesn't have a perfect interior, but it really looks sharp with the varnished wood. Post some pictures if you get a chance!
__________________
1987 300D, arctic white/palomino--314,000 miles
1978 240D 4-speed, Euro Delivery, light ivory/bamboo--370,000 miles
2005 Jeep Liberty CRD Limited, light khaki/slate--140,000 miles
2018 Chevy Cruze diesel, 6-speed manual, satin steel metallic/kalahari--19,000 miles
1982 Peugeot 505 diesel, 4-speed manual, blue/blue, 130,000 miles
1995 S320, black/parchment--34,000 miles (Dad's car)
Reply With Quote
  #5
Old 07-29-2013, 07:08 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
Use paste wax to remove the haze from sanding.
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #6
Old 07-29-2013, 07:50 PM
Registered User

Join Date: Jun 2006
Location: Southeast
Posts: 1,753
Do NOT use wax!

Quote:
Originally Posted by lorainfurniture View Post
Use paste wax to remove the haze from sanding.
Not sure what paste wax is, but it sounds like it has "wax" in it. The guy at epifanes told me to be careful about using anything with wax in it, as it does something bad to the finish, takes the UV coating out of it or something, I forget.
Reply With Quote
  #7
Old 07-29-2013, 08:06 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
Paste wax works well with polyurethanes. It's considered a standard way of finishing.

I assume you used something a bit different?
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #8
Old 07-29-2013, 08:21 PM
Registered User

Join Date: Jun 2006
Location: Southeast
Posts: 1,753
I haven't buffed it out yet at all

Quote:
Originally Posted by lorainfurniture View Post
Paste wax works well with polyurethanes. It's considered a standard way of finishing.

I assume you used something a bit different?
Does paste wax actually have wax in it? (Murphy's Oil soap doesn't have oil in it).

I was going to use toothpaste since it doesn't really 'scratch' a surface like sandpaper does. If I scratch it, it gets opaque.

Reply With Quote
